🗂 목차

● [Infra] Maria DB(MySQL) 이중화(Replication) 단방향 구성
● [Spring Boot][MariaDB] 이중화된 Data Base 초기 구성

🚀 단방향 이중화된 Maria DB Spring Boot에서 가지고 놀기

🔽 개요

📦 설명

이 전에 구성했던 개발 환경 Maria DB를 단방향 이중화 처리를 했고, 정상 작동하는 것까지 확인하였어요.
이제 구성을 완료했으니 본격적으로 사용하기 위해 설정하고 가지고 놀아보려고 해요. 😀

Data Base를 구성하고, WEB, WAS 등을 구성하고, Service를 Open하게 되면 이용자들은 쓰는 행위 즉, Write 보다 읽는 행위 즉, Read 행위를 더 많이 하게 됩니다.

출처 : https://www.oracle.com/kr/database/

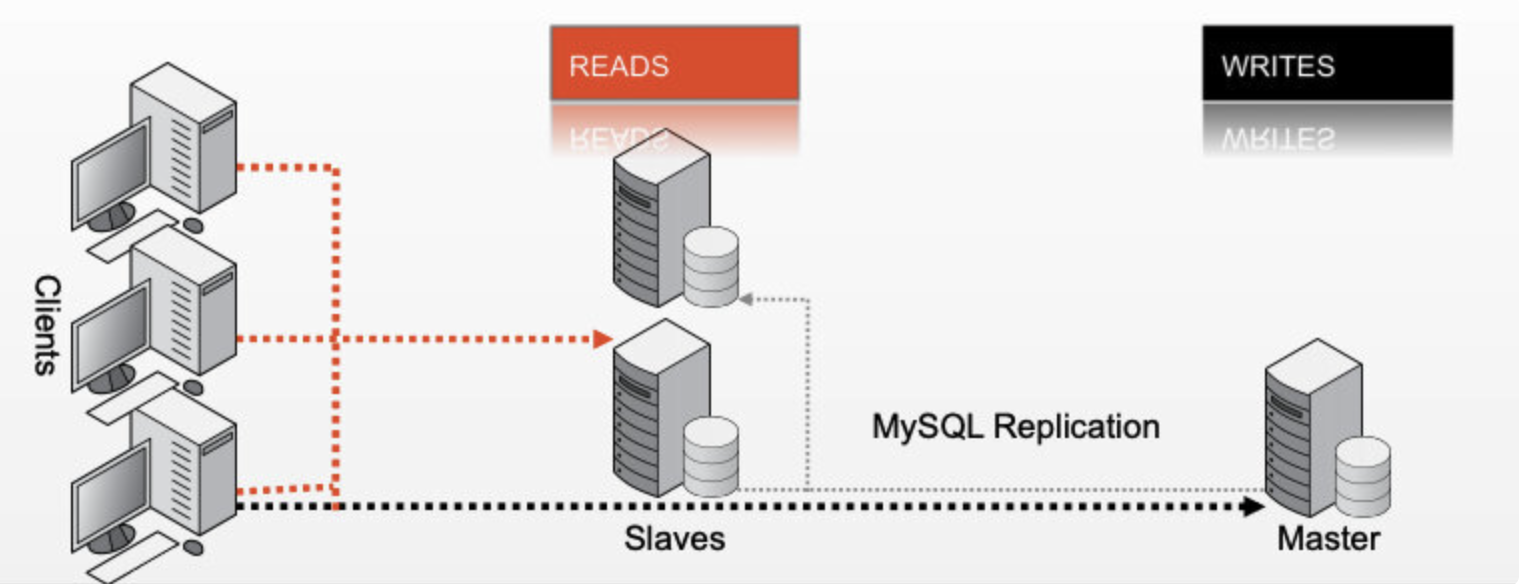

현업에서 Data Base 부하를 분산하기 위해 위와 같이 Master - Slave 혹은 Master - Master 형식으로 이중화를 하고 있어요.

이러한 구조를 가지고 있을 때, Transection의 속성이 readOnly = true일 경우 Slave Data Base에 Select Query를 던지게 설정해줘야 해요.

💡 참고 사항
Transection이란?

더 이상 쪼갤 수 없는 업무 처리의 최소 단위로 A가 B라는 사람에게 1,000원을 지급하고, B가 그 돈을 받은 경우, 이 거래 기록은 더 이상 작게 쪼갤 수 없는 하나의 트랜잭션을 구성한다고 본다.

만약 A는 돈을 지불했으나, B가 돈을 받지 못했다면 그 거래는 성립하지 않는다. 이처럼 A가 돈을 지불하는 행위와 B가 돈을 받는 행위는 별개로 분리될 수 없으며, 하나의 거래 내역으로 처리되어야 하는 단일 거래이며, 이 때, 이런 최소 단위를 트랜잭션이라 부른다.

트랜잭션 처리가 정상적으로 완료된 경우 커밋(Commit)하고, 오류가 발생할 경우 원래 상태대로 롤백(Rollback)한다.

트랜잭션은 DBMS에 여러개의 Client가 동시에 접근하거나, 응용 프로그램이 갱신 처리를 하는 과정에서 중단될 수 있는 경우 등 Data 부정합을 방지하고자 할 때 사용한다. Data Base 기능 중 트랜잭션을 조작하는 기능은 Data Base 완전성(Integrity) 유지를 확신하게 한다.

단일 트랜잭션은 Data Base 내에 읽거나, 쓰는 여러개 Query를 요구하게 되는데, 이 때, 중요한 것은 Data Base가 수행된 일 부 Query가 남지 않는다는 것이다.

예를 들어 송금을 할 때, 한 계좌에서 인출되면 다른 계좌에서 입금 확인 되는 것이 중요하다. 또한, 트랜잭션은 서로 간섭이 없어야 한다.
만약 Query 하나가 실패하면 Data Base는 전체 트랜잭션 또는 실패한 Query를 롤백한다. (DBMS의 사용법과 설정에 따라 상이) 트랜잭션은 커밋전 언제든지 수동으로 롤백될 수 있다.

즉, 트랜잭션은 Data Base의 상태를 변화시키기 위해 수행하는 작업의 단위이다.

주니하랑은 Spring Boot에 아래 내용에 대한 상황과 설정을 진행해보려 해요.

∙ @Transaction(readOnly = true) 인 경우 Slave DB 접근.
∙ @Transaction(readOnly = false) 인 경우 Master DB 접근.

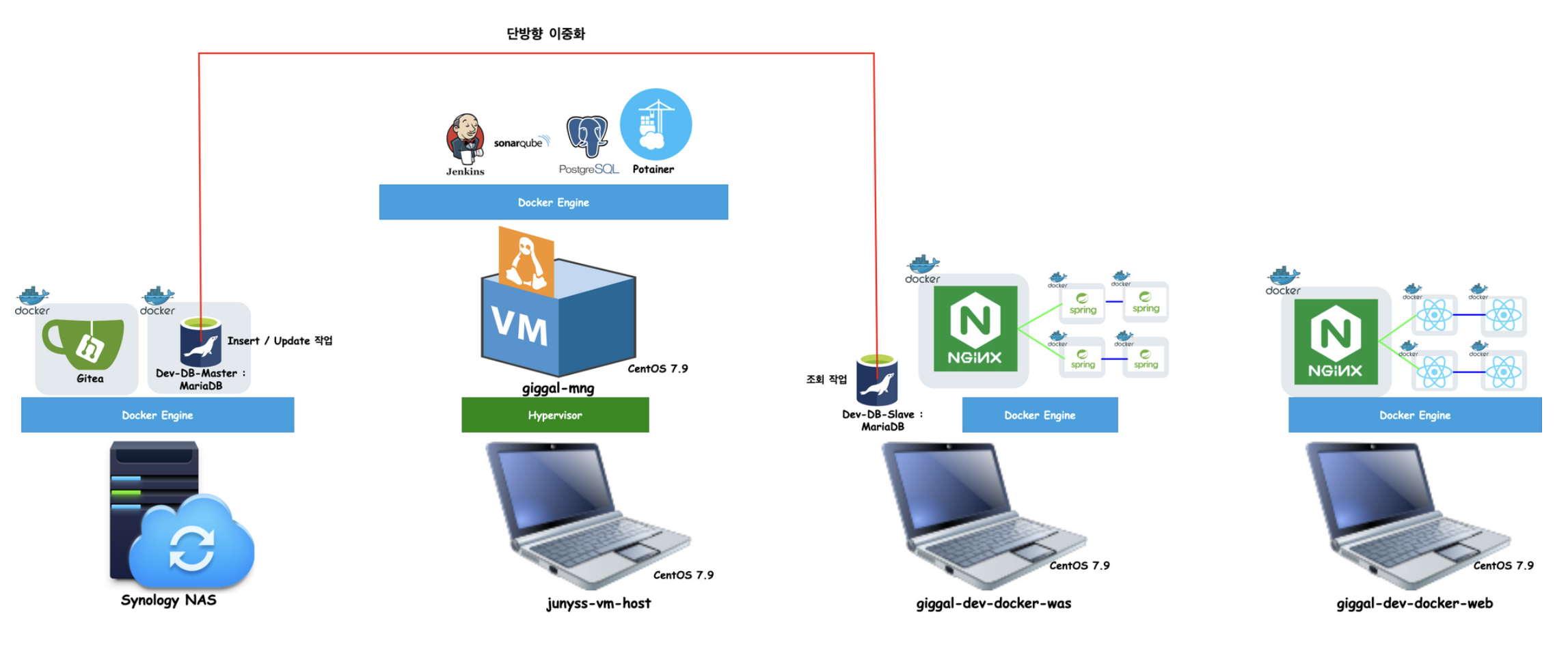

주니하랑은 아래와 같이 Data Base를 구성해 놓았어요.

위의 그림과 같이 Sysnology NAS Docker를 이용하여 Master DB인 Maria DB를 구성하고, WAS용으로 구성된 Laptop에 Docker를 이용하지 않고, 직접 Slave DB인 Maria DB를 구성하였어요.

🔽 Project 만들기

📦 Project 생성

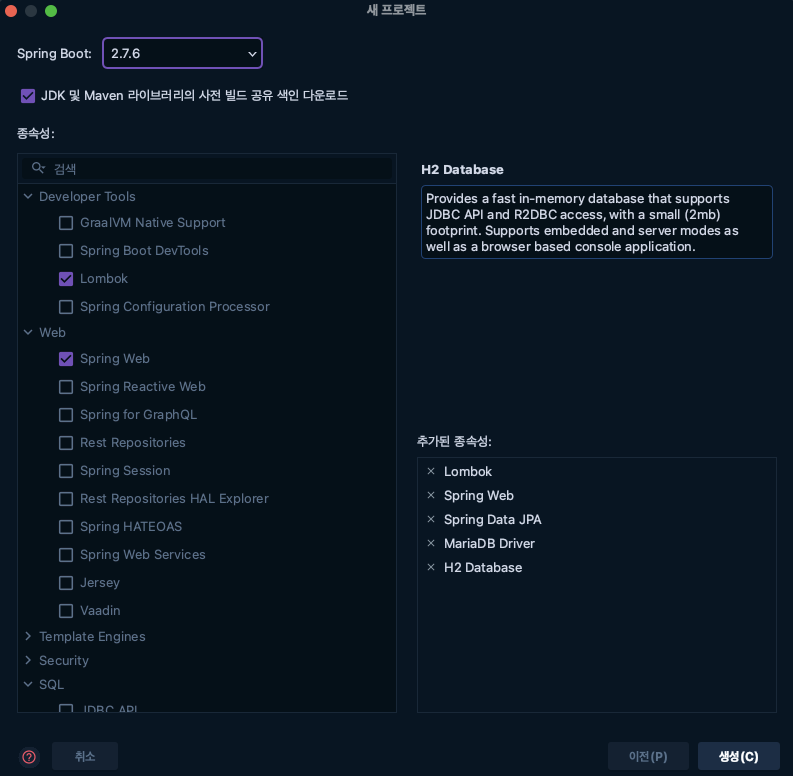

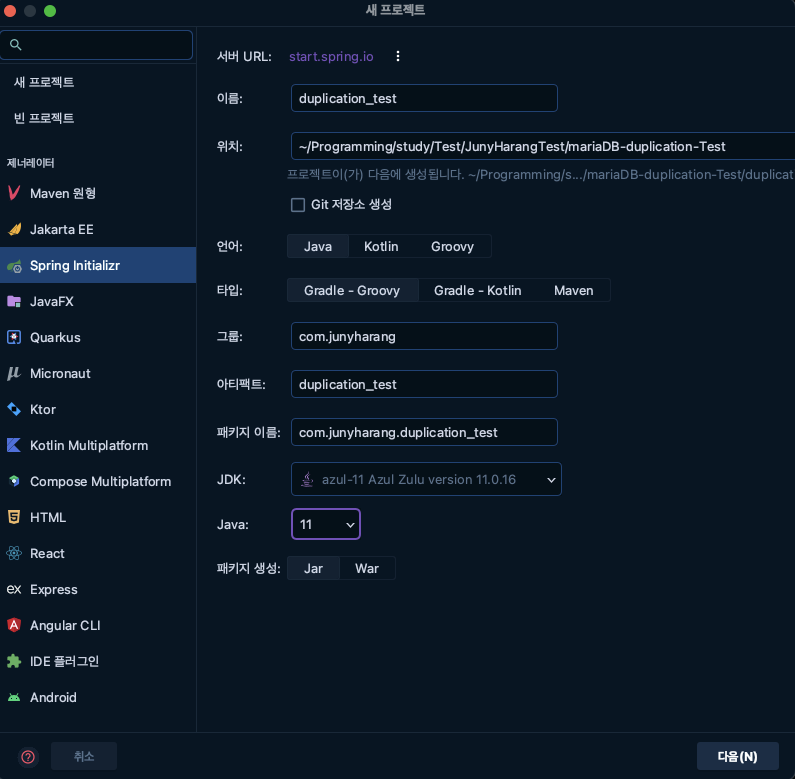

주니하랑은 InteliJ Ultimate Version을 사용하고 있어서 아래와 같이 Project를 만들어 줄거에요.

위와 같이 Test를 위해 필요한 의존성을 구성해 줄 거에요.

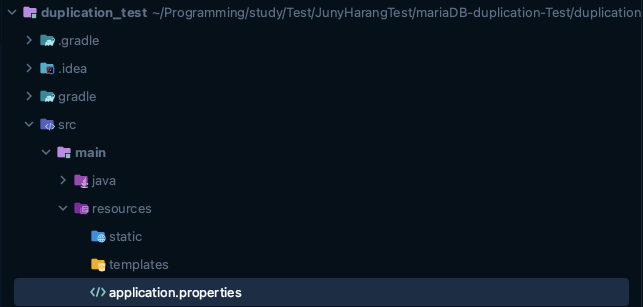

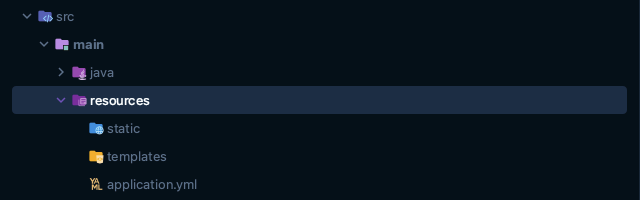

최초 application.properties를 application.yml로 바꿔줄게요.

🔽 설정

📦 Data Base 설정

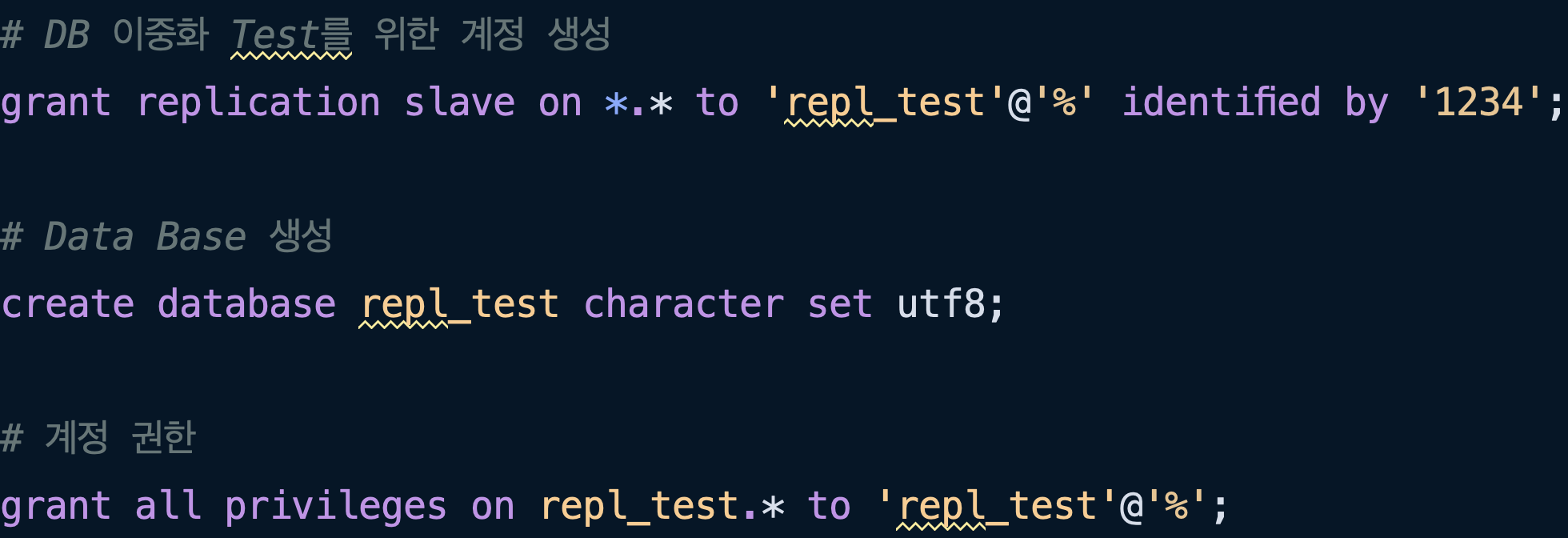

최초 Test를 위하여 Master DBMS에서 DB를 생성하고,
계정도 만들어주고, 해당 계정에 Table 권한도 위와 같이 넣어주었어요.

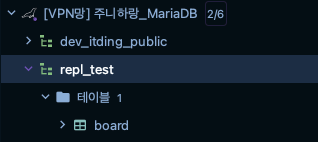

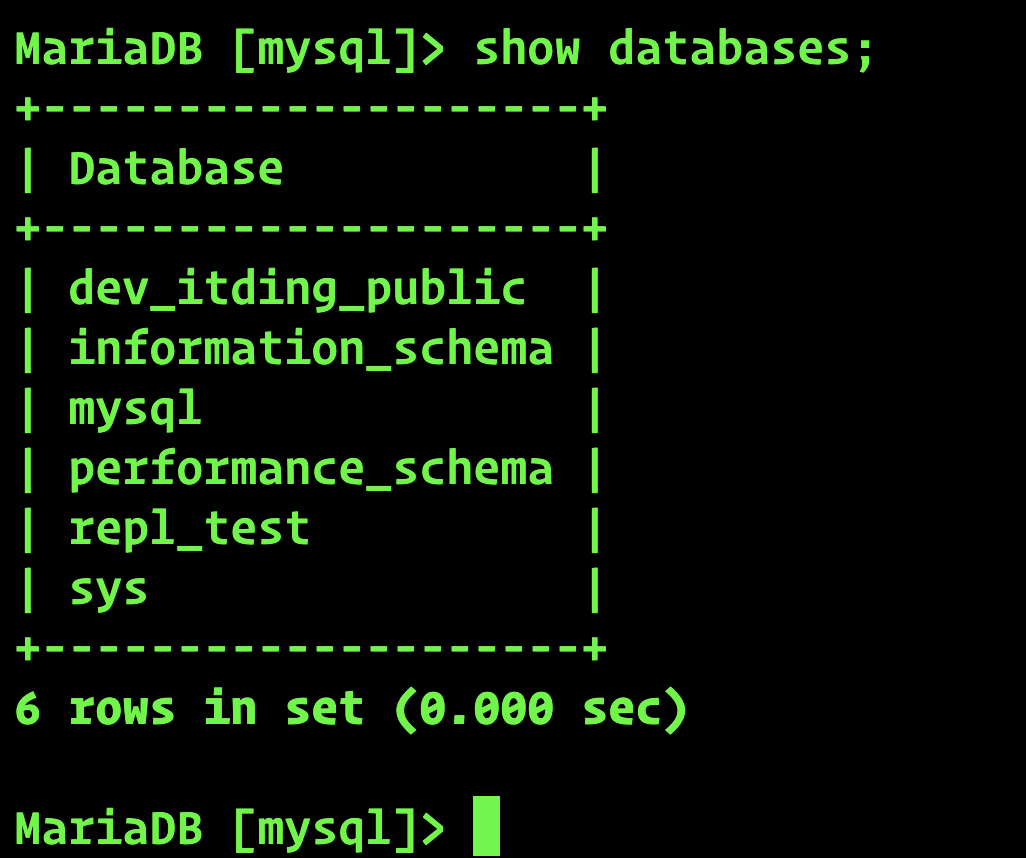

Slave에도 위와 같이 repl_test DB가 생긴걸 확인할 수 있어요.

📦 application.yml

본격적으로 Spring Boot에 Data Base 설정을 해줄게요.

사실 주니하랑은 Local에서는 H2 DB를 이용하고, Dev 환경에서는 이중화한 MariaDB를 쓰고 싶었지만,
아래에서 설정하는 DataSource 설정에 이중화가 되지 않은 H2를 적용할 수가 없었어요.

만약 이렇게 구성하는 방법을 아신다면 댓글 부탁드립니다.

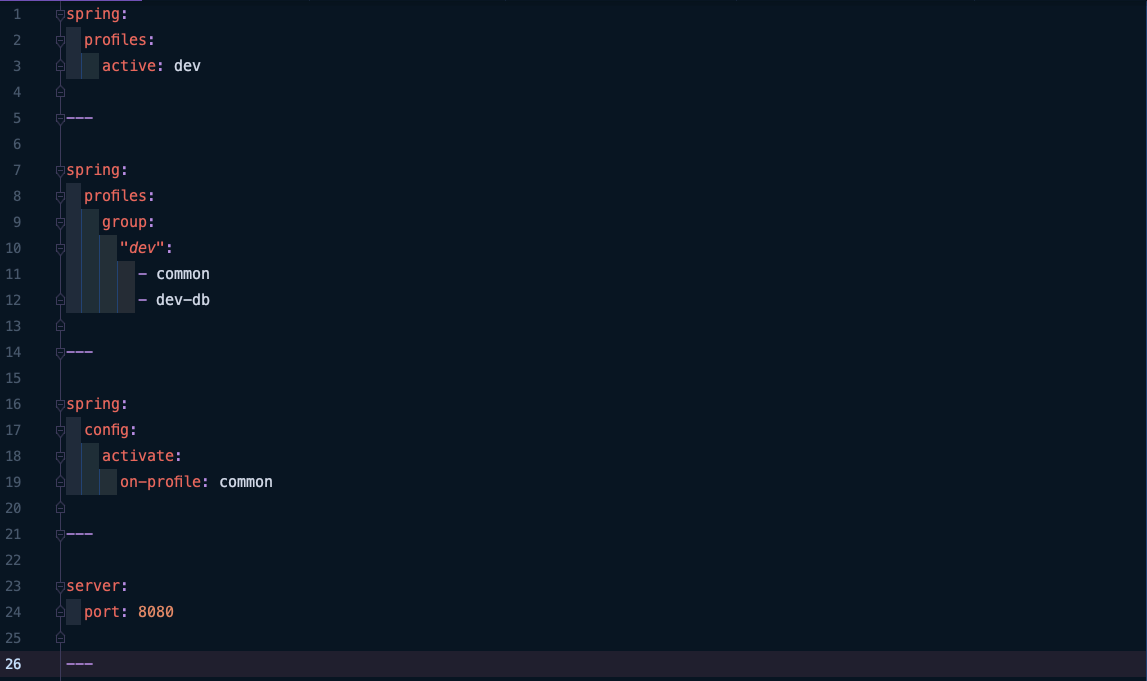

최초 위와 같이 Local 환경, 개발 환경을 구분하도록 하였고,
컬 환경은 H2 DB를 이용하여 사용할 것이라 위와 같이 설정을 해 주었어요.

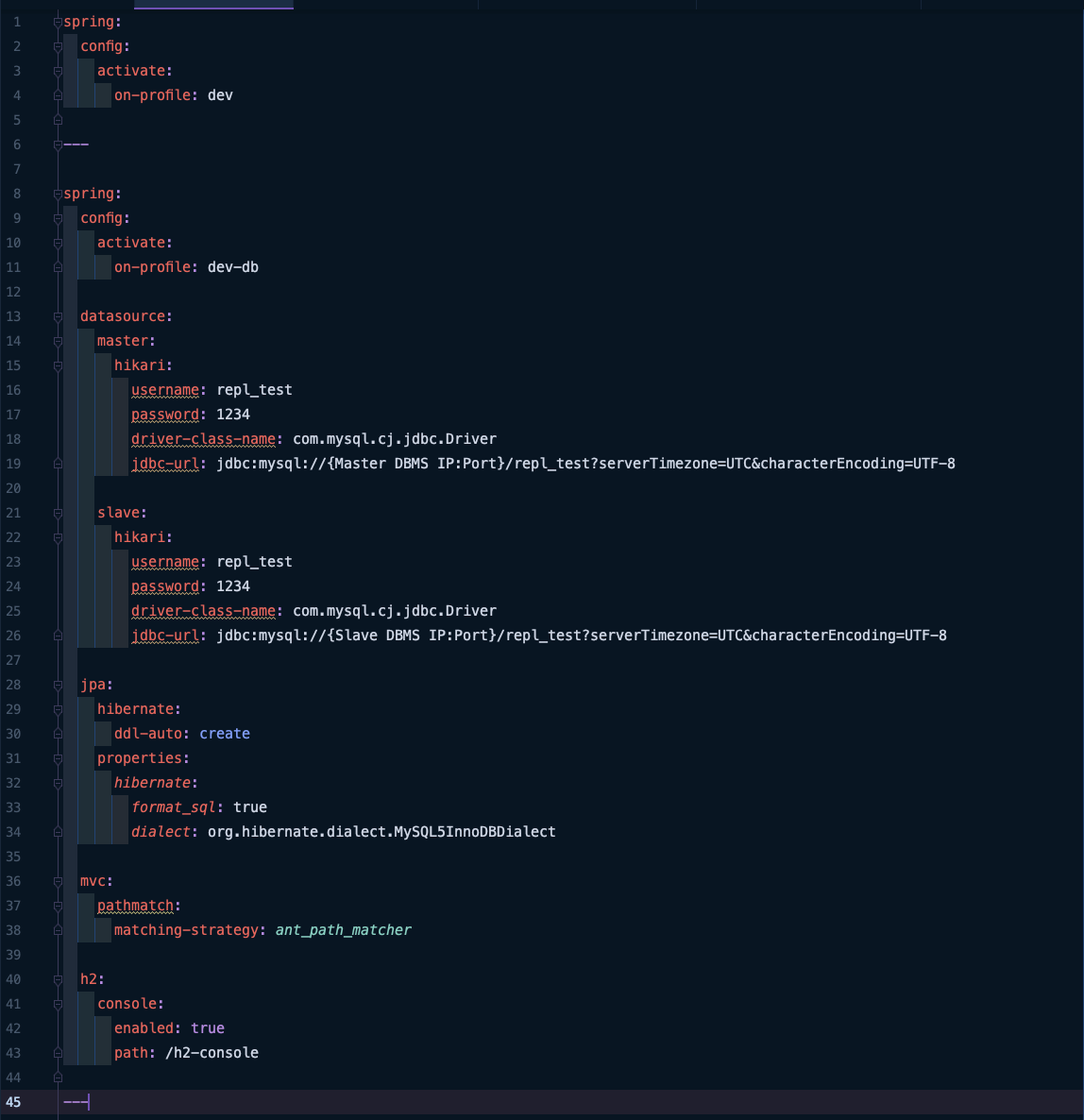

그런 뒤 개발 환경의 Data Base 환경 구성을 위해 application-dev.yml을 만들어 주었어요.

위와 같이 개발 환경에서 사용할 Master와 Slave DBMS 설정을 해 주었어요.

Master와 Slave DBMS 두개를 이용하기 때문에 Datasource를 직접 생성해 주어야해요.

🔽 Class 생성

📦 Config Code 작성

이번에는 위에서 설정한 내용을 가지고, readOnly 속성 별로 분기를 하기 전 DataSource를 Bean으로 등록하는 코드를 작성해 줄게요.

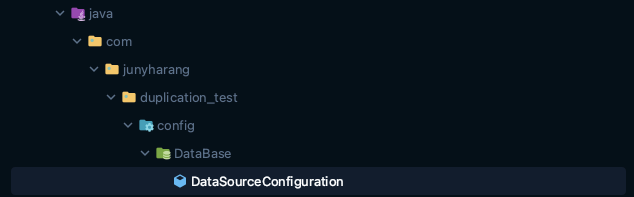

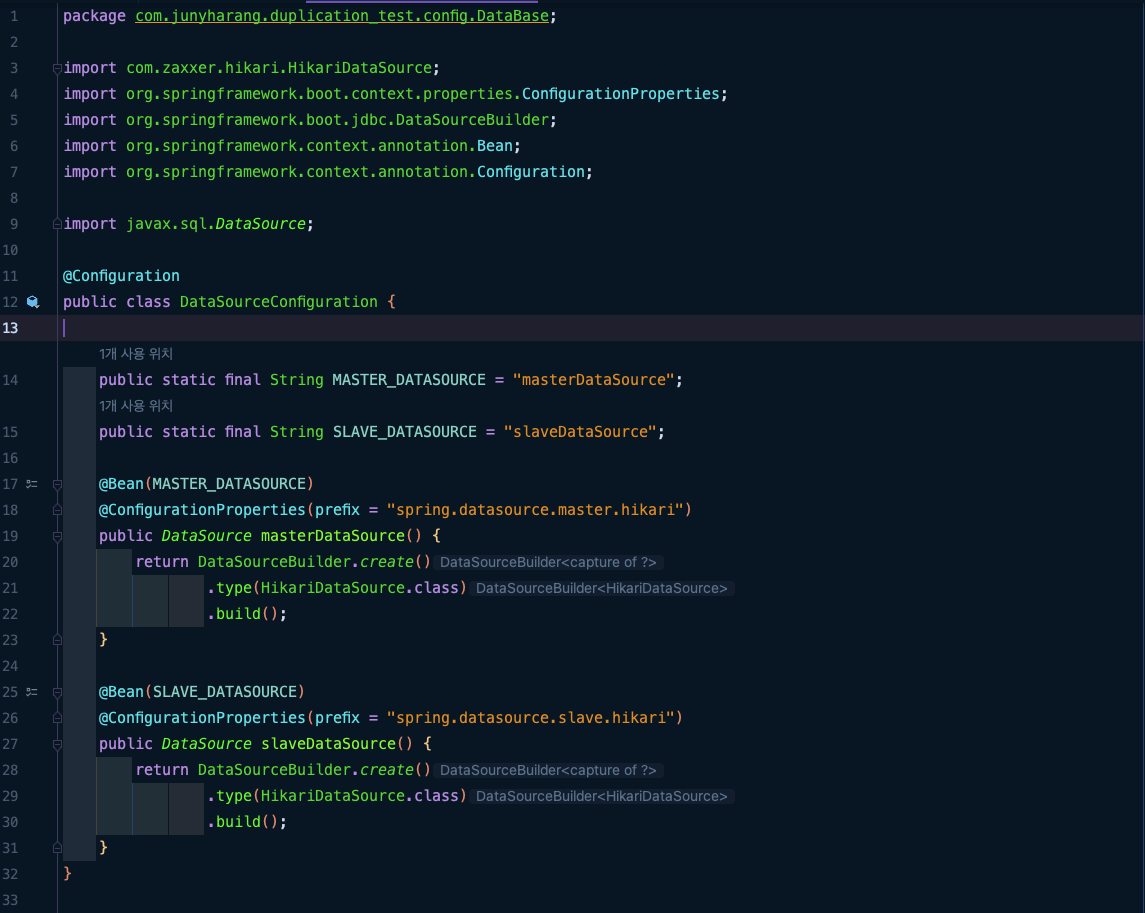

해당 Bean Class를 작성하기 위해 위와 같이 Package와 Class를 생성해 주었어요.

위에서 application-dev.yml에 설정한 Data Base 설정 내용을 가져오기 위해
18번째 줄과 26번째 줄에 해당 값을 가져오도록 해 주었어요.

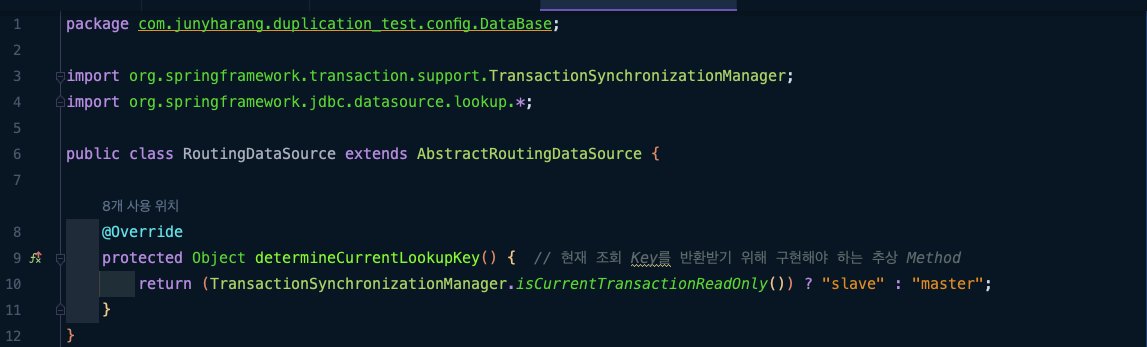

AbstractRoutingDataSource 만들기

AbstractRoutingDataSource.class는 조회 Key 기반으로 등록된 DataSource 중 하나를 호출하게 해 주는 친구에요.

현재 조회 키를 반환받기 위해 추상 Method를 구현하여 주었어요.
이를 통해 readOnly 속성을 구별하여 Key를 반환하게 해준답니다.

즉, determineCurrentLookupKey()는 Logic에 따라 내부 구현이 바뀌게 되는데, URL Pattern에 따른 분기, Enum을 이용하여 넘어오는 Enum 값에 따른 DataSource 선택, Session에서 Key 값을 통한 분기 등이 가능해요.

하지만, 위와 같이 설정만 하면 문제를 만나게 될 것이에요.
Spring에 있는 AbstractRoutingDataSource는 여러개의 DataSource를 하나로 묶고, 자동으로 분기 처리를 해주는 Spring Default Class에요.

아마 위와 같이 DB 이중화를 하게 되면 구현하여 Spring의 현재 트랜잭션 속성을 읽어오는 TransactionSynchronizationManager와 조합하여 분기 처리를 하려 설정을 해 주었지만, 이렇게 하게 되면 TransactionSynchronizationManager가 비록 @Transactional로 선언된 현재 쓰레드의 트랜잭션 상태를 읽어노는게 가능하더라도 동기화(Syncronation) 시점과 Connection 객체를 가져오는 시점에 문제가 발생하기 때문이에요.

💡 참고 사항
Spring에서의 @Transactional 처리 방식

1. TransactionManager 선별
2. DataSource에서 Connection 획득
3. Transaction 동기화

위의 참고 사항에서 보면 트랜잭션 동기화를 마친 뒤 ReplicationRoutingDataSource에서 Connection을 획득해야만 정상 동작을 할텐데, 이 순서가 뒤 바뀌어 있다는 것이 문제에요.

이 문제로 인해서 AbstractRoutingDataSource을 이용할 경우 모든 Query가 Master DBMS로 가는 현상을 발견할 수 있을거에요.

이 문제를 해결하기 위해서는 ReplicationRoutingDataSource를 LazyConnectionDataSourceProxy로 감싸주어서 처리를 하면 되요.

LazyConnectionDataSourceProxy는 실질적인 Query 실행 여부와 상관없이 트랜잭션이 걸리면 무조건 Connection 객체를 확보하는 Spring 단점을 부완하여 트랜잭션 시작시 Connection Proxy 객체를 반환하고, 실제 Query 발생 시에 DataSource에서 getConnection()을 호출하는 역할을 해준답니다.

💡 참고 사항
LazyConnectionDataSourceProxy을 사용했을 때, 처리 방식

1. TransactionManager 선별
2. LazyConnectionDataSourceProxy에서 Connection Proxy 객체 획득
3. Transaction 동기화
4. 실제 Query Call 할 때, ReplicationRoutingDataSource.getConection() / determineCurrentLookupKey() Call

위의 순서와 같이 Spring의 트랜잭션과 알맞는 ReplicationRoutingDataSource가 만들어지게 된답니다.

위와 같은 이유로 Transaction 동기화 시점에 Connection 획득을 위해 LazyConnectionDataSourceProxy로 한번 감싸주어야 하는 작업이 필요해요.

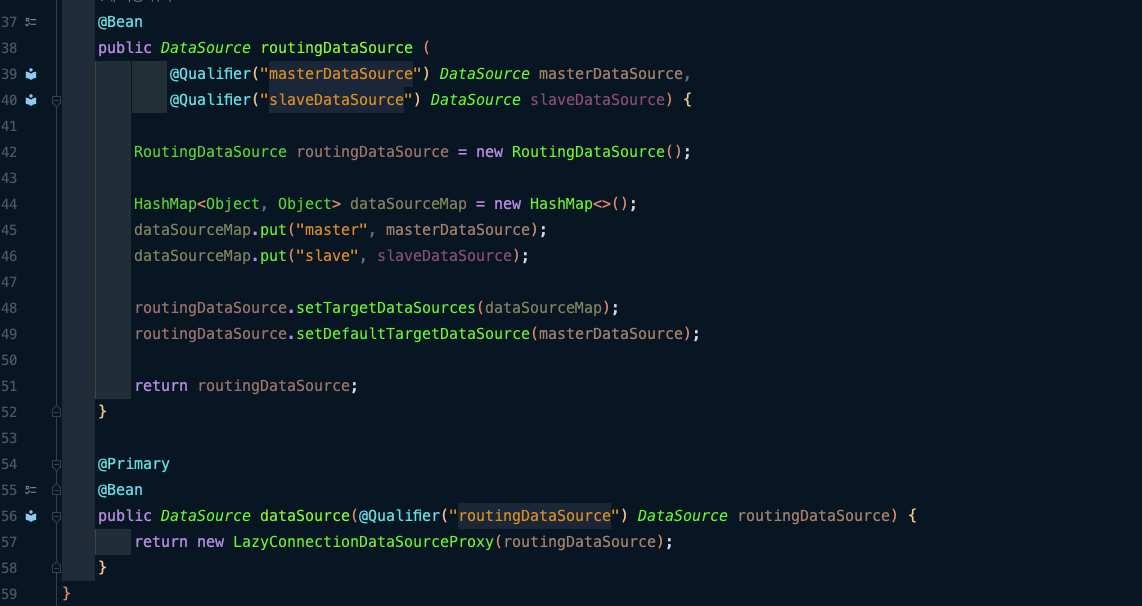

DataSourceConfiguration 내용 추가

위에서 만들었던 DataSourceConfiguration에 위의 내용을 추가해 주었어요.

이를 통해 DataSource Bean을 생성하는 Configuration Class로 일반적인 DataSource가 아닌 RoutingDataSource를 생성하여 반환하게 해 주었어요.

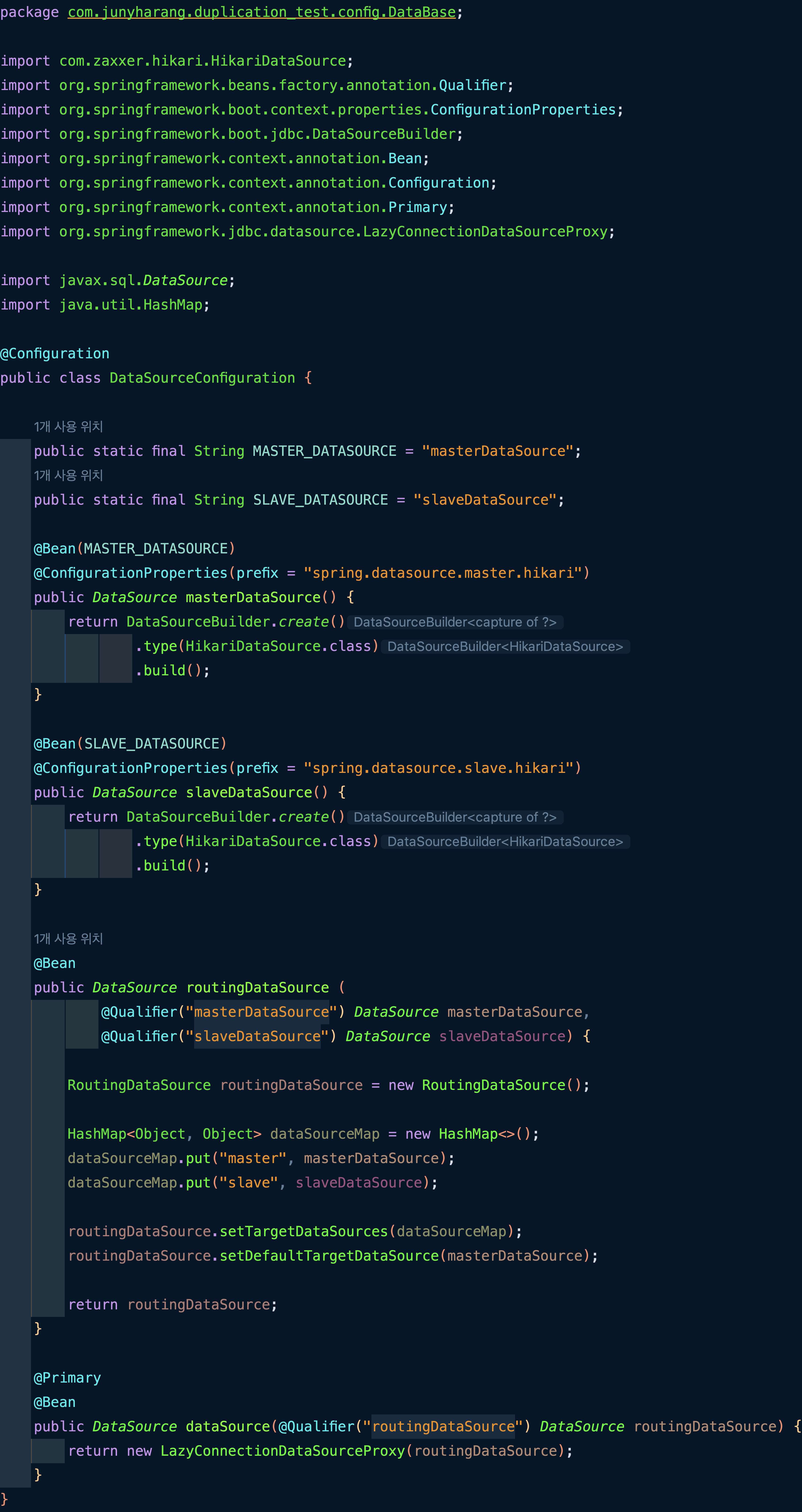

전체 Source Code를 보면 위와 같이 작성을 해 주었어요.

최초 @ConfigurationProperties를 통해 application.properties나, application.yml에 master, slave로 나눈 값들을 가지고 와서 각각의 MasterDataSource, SlaveDataSource를 생성하고, Bean으로 등록해 줍니다.

반환되는 RoutingDataSource는 여러 개(Master, Slave) DataSource 객체를 Key, Value 형태로 담고, determineCurrentLookupKey()를 통해 반환되는 Key 값과 일치하는 DataSource 객체를 반환하게 해주었어요.

그런 뒤 RoutingDataSource는 최종적으로 LazyConnectionDataSourceProxy에 쌇여 반환되게 된답니다.

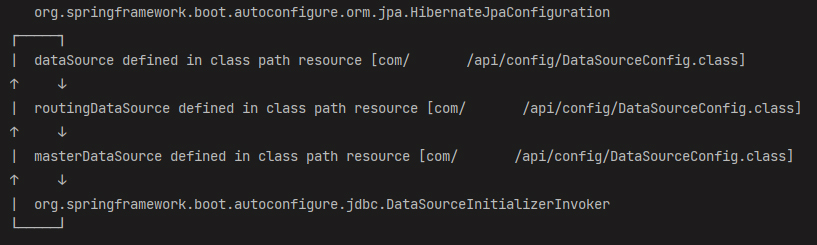

하지만, 여기까지만 또 설정하게 되면 아래와 같이 종속성 순환 문제를 겪게 될 것이에요.

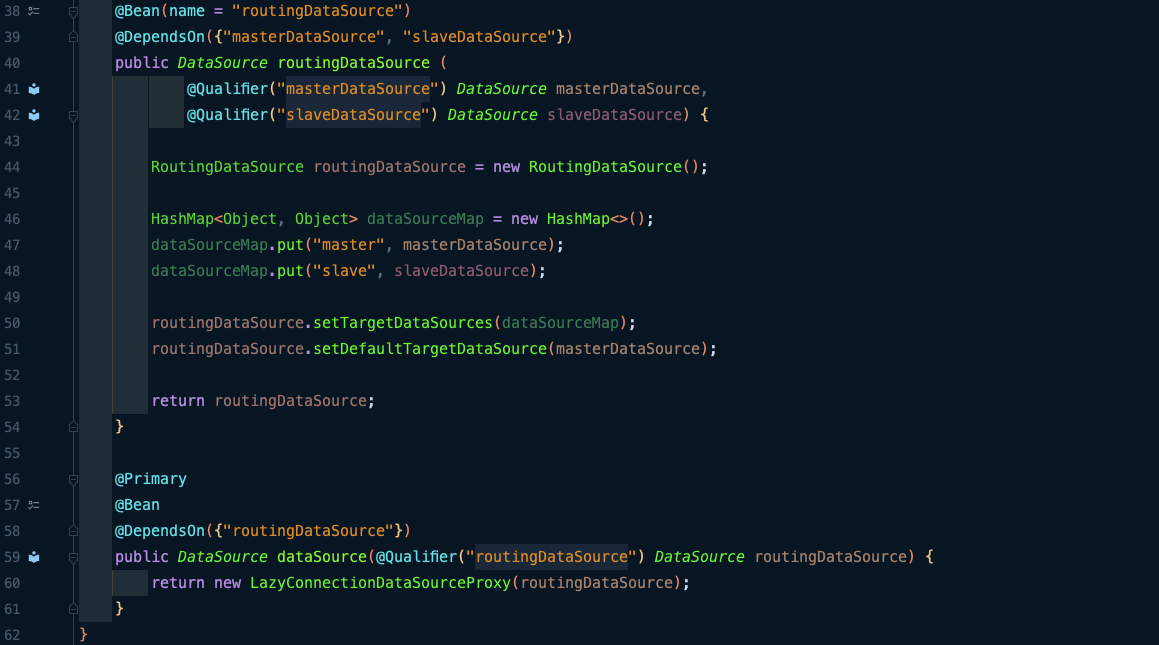

이 문제를 해결하기 위한 첫번째 방법으로는 @DependsOn을 통해 Bean의 초기화 순서를 수동으로 지정해 주는 것이에요.

위와 같이 수정을 해 주면 된답니다.

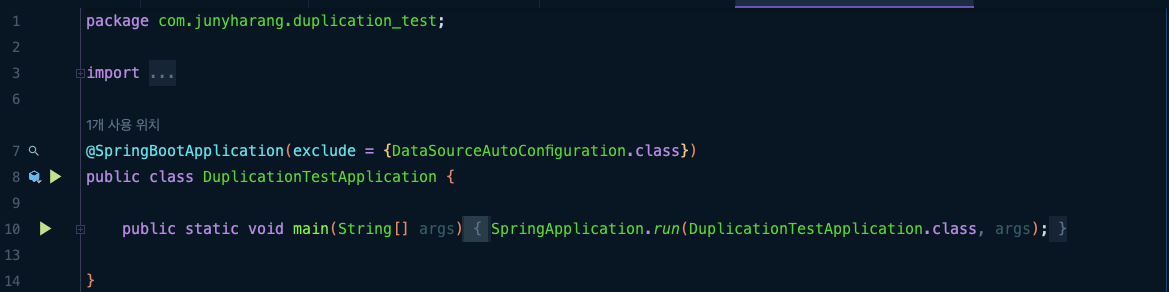

두번째 방법은 main()이 있는 Class에서 @SpringBootApplication에
DataSourceAutoConfiguration.class를 비활성화(Exclude) 시켜주는 방법이에요.

이렇게도 해결할 수 있어요.

/Users/junyss/Library/Java/JavaVirtualMachines/azul-11.0.16/Contents/Home/bin/java -agentlib:jdwp=transport=dt_socket,address=127.0.0.1:55113,suspend=y,server=n -XX:TieredStopAtLevel=1 -noverify -Dspring.profiles.active=dev -Dspring.output.ansi.enabled=always -Dcom.sun.management.jmxremote -Dspring.jmx.enabled=true -Dspring.liveBeansView.mbeanDomain -Dspring.application.admin.enabled=true -javaagent:/Users/junyss/Library/Caches/JetBrains/IntelliJIdea2022.2/captureAgent/debugger-agent.jar -Dfile.encoding=UTF-8 -classpath /Users/junyss/Programming/study/Test/JunyHarangTest/mariaDB-duplication-Test/duplication_test/build/classes/java/main:/Users/junyss/Programming/study/Test/JunyHarangTest/mariaDB-duplication-Test/duplication_test/build/resources/main:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.projectlombok/lombok/1.18.24/13a394eed5c4f9efb2a6d956e2086f1d81e857d9/lombok-1.18.24.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework.boot/spring-boot-starter-data-jpa/2.7.6/7eef599012347f2fb7f84ba71eba10caf094dfb5/spring-boot-starter-data-jpa-2.7.6.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework.boot/spring-boot-starter-web/2.7.6/9d0166a0390df593243bdc798ca7a1db20ddea9c/spring-boot-starter-web-2.7.6.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.springfox/springfox-boot-starter/3.0.0/5486365e263f8acca014b97efa50c3419d58e8f6/springfox-boot-starter-3.0.0.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework.boot/spring-boot-starter-aop/2.7.6/23061de1832242610092f212f99d49b9a4955a9d/spring-boot-starter-aop-2.7.6.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework.boot/spring-boot-starter-jdbc/2.7.6/9db6def4ba06a11b67f0de3eac83441d00350dd6/spring-boot-starter-jdbc-2.7.6.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/jakarta.transaction/jakarta.transaction-api/1.3.3/c4179d48720a1e87202115fbed6089bdc4195405/jakarta.transaction-api-1.3.3.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/jakarta.persistence/jakarta.persistence-api/2.2.3/8f6ea5daedc614f07a3654a455660145286f024e/jakarta.persistence-api-2.2.3.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.hibernate/hibernate-core/5.6.14.Final/71e407089b71ed7c6e99385fd851c308fed7be44/hibernate-core-5.6.14.Final.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework.data/spring-data-jpa/2.7.6/8d0414f5cca5e31509943cd5f97cacdddd7c7384/spring-data-jpa-2.7.6.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework/spring-aspects/5.3.24/e97d36c3e516d3dd0579437428b6e26902da0c88/spring-aspects-5.3.24.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework.boot/spring-boot-starter-json/2.7.6/77017e2aa78224c3fa10444d659c2ce8765b910/spring-boot-starter-json-2.7.6.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework.boot/spring-boot-starter/2.7.6/d15341c0fc0b1d1362ce6c737b34679ad1f836c/spring-boot-starter-2.7.6.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework.boot/spring-boot-starter-tomcat/2.7.6/ec920cd7f951f3cff3a0b7af80bb8f7116a3d8a5/spring-boot-starter-tomcat-2.7.6.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework/spring-webmvc/5.3.24/33d2187c2bf1cb2c222bd1cc18b618736babcf3d/spring-webmvc-5.3.24.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework/spring-web/5.3.24/d89bbcaabb1ff247a089875cbc4211bfe96c9a59/spring-web-5.3.24.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.springfox/springfox-oas/3.0.0/e7bc9c1319cf1b64ae714a249c3db3b8fe01e42b/springfox-oas-3.0.0.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.springfox/springfox-data-rest/3.0.0/40f5e834d6696ae1d3212fa5a2d5e1ec406bedc0/springfox-data-rest-3.0.0.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.springfox/springfox-bean-validators/3.0.0/80c646fdebe5f2b2b337a5a686e540fee0b7304f/springfox-bean-validators-3.0.0.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.springfox/springfox-swagger2/3.0.0/7bcb18d496576eff76ef7bb72684e149cbb75c1d/springfox-swagger2-3.0.0.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.springfox/springfox-swagger-ui/3.0.0/1e665fbe22148f7c36fa8a08e515a0047cd4390b/springfox-swagger-ui-3.0.0.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/com.fasterxml/classmate/1.5.1/3fe0bed568c62df5e89f4f174c101eab25345b6c/classmate-1.5.1.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework.plugin/spring-plugin-metadata/2.0.0.RELEASE/6fb3a1fc0f05dc826687b7686ad8a5960ecdd57c/spring-plugin-metadata-2.0.0.RELEASE.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework.plugin/spring-plugin-core/2.0.0.RELEASE/95fc8c13037630f4aba9c51141f535becec00fe6/spring-plugin-core-2.0.0.RELEASE.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.slf4j/slf4j-api/1.7.36/6c62681a2f655b49963a5983b8b0950a6120ae14/slf4j-api-1.7.36.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework/spring-aop/5.3.24/efd01bc1048a2e1b6a7442fbd78170bc02c342b7/spring-aop-5.3.24.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.aspectj/aspectjweaver/1.9.7/158f5c255cd3e4408e795b79f7c3fbae9b53b7ca/aspectjweaver-1.9.7.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/com.zaxxer/HikariCP/4.0.3/107cbdf0db6780a065f895ae9d8fbf3bb0e1c21f/HikariCP-4.0.3.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework/spring-jdbc/5.3.24/909c19ab470a59b9fd23177d26b8e880733b15d4/spring-jdbc-5.3.24.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.hibernate.common/hibernate-commons-annotations/5.1.2.Final/e59ffdbc6ad09eeb33507b39ffcf287679a498c8/hibernate-commons-annotations-5.1.2.Final.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.jboss.logging/jboss-logging/3.4.3.Final/c4bd7e12a745c0e7f6cf98c45cdcdf482fd827ea/jboss-logging-3.4.3.Final.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/net.bytebuddy/byte-buddy/1.12.19/178d26e6a95e50502ae16673e08269797f8b254a/byte-buddy-1.12.19.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/antlr/antlr/2.7.7/83cd2cd674a217ade95a4bb83a8a14f351f48bd0/antlr-2.7.7.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.jboss/jandex/2.4.2.Final/1e1c385990b258ff1a24c801e84aebbacf70eb39/jandex-2.4.2.Final.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.glassfish.jaxb/jaxb-runtime/2.3.7/ebcde6a44159eb9e3db721dfe6b45f26e6272341/jaxb-runtime-2.3.7.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework.data/spring-data-commons/2.7.6/e3d15a8f4d5ef0d2323569445c66903d0188cb68/spring-data-commons-2.7.6.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework/spring-context/5.3.24/e48634d7b8f40d4d0fe978830be0247bfc2ff2cd/spring-context-5.3.24.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework/spring-orm/5.3.24/256e029c2d8200294fe7fb5352ca2d1d7310dcad/spring-orm-5.3.24.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework/spring-tx/5.3.24/175a2157fce17669af6d4db1d094cb4baaa5c8fd/spring-tx-5.3.24.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework/spring-beans/5.3.24/e487ea6de09b9a7c36548028feeafa511a593532/spring-beans-5.3.24.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework/spring-core/5.3.24/d095c329f30baf2b6d44eccbd2352d7a2f840c72/spring-core-5.3.24.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/com.fasterxml.jackson.datatype/jackson-datatype-jsr310/2.13.4/e6d820112871f33cd94a1dcc54eef58874753b5/jackson-datatype-jsr310-2.13.4.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/com.fasterxml.jackson.module/jackson-module-parameter-names/2.13.4/858ccf6624b5fac6044813e845063edb6a62cf37/jackson-module-parameter-names-2.13.4.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/com.fasterxml.jackson.datatype/jackson-datatype-jdk8/2.13.4/557dbba5d8dfc7b7f944c58fe084109afcb5670b/jackson-datatype-jdk8-2.13.4.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/com.fasterxml.jackson.core/jackson-databind/2.13.4.2/325c06bdfeb628cfb80ebaaf1a26cc1eb558a585/jackson-databind-2.13.4.2.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework.boot/spring-boot-starter-logging/2.7.6/33a2d9e08d33a6a6f8051ed38daac14046e2f97c/spring-boot-starter-logging-2.7.6.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework.boot/spring-boot-autoconfigure/2.7.6/4ad7e89accd25c69bfe84f52202deaf09430be2/spring-boot-autoconfigure-2.7.6.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework.boot/spring-boot/2.7.6/f96f89eba708a591704db5dcbfc03e8822a503aa/spring-boot-2.7.6.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/jakarta.annotation/jakarta.annotation-api/1.3.5/59eb84ee0d616332ff44aba065f3888cf002cd2d/jakarta.annotation-api-1.3.5.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.yaml/snakeyaml/1.30/8fde7fe2586328ac3c68db92045e1c8759125000/snakeyaml-1.30.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.apache.tomcat.embed/tomcat-embed-websocket/9.0.69/c5da77c17a667b4e7a6bb01fb3b28c46c2717123/tomcat-embed-websocket-9.0.69.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.apache.tomcat.embed/tomcat-embed-core/9.0.69/27f2530eba96238aca56593bbd98edfdb038d9ef/tomcat-embed-core-9.0.69.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.apache.tomcat.embed/tomcat-embed-el/9.0.69/9c89a289c35b9ec20bdfb692a22dab87256bbe67/tomcat-embed-el-9.0.69.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework/spring-expression/5.3.24/ae7410418e7b4bd27a01e3fb1c2fed35b2bc1e84/spring-expression-5.3.24.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.springfox/springfox-swagger-common/3.0.0/2e2fae840984cfcabfd50e1b4b1c23422135ba12/springfox-swagger-common-3.0.0.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.springfox/springfox-spring-webmvc/3.0.0/7ed22363fdfd651cd811c0b2391f16bddb91db8b/springfox-spring-webmvc-3.0.0.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.springfox/springfox-spring-web/3.0.0/a76f2fbe805bfd2798e20dc8f2cfbfad554d52da/springfox-spring-web-3.0.0.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.springfox/springfox-schema/3.0.0/32c5d6965617830ef6480fadb9030008945bcd9c/springfox-schema-3.0.0.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.springfox/springfox-spi/3.0.0/bae0b820d4b5a922063d34a42aaf4f763308b828/springfox-spi-3.0.0.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.springfox/springfox-core/3.0.0/7c3367ce577c8acd9bf64c74488c9269253516c9/springfox-core-3.0.0.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.springfox/springfox-spring-webflux/3.0.0/efccbcfe1d23f2ba520bd87cc156bf2b81f3568e/springfox-spring-webflux-3.0.0.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.swagger.core.v3/swagger-models/2.1.2/e7edeed6456a16d707542c003af03a594ecafe3a/swagger-models-2.1.2.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.swagger.core.v3/swagger-annotations/2.1.2/d407a33aa71444802c640080eb4d5f499b027f96/swagger-annotations-2.1.2.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.swagger/swagger-models/1.5.20/fb3a23bad80c5ed84db9dd150db2cba699531458/swagger-models-1.5.20.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.swagger/swagger-annotations/1.5.20/16051f93ce11ca489a5313775d825f82fcc2cd6c/swagger-annotations-1.5.20.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/jakarta.xml.bind/jakarta.xml.bind-api/2.3.3/48e3b9cfc10752fba3521d6511f4165bea951801/jakarta.xml.bind-api-2.3.3.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.glassfish.jaxb/txw2/2.3.7/55cddcac1945150e09b09b0f89d86799652eee82/txw2-2.3.7.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/com.sun.istack/istack-commons-runtime/3.0.12/cbbe1a62b0cc6c85972e99d52aaee350153dc530/istack-commons-runtime-3.0.12.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework/spring-jcl/5.3.24/2b30878663ceed2af07238dc54e92e5bf001438d/spring-jcl-5.3.24.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/com.fasterxml.jackson.core/jackson-annotations/2.13.4/858c6cc78e1f08a885b1613e1d817c829df70a6e/jackson-annotations-2.13.4.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/com.fasterxml.jackson.core/jackson-core/2.13.4/cf934c681294b97ef6d80082faeefbe1edadf56/jackson-core-2.13.4.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/ch.qos.logback/logback-classic/1.2.11/4741689214e9d1e8408b206506cbe76d1c6a7d60/logback-classic-1.2.11.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.apache.logging.log4j/log4j-to-slf4j/2.17.2/17dd0fae2747d9a28c67bc9534108823d2376b46/log4j-to-slf4j-2.17.2.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.slf4j/jul-to-slf4j/1.7.36/ed46d81cef9c412a88caef405b58f93a678ff2ca/jul-to-slf4j-1.7.36.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.github.classgraph/classgraph/4.8.83/7be289f451cedf9e35ed97caba3953226b4e6d9/classgraph-4.8.83.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/ch.qos.logback/logback-core/1.2.11/a01230df5ca5c34540cdaa3ad5efb012f1f1f792/logback-core-1.2.11.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.apache.logging.log4j/log4j-api/2.17.2/f42d6afa111b4dec5d2aea0fe2197240749a4ea6/log4j-api-2.17.2.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/com.h2database/h2/2.1.214/d5c2005c9e3279201e12d4776c948578b16bf8b2/h2-2.1.214.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.mariadb.jdbc/mariadb-java-client/3.0.9/8ebaa10da718ca9893e3c45e21951105cd6bfafb/mariadb-java-client-3.0.9.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/com.mysql/mysql-connector-j/8.0.31/3fd5850719d7e82d50705d34cc6a0037fab5731f/mysql-connector-j-8.0.31.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.mapstruct/mapstruct/1.3.1.Final/6ab184bbc7a7029738277a244e4c535fcdc3f558/mapstruct-1.3.1.Final.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/com.sun.activation/jakarta.activation/1.2.2/74548703f9851017ce2f556066659438019e7eb5/jakarta.activation-1.2.2.jar:/Users/junyss/Library/Application Support/JetBrains/Toolbox/apps/IDEA-U/ch-0/222.4459.24/IntelliJ IDEA.app/Contents/lib/idea_rt.jar com.junyharang.duplication_test.DuplicationTestApplication
대상 VM에 연결되었습니다, 주소: '127.0.0.1:55113', 전송: '소켓'

  .   ____          _            __ _ _
 /\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
 \\/  ___)| |_)| | | | | || (_| |  ) ) ) )
  '  |____| .__|_| |_|_| |_\__, | / / / /
 =========|_|==============|___/=/_/_/_/
 :: Spring Boot ::                (v2.7.6)

2022-11-30 19:13:24.230  INFO 7762 --- [           main] c.j.d.DuplicationTestApplication         : Starting DuplicationTestApplication using Java 11.0.16 on juniui-MacBookPro.local with PID 7762 (/Users/junyss/Programming/study/Test/JunyHarangTest/mariaDB-duplication-Test/duplication_test/build/classes/java/main started by junyss in /Users/junyss/Programming/study/Test/JunyHarangTest/mariaDB-duplication-Test/duplication_test)
2022-11-30 19:13:24.231  INFO 7762 --- [           main] c.j.d.DuplicationTestApplication         : The following 3 profiles are active: "dev", "common", "dev-db"
2022-11-30 19:13:24.609  INFO 7762 --- [           main] .s.d.r.c.RepositoryConfigurationDelegate : Bootstrapping Spring Data JPA repositories in DEFAULT mode.
2022-11-30 19:13:24.616  INFO 7762 --- [           main] .s.d.r.c.RepositoryConfigurationDelegate : Finished Spring Data repository scanning in 3 ms. Found 0 JPA repository interfaces.
2022-11-30 19:13:24.900  INFO 7762 --- [           main] o.s.b.w.embedded.tomcat.TomcatWebServer  : Tomcat initialized with port(s): 8081 (http)
2022-11-30 19:13:24.905  INFO 7762 --- [           main] o.apache.catalina.core.StandardService   : Starting service [Tomcat]
2022-11-30 19:13:24.905  INFO 7762 --- [           main] org.apache.catalina.core.StandardEngine  : Starting Servlet engine: [Apache Tomcat/9.0.69]
2022-11-30 19:13:24.972  INFO 7762 --- [           main] o.a.c.c.C.[Tomcat].[localhost].[/]       : Initializing Spring embedded WebApplicationContext
2022-11-30 19:13:24.973  INFO 7762 --- [           main] w.s.c.ServletWebServerApplicationContext : Root WebApplicationContext: initialization completed in 722 ms
2022-11-30 19:13:24.994  INFO 7762 --- [           main] com.zaxxer.hikari.HikariDataSource       : HikariPool-1 - Starting...
2022-11-30 19:13:25.083  INFO 7762 --- [           main] com.zaxxer.hikari.HikariDataSource       : HikariPool-1 - Start completed.
2022-11-30 19:13:25.090 ERROR 7762 --- [           main] com.zaxxer.hikari.HikariConfig           : HikariPool-2 - dataSource or dataSourceClassName or jdbcUrl is required.
2022-11-30 19:13:25.092  INFO 7762 --- [           main] com.zaxxer.hikari.HikariDataSource       : HikariPool-3 - Starting...
2022-11-30 19:13:25.804  INFO 7762 --- [           main] com.zaxxer.hikari.HikariDataSource       : HikariPool-3 - Start completed.
2022-11-30 19:13:25.812  INFO 7762 --- [           main] o.s.b.a.h2.H2ConsoleAutoConfiguration    : H2 console available at '/h2-console'. Databases available at 'jdbc:mysql://{Master DBMS IP:PORT}/repl_test?serverTimezone=UTC&characterEncoding=UTF-8', 'jdbc:mysql://{Slave DBMS IP:PORT}/repl_test?serverTimezone=UTC&characterEncoding=UTF-8', 'jdbc:mysql://{Master DBMS IP:PORT}/repl_test?serverTimezone=UTC&characterEncoding=UTF-8', 'jdbc:mysql://{Master DBMS IP:PORT}/repl_test?serverTimezone=UTC&characterEncoding=UTF-8'
2022-11-30 19:13:25.907  INFO 7762 --- [           main] o.hibernate.jpa.internal.util.LogHelper  : HHH000204: Processing PersistenceUnitInfo [name: default]
2022-11-30 19:13:25.927  INFO 7762 --- [           main] org.hibernate.Version                    : HHH000412: Hibernate ORM core version 5.6.14.Final
2022-11-30 19:13:25.985  INFO 7762 --- [           main] o.hibernate.annotations.common.Version   : HCANN000001: Hibernate Commons Annotations {5.1.2.Final}
2022-11-30 19:13:26.029  INFO 7762 --- [           main] org.hibernate.dialect.Dialect            : HHH000400: Using dialect: org.hibernate.dialect.MySQL5InnoDBDialect
2022-11-30 19:13:26.106  INFO 7762 --- [           main] o.h.e.t.j.p.i.JtaPlatformInitiator       : HHH000490: Using JtaPlatform implementation: [org.hibernate.engine.transaction.jta.platform.internal.NoJtaPlatform]
2022-11-30 19:13:26.111  INFO 7762 --- [           main] j.LocalContainerEntityManagerFactoryBean : Initialized JPA EntityManagerFactory for persistence unit 'default'
2022-11-30 19:13:26.198  WARN 7762 --- [           main] JpaBaseConfiguration$JpaWebConfiguration : spring.jpa.open-in-view is enabled by default. Therefore, database queries may be performed during view rendering. Explicitly configure spring.jpa.open-in-view to disable this warning
2022-11-30 19:13:26.444  INFO 7762 --- [           main] o.s.b.w.embedded.tomcat.TomcatWebServer  : Tomcat started on port(s): 8081 (http) with context path ''
2022-11-30 19:13:26.538  INFO 7762 --- [           main] c.j.d.DuplicationTestApplication         : Started DuplicationTestApplication in 2.552 seconds (JVM running for 2.939)

위와 같이 정상적으로 작동하는 것을 확인했어요.

그럼 간단한 Test Code를 작성해서 본격적으로 잘 작동하는지 확인해볼게요.

🔽 검증

📦 정상 작동 여부 확인

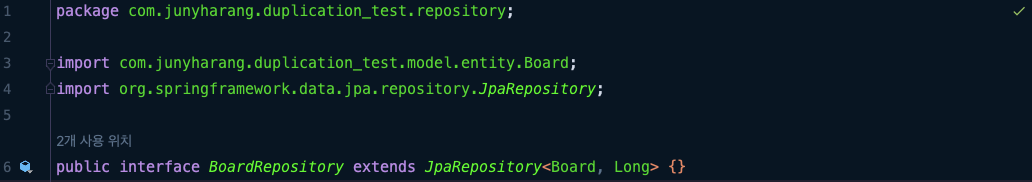

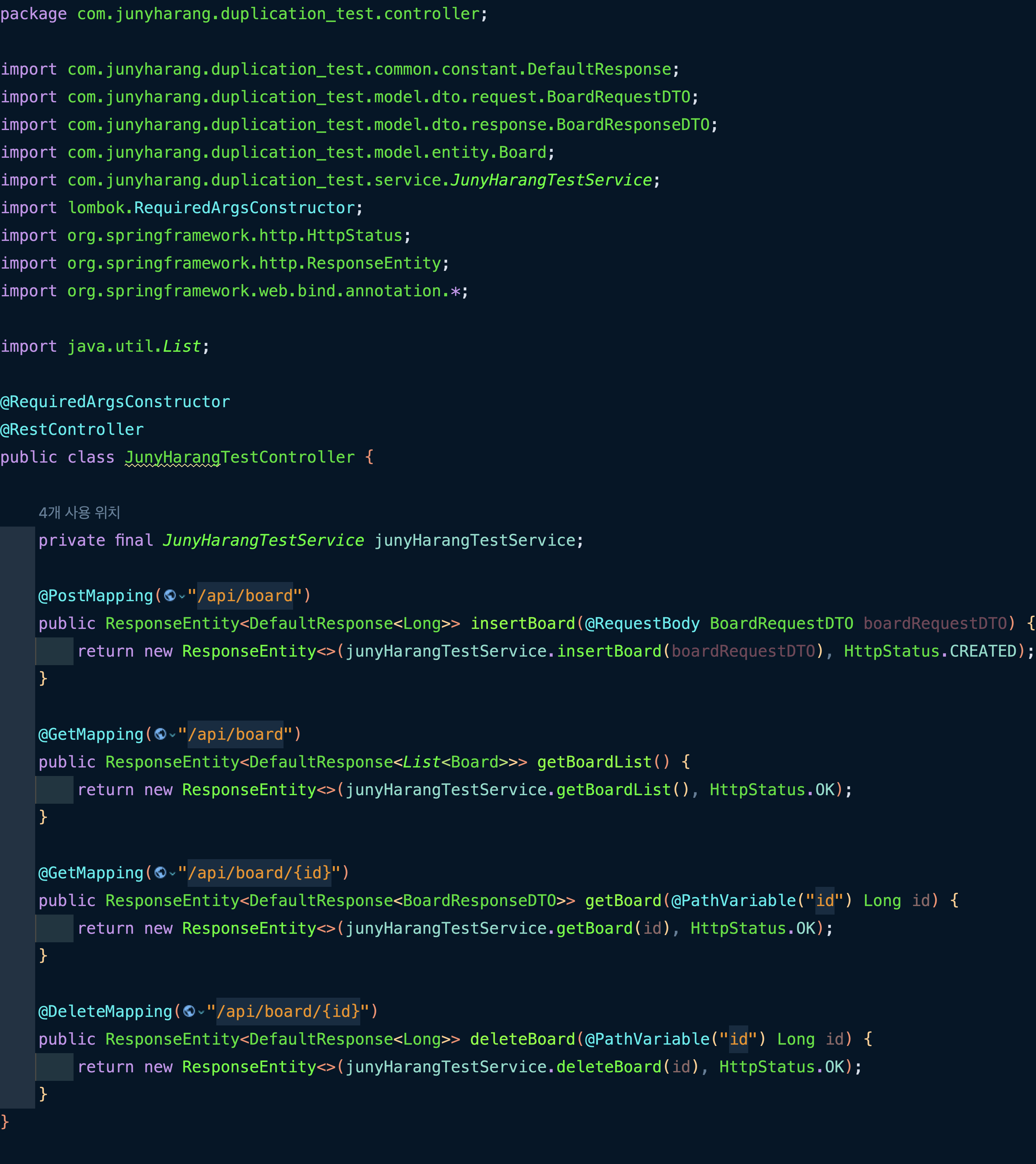

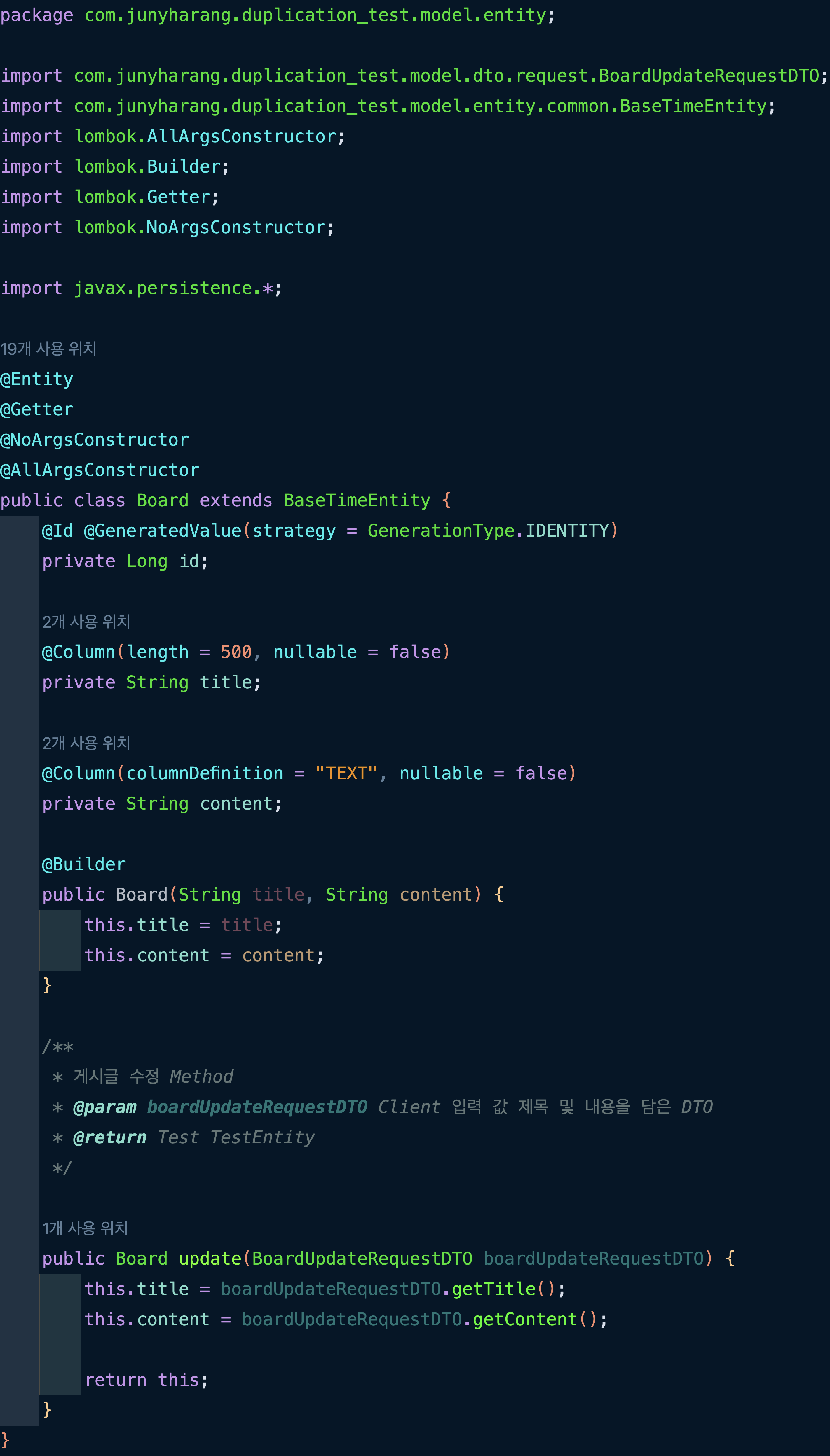

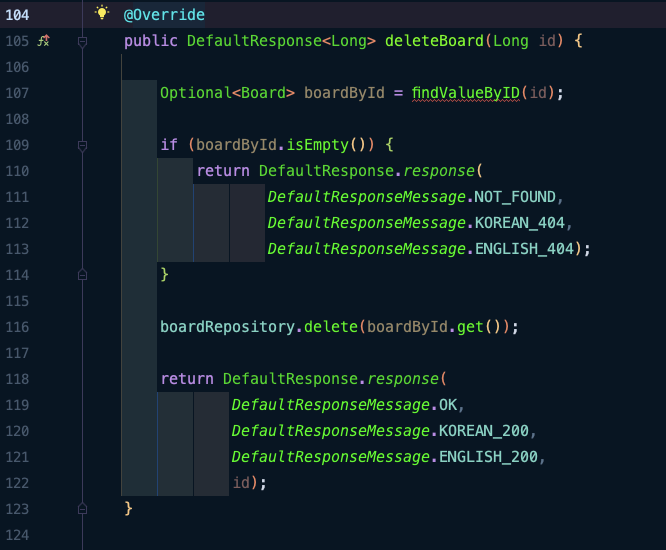

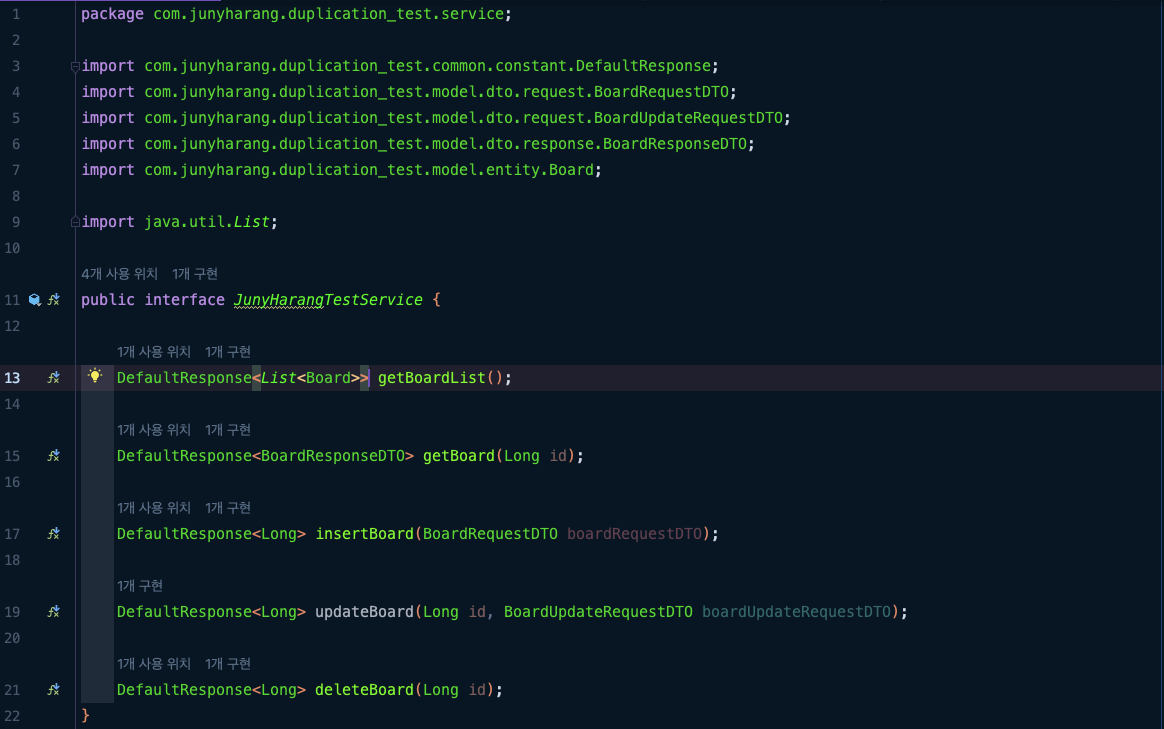

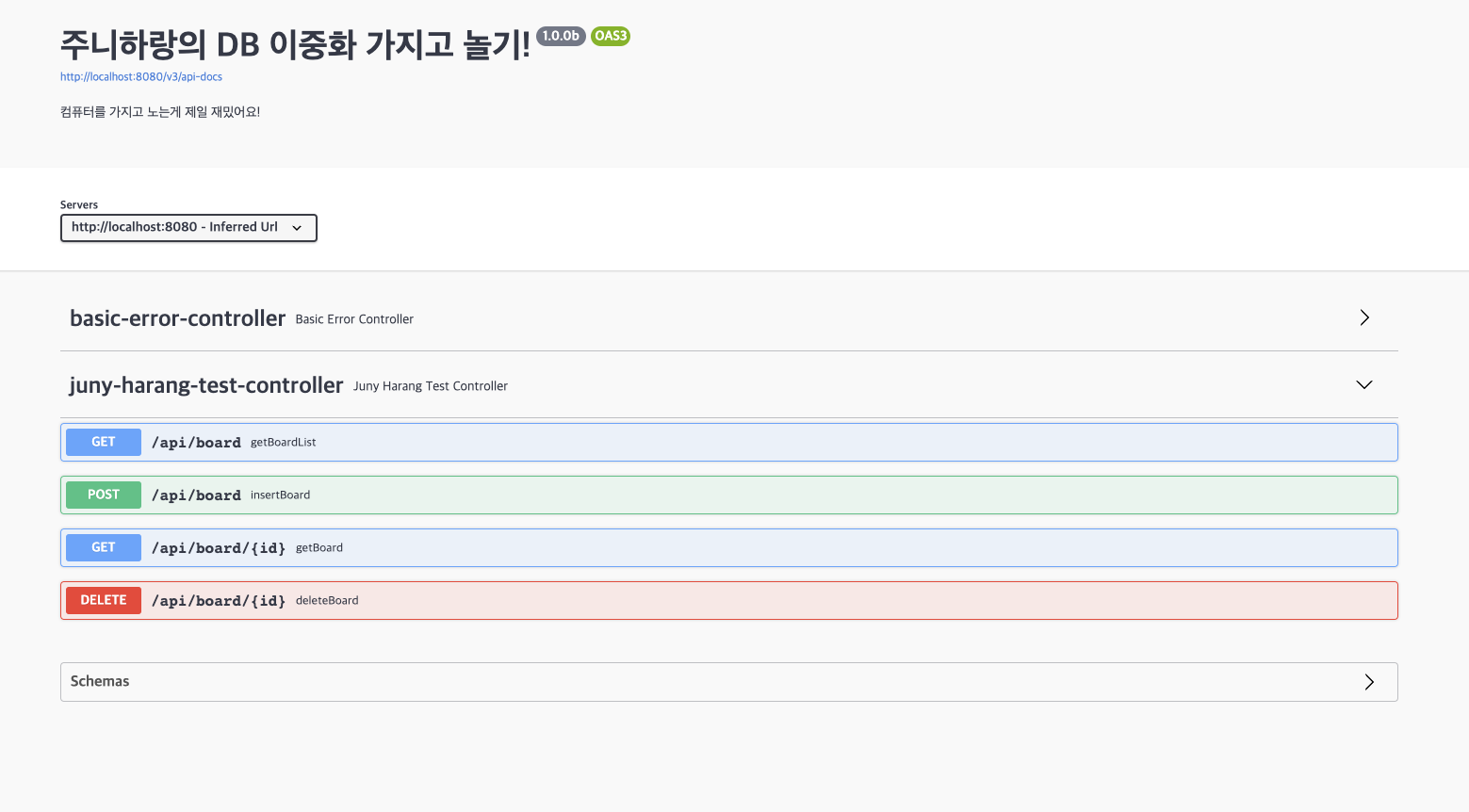

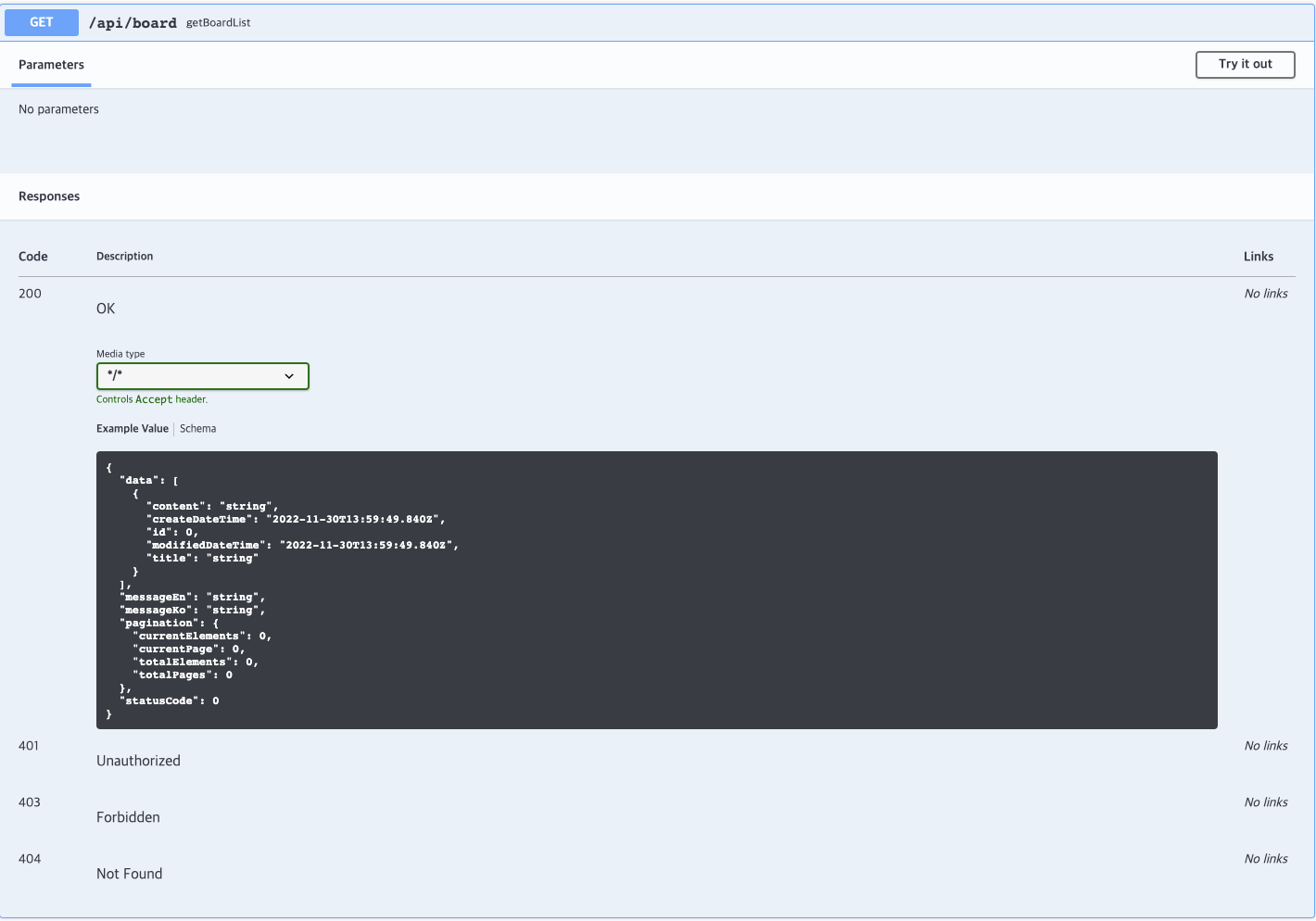

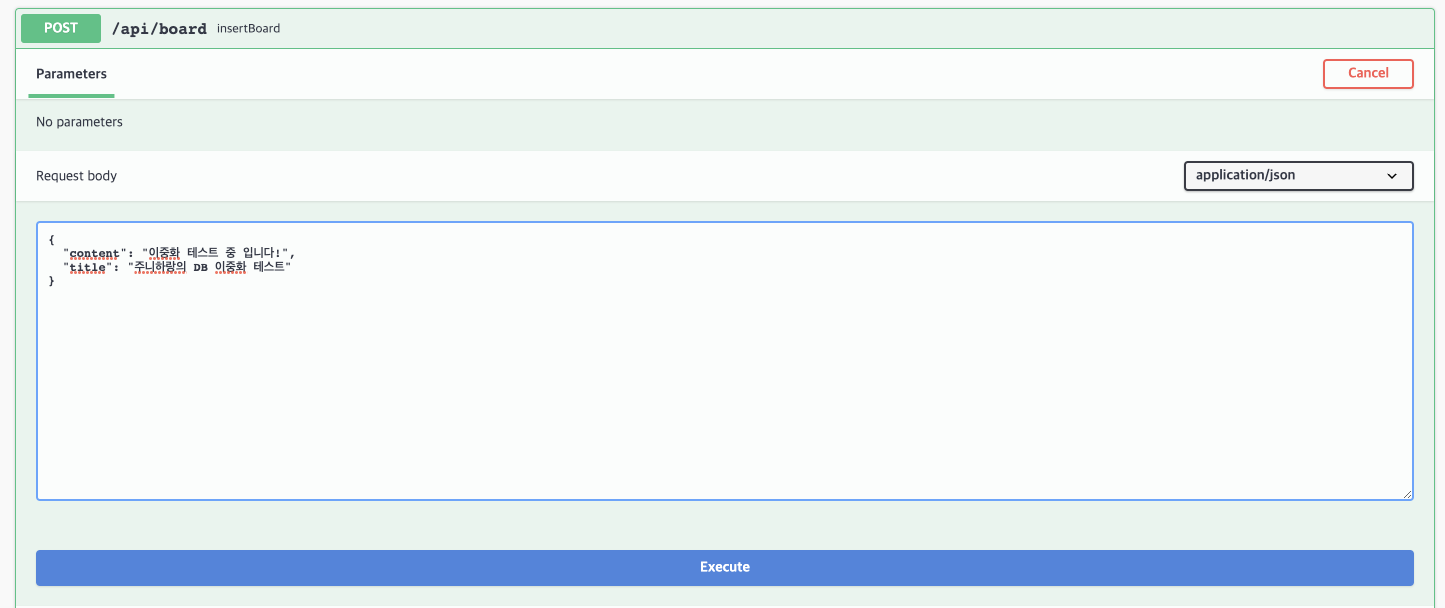

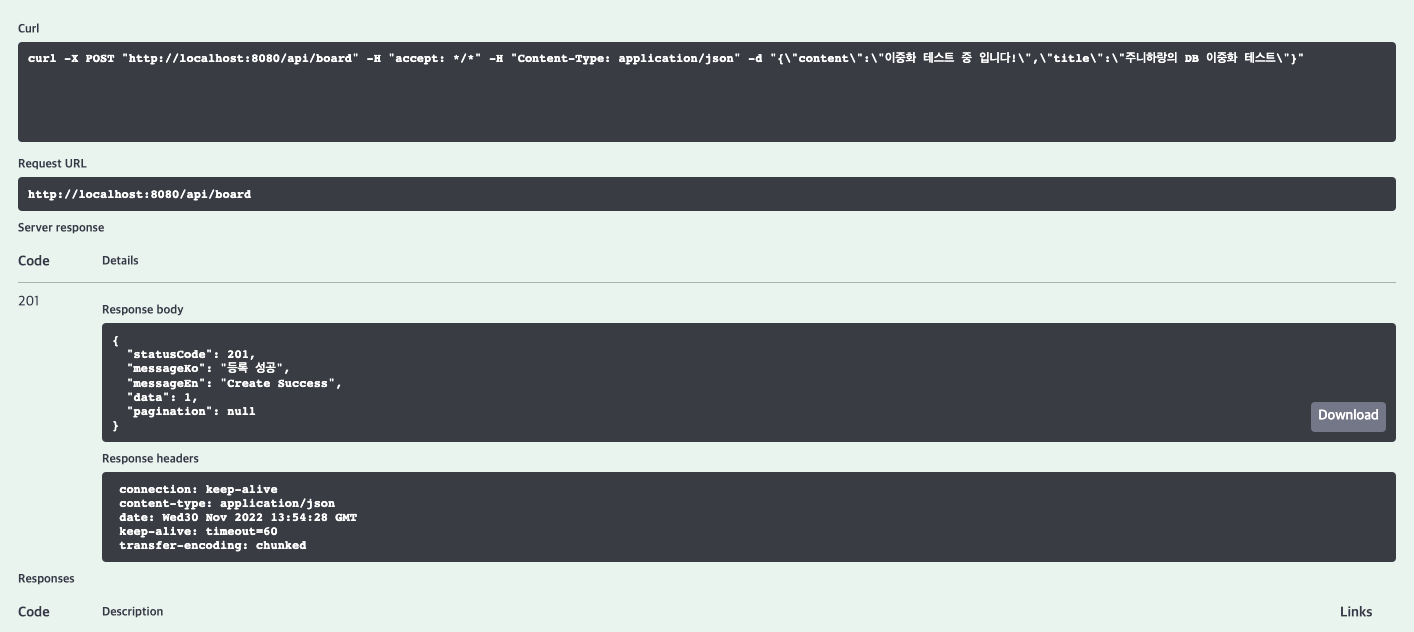

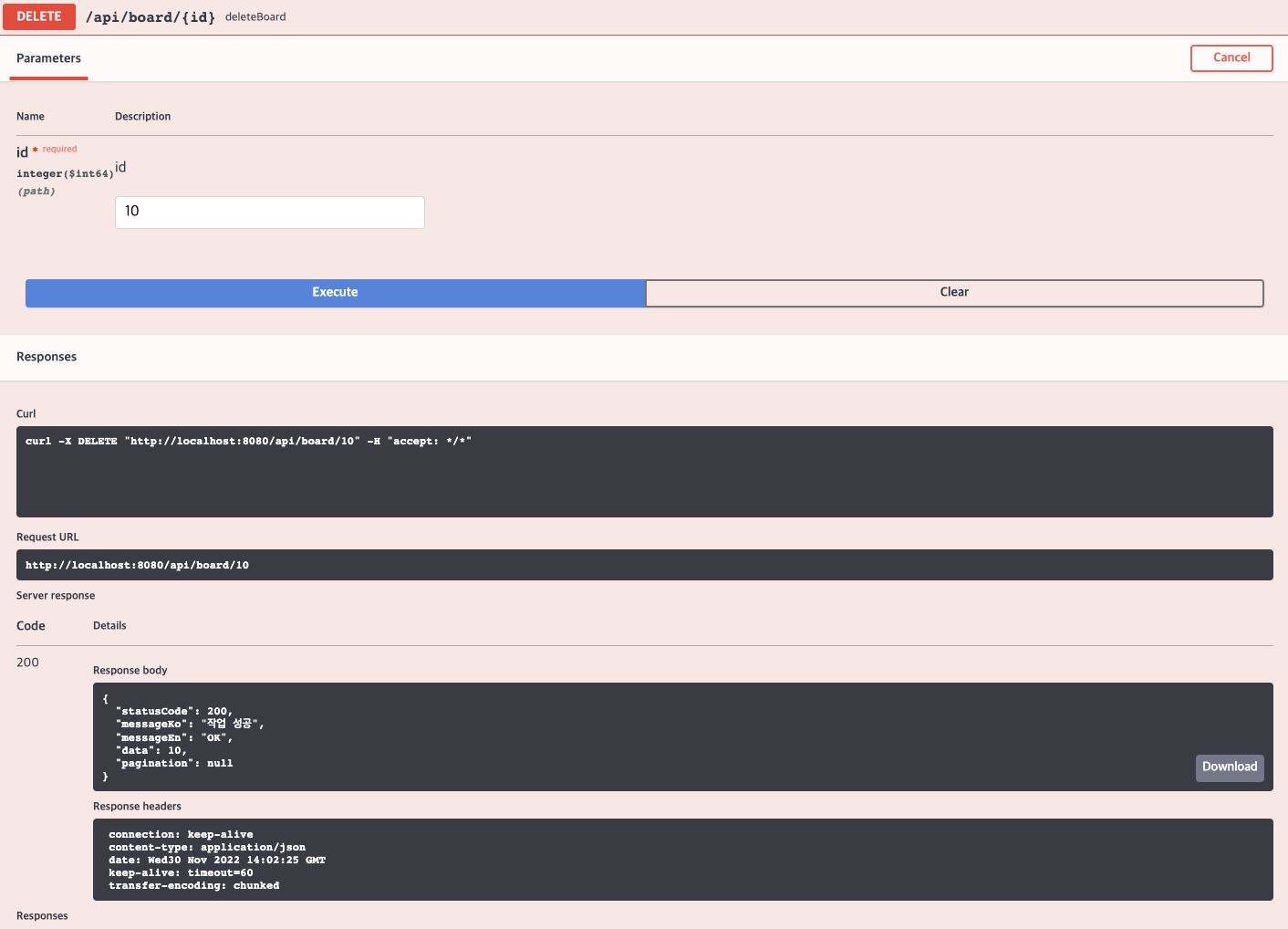

주니하랑은 Test를 위해 아래와 같이 Controller, Service, Repository를 만들어 주었어요.

package com.junyharang.duplication_test.service.Impl;

import com.junyharang.duplication_test.common.constant.DefaultResponse;
import com.junyharang.duplication_test.common.constant.DefaultResponseMessage;
import com.junyharang.duplication_test.model.dto.request.BoardRequestDTO;
import com.junyharang.duplication_test.model.dto.request.BoardUpdateRequestDTO;
import com.junyharang.duplication_test.model.dto.response.BoardResponseDTO;
import com.junyharang.duplication_test.model.entity.Board;
import com.junyharang.duplication_test.repository.BoardRepository;
import lombok.RequiredArgsConstructor;
import com.junyharang.duplication_test.service.JunyHarangTestService;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;

import java.util.List;
import java.util.Optional;

@RequiredArgsConstructor
@Service
public class JunyHarangTestServiceImpl implements JunyHarangTestService {

    private final BoardRepository boardRepository;

    @Override
    @Transactional
    public DefaultResponse<Long> insertBoard(BoardRequestDTO boardRequestDTO) {

        if (boardRequestDTO == null) {
            return DefaultResponse.response(DefaultResponseMessage.BAD_REQUEST,
                                            DefaultResponseMessage.KOREAN_400,
                                            DefaultResponseMessage.ENGLISH_400);
        }

        Board board = Board.builder()
                           .title(boardRequestDTO.getTitle())
                           .content(boardRequestDTO.getContent())
                           .build();

        Long saveId = boardRepository.save(board).getId();

        return DefaultResponse.response(DefaultResponseMessage.CREATE_SUCCESS,
                                        DefaultResponseMessage.KOREAN_201,
                                        DefaultResponseMessage.ENGLISH_201,
                                        saveId);
    }

    @Override
    @Transactional(readOnly = true)
    public DefaultResponse<List<Board>> getBoardList() {
        return DefaultResponse.response(
                DefaultResponseMessage.OK,
                DefaultResponseMessage.KOREAN_200,
                DefaultResponseMessage.ENGLISH_200,
                boardRepository.findAll());
    }

    @Override
    @Transactional(readOnly = true)
    public DefaultResponse<BoardResponseDTO> getBoard(Long id) {

        Optional<Board> boardById = findValueByID(id);

        if (boardById.isEmpty()) {
            return DefaultResponse.response(
                    DefaultResponseMessage.NOT_FOUND,
                    DefaultResponseMessage.KOREAN_404,
                    DefaultResponseMessage.ENGLISH_404);
        }

        return DefaultResponse.response(
                DefaultResponseMessage.OK,
                DefaultResponseMessage.KOREAN_200,
                DefaultResponseMessage.ENGLISH_200,

                BoardResponseDTO.builder()
                                .id(boardById.get().getId())
                                .title(boardById.get().getTitle())
                                .content(boardById.get().getContent())
                                .build());
    }

    @Override
    @Transactional
    public DefaultResponse<Long> updateBoard(Long id, BoardUpdateRequestDTO boardUpdateRequestDTO) {
        Optional<Board> boardById = findValueByID(id);

        if (boardById.isEmpty()) {
            return DefaultResponse.response(
                    DefaultResponseMessage.NOT_FOUND,
                    DefaultResponseMessage.KOREAN_404,
                    DefaultResponseMessage.ENGLISH_404);
        }

        Board updateBoard = boardById.get().update(boardUpdateRequestDTO);

        return DefaultResponse.response(
                DefaultResponseMessage.CREATE_SUCCESS,
                DefaultResponseMessage.KOREAN_201,
                DefaultResponseMessage.ENGLISH_201,
                boardRepository.save(updateBoard).getId());

    }

    @Override
    @Transactional
    public DefaultResponse<Long> deleteBoard(Long id) {

        Optional<Board> boardById = findValueByID(id);

        if (boardById.isEmpty()) {
            return DefaultResponse.response(
                    DefaultResponseMessage.NOT_FOUND,
                    DefaultResponseMessage.KOREAN_404,
                    DefaultResponseMessage.ENGLISH_404);
        }

        boardRepository.delete(boardById.get());

        return DefaultResponse.response(
                DefaultResponseMessage.OK,
                DefaultResponseMessage.KOREAN_200,
                DefaultResponseMessage.ENGLISH_200,
                id);
    }

    @Transactional(readOnly = true)
    public Optional<Board> findValueByID(Long id) {
        return boardRepository.findById(id);
    }
}

JunyHarangTestServiceImpl

728x90

자세한 Source Code는 주니하랑의 GitHub 이 곳에 올려두었어요.

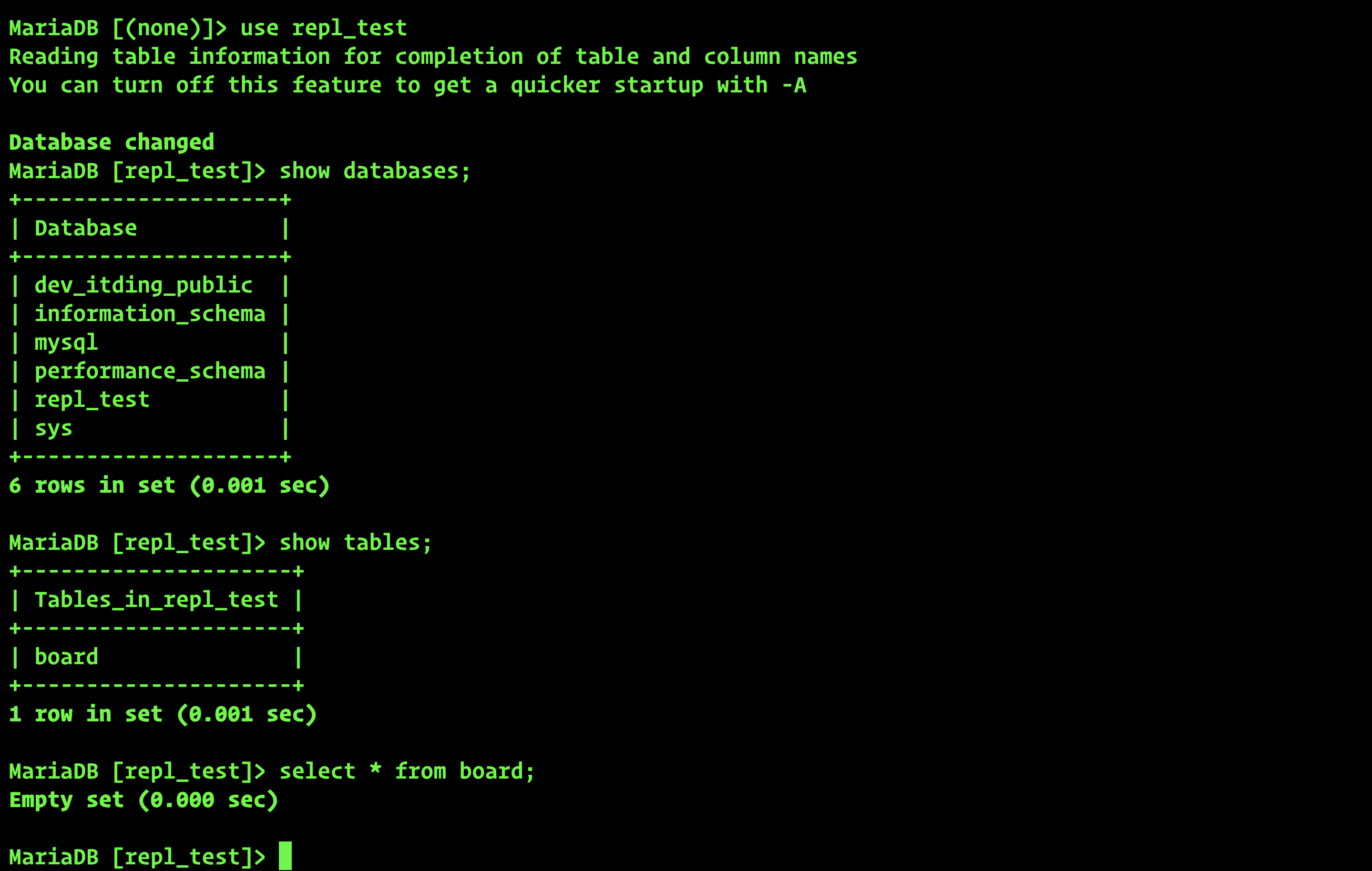

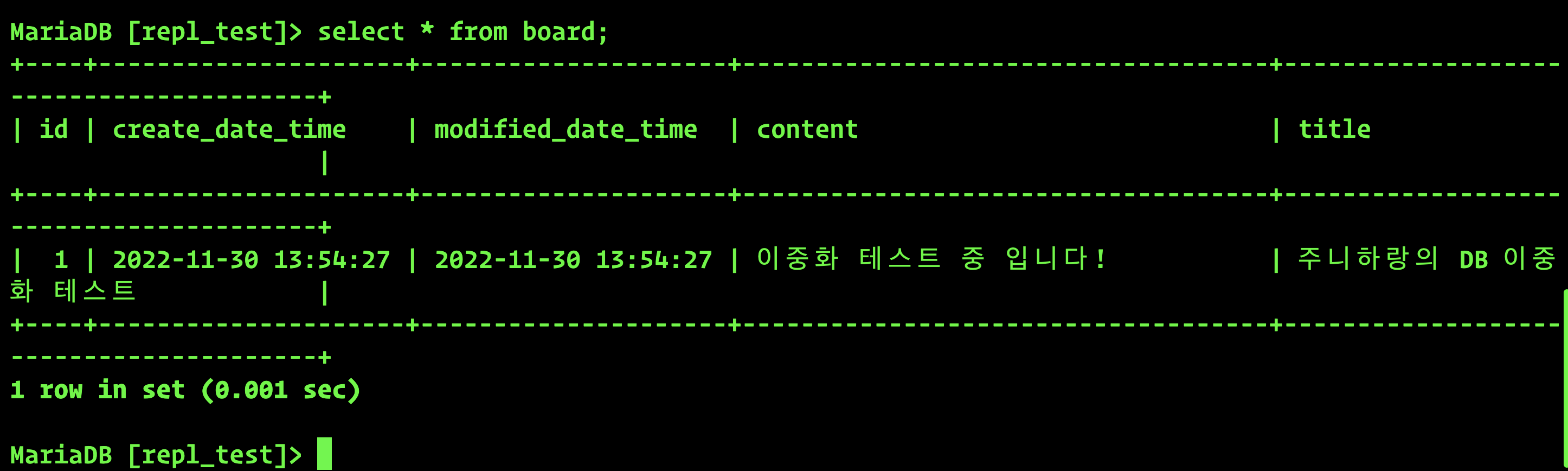

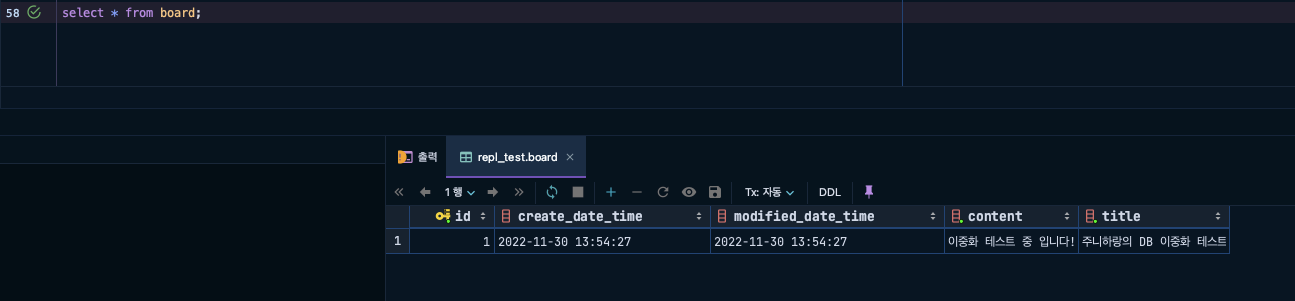

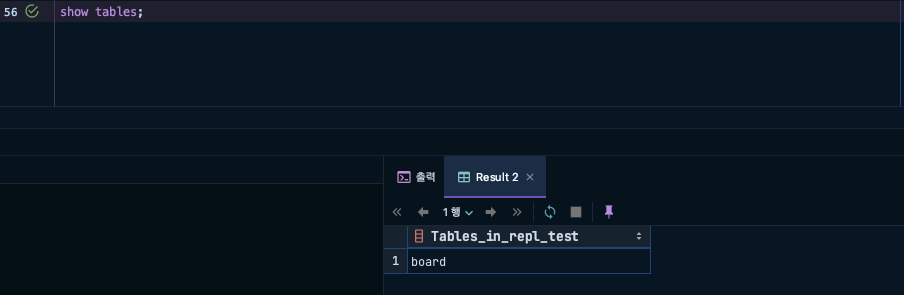

위와 같이 만들고 난 뒤 Spring Boot를 기동하니 Data Base에 Table이 생긴걸 확인할 수 있었어요.

Console에 찍힌 Log는 아래와 같이 나왔어요.

/Users/junyss/Library/Java/JavaVirtualMachines/azul-11.0.16/Contents/Home/bin/java -agentlib:jdwp=transport=dt_socket,address=127.0.0.1:56100,suspend=y,server=n -XX:TieredStopAtLevel=1 -noverify -Dspring.profiles.active=dev -Dspring.output.ansi.enabled=always -Dcom.sun.management.jmxremote -Dspring.jmx.enabled=true -Dspring.liveBeansView.mbeanDomain -Dspring.application.admin.enabled=true -javaagent:/Users/junyss/Library/Caches/JetBrains/IntelliJIdea2022.2/captureAgent/debugger-agent.jar -Dfile.encoding=UTF-8 -classpath /Users/junyss/Programming/study/Test/JunyHarangTest/mariaDB-duplication-Test/duplication_test/build/classes/java/main:/Users/junyss/Programming/study/Test/JunyHarangTest/mariaDB-duplication-Test/duplication_test/build/resources/main:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.projectlombok/lombok/1.18.24/13a394eed5c4f9efb2a6d956e2086f1d81e857d9/lombok-1.18.24.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework.boot/spring-boot-starter-data-jpa/2.7.6/7eef599012347f2fb7f84ba71eba10caf094dfb5/spring-boot-starter-data-jpa-2.7.6.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework.boot/spring-boot-starter-web/2.7.6/9d0166a0390df593243bdc798ca7a1db20ddea9c/spring-boot-starter-web-2.7.6.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.springfox/springfox-boot-starter/3.0.0/5486365e263f8acca014b97efa50c3419d58e8f6/springfox-boot-starter-3.0.0.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework.boot/spring-boot-starter-aop/2.7.6/23061de1832242610092f212f99d49b9a4955a9d/spring-boot-starter-aop-2.7.6.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework.boot/spring-boot-starter-jdbc/2.7.6/9db6def4ba06a11b67f0de3eac83441d00350dd6/spring-boot-starter-jdbc-2.7.6.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/jakarta.transaction/jakarta.transaction-api/1.3.3/c4179d48720a1e87202115fbed6089bdc4195405/jakarta.transaction-api-1.3.3.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/jakarta.persistence/jakarta.persistence-api/2.2.3/8f6ea5daedc614f07a3654a455660145286f024e/jakarta.persistence-api-2.2.3.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.hibernate/hibernate-core/5.6.14.Final/71e407089b71ed7c6e99385fd851c308fed7be44/hibernate-core-5.6.14.Final.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework.data/spring-data-jpa/2.7.6/8d0414f5cca5e31509943cd5f97cacdddd7c7384/spring-data-jpa-2.7.6.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework/spring-aspects/5.3.24/e97d36c3e516d3dd0579437428b6e26902da0c88/spring-aspects-5.3.24.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework.boot/spring-boot-starter-json/2.7.6/77017e2aa78224c3fa10444d659c2ce8765b910/spring-boot-starter-json-2.7.6.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework.boot/spring-boot-starter/2.7.6/d15341c0fc0b1d1362ce6c737b34679ad1f836c/spring-boot-starter-2.7.6.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework.boot/spring-boot-starter-tomcat/2.7.6/ec920cd7f951f3cff3a0b7af80bb8f7116a3d8a5/spring-boot-starter-tomcat-2.7.6.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework/spring-webmvc/5.3.24/33d2187c2bf1cb2c222bd1cc18b618736babcf3d/spring-webmvc-5.3.24.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework/spring-web/5.3.24/d89bbcaabb1ff247a089875cbc4211bfe96c9a59/spring-web-5.3.24.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.springfox/springfox-oas/3.0.0/e7bc9c1319cf1b64ae714a249c3db3b8fe01e42b/springfox-oas-3.0.0.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.springfox/springfox-data-rest/3.0.0/40f5e834d6696ae1d3212fa5a2d5e1ec406bedc0/springfox-data-rest-3.0.0.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.springfox/springfox-bean-validators/3.0.0/80c646fdebe5f2b2b337a5a686e540fee0b7304f/springfox-bean-validators-3.0.0.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.springfox/springfox-swagger2/3.0.0/7bcb18d496576eff76ef7bb72684e149cbb75c1d/springfox-swagger2-3.0.0.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.springfox/springfox-swagger-ui/3.0.0/1e665fbe22148f7c36fa8a08e515a0047cd4390b/springfox-swagger-ui-3.0.0.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/com.fasterxml/classmate/1.5.1/3fe0bed568c62df5e89f4f174c101eab25345b6c/classmate-1.5.1.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework.plugin/spring-plugin-metadata/2.0.0.RELEASE/6fb3a1fc0f05dc826687b7686ad8a5960ecdd57c/spring-plugin-metadata-2.0.0.RELEASE.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework.plugin/spring-plugin-core/2.0.0.RELEASE/95fc8c13037630f4aba9c51141f535becec00fe6/spring-plugin-core-2.0.0.RELEASE.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.slf4j/slf4j-api/1.7.36/6c62681a2f655b49963a5983b8b0950a6120ae14/slf4j-api-1.7.36.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework/spring-aop/5.3.24/efd01bc1048a2e1b6a7442fbd78170bc02c342b7/spring-aop-5.3.24.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.aspectj/aspectjweaver/1.9.7/158f5c255cd3e4408e795b79f7c3fbae9b53b7ca/aspectjweaver-1.9.7.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/com.zaxxer/HikariCP/4.0.3/107cbdf0db6780a065f895ae9d8fbf3bb0e1c21f/HikariCP-4.0.3.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework/spring-jdbc/5.3.24/909c19ab470a59b9fd23177d26b8e880733b15d4/spring-jdbc-5.3.24.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.hibernate.common/hibernate-commons-annotations/5.1.2.Final/e59ffdbc6ad09eeb33507b39ffcf287679a498c8/hibernate-commons-annotations-5.1.2.Final.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.jboss.logging/jboss-logging/3.4.3.Final/c4bd7e12a745c0e7f6cf98c45cdcdf482fd827ea/jboss-logging-3.4.3.Final.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/net.bytebuddy/byte-buddy/1.12.19/178d26e6a95e50502ae16673e08269797f8b254a/byte-buddy-1.12.19.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/antlr/antlr/2.7.7/83cd2cd674a217ade95a4bb83a8a14f351f48bd0/antlr-2.7.7.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.jboss/jandex/2.4.2.Final/1e1c385990b258ff1a24c801e84aebbacf70eb39/jandex-2.4.2.Final.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.glassfish.jaxb/jaxb-runtime/2.3.7/ebcde6a44159eb9e3db721dfe6b45f26e6272341/jaxb-runtime-2.3.7.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework.data/spring-data-commons/2.7.6/e3d15a8f4d5ef0d2323569445c66903d0188cb68/spring-data-commons-2.7.6.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework/spring-context/5.3.24/e48634d7b8f40d4d0fe978830be0247bfc2ff2cd/spring-context-5.3.24.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework/spring-orm/5.3.24/256e029c2d8200294fe7fb5352ca2d1d7310dcad/spring-orm-5.3.24.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework/spring-tx/5.3.24/175a2157fce17669af6d4db1d094cb4baaa5c8fd/spring-tx-5.3.24.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework/spring-beans/5.3.24/e487ea6de09b9a7c36548028feeafa511a593532/spring-beans-5.3.24.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework/spring-core/5.3.24/d095c329f30baf2b6d44eccbd2352d7a2f840c72/spring-core-5.3.24.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/com.fasterxml.jackson.datatype/jackson-datatype-jsr310/2.13.4/e6d820112871f33cd94a1dcc54eef58874753b5/jackson-datatype-jsr310-2.13.4.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/com.fasterxml.jackson.module/jackson-module-parameter-names/2.13.4/858ccf6624b5fac6044813e845063edb6a62cf37/jackson-module-parameter-names-2.13.4.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/com.fasterxml.jackson.datatype/jackson-datatype-jdk8/2.13.4/557dbba5d8dfc7b7f944c58fe084109afcb5670b/jackson-datatype-jdk8-2.13.4.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/com.fasterxml.jackson.core/jackson-databind/2.13.4.2/325c06bdfeb628cfb80ebaaf1a26cc1eb558a585/jackson-databind-2.13.4.2.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework.boot/spring-boot-starter-logging/2.7.6/33a2d9e08d33a6a6f8051ed38daac14046e2f97c/spring-boot-starter-logging-2.7.6.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework.boot/spring-boot-autoconfigure/2.7.6/4ad7e89accd25c69bfe84f52202deaf09430be2/spring-boot-autoconfigure-2.7.6.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework.boot/spring-boot/2.7.6/f96f89eba708a591704db5dcbfc03e8822a503aa/spring-boot-2.7.6.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/jakarta.annotation/jakarta.annotation-api/1.3.5/59eb84ee0d616332ff44aba065f3888cf002cd2d/jakarta.annotation-api-1.3.5.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.yaml/snakeyaml/1.30/8fde7fe2586328ac3c68db92045e1c8759125000/snakeyaml-1.30.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.apache.tomcat.embed/tomcat-embed-websocket/9.0.69/c5da77c17a667b4e7a6bb01fb3b28c46c2717123/tomcat-embed-websocket-9.0.69.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.apache.tomcat.embed/tomcat-embed-core/9.0.69/27f2530eba96238aca56593bbd98edfdb038d9ef/tomcat-embed-core-9.0.69.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.apache.tomcat.embed/tomcat-embed-el/9.0.69/9c89a289c35b9ec20bdfb692a22dab87256bbe67/tomcat-embed-el-9.0.69.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework/spring-expression/5.3.24/ae7410418e7b4bd27a01e3fb1c2fed35b2bc1e84/spring-expression-5.3.24.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.springfox/springfox-swagger-common/3.0.0/2e2fae840984cfcabfd50e1b4b1c23422135ba12/springfox-swagger-common-3.0.0.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.springfox/springfox-spring-webmvc/3.0.0/7ed22363fdfd651cd811c0b2391f16bddb91db8b/springfox-spring-webmvc-3.0.0.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.springfox/springfox-spring-web/3.0.0/a76f2fbe805bfd2798e20dc8f2cfbfad554d52da/springfox-spring-web-3.0.0.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.springfox/springfox-schema/3.0.0/32c5d6965617830ef6480fadb9030008945bcd9c/springfox-schema-3.0.0.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.springfox/springfox-spi/3.0.0/bae0b820d4b5a922063d34a42aaf4f763308b828/springfox-spi-3.0.0.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.springfox/springfox-core/3.0.0/7c3367ce577c8acd9bf64c74488c9269253516c9/springfox-core-3.0.0.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.springfox/springfox-spring-webflux/3.0.0/efccbcfe1d23f2ba520bd87cc156bf2b81f3568e/springfox-spring-webflux-3.0.0.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.swagger.core.v3/swagger-models/2.1.2/e7edeed6456a16d707542c003af03a594ecafe3a/swagger-models-2.1.2.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.swagger.core.v3/swagger-annotations/2.1.2/d407a33aa71444802c640080eb4d5f499b027f96/swagger-annotations-2.1.2.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.swagger/swagger-models/1.5.20/fb3a23bad80c5ed84db9dd150db2cba699531458/swagger-models-1.5.20.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.swagger/swagger-annotations/1.5.20/16051f93ce11ca489a5313775d825f82fcc2cd6c/swagger-annotations-1.5.20.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/jakarta.xml.bind/jakarta.xml.bind-api/2.3.3/48e3b9cfc10752fba3521d6511f4165bea951801/jakarta.xml.bind-api-2.3.3.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.glassfish.jaxb/txw2/2.3.7/55cddcac1945150e09b09b0f89d86799652eee82/txw2-2.3.7.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/com.sun.istack/istack-commons-runtime/3.0.12/cbbe1a62b0cc6c85972e99d52aaee350153dc530/istack-commons-runtime-3.0.12.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.springframework/spring-jcl/5.3.24/2b30878663ceed2af07238dc54e92e5bf001438d/spring-jcl-5.3.24.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/com.fasterxml.jackson.core/jackson-annotations/2.13.4/858c6cc78e1f08a885b1613e1d817c829df70a6e/jackson-annotations-2.13.4.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/com.fasterxml.jackson.core/jackson-core/2.13.4/cf934c681294b97ef6d80082faeefbe1edadf56/jackson-core-2.13.4.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/ch.qos.logback/logback-classic/1.2.11/4741689214e9d1e8408b206506cbe76d1c6a7d60/logback-classic-1.2.11.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.apache.logging.log4j/log4j-to-slf4j/2.17.2/17dd0fae2747d9a28c67bc9534108823d2376b46/log4j-to-slf4j-2.17.2.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.slf4j/jul-to-slf4j/1.7.36/ed46d81cef9c412a88caef405b58f93a678ff2ca/jul-to-slf4j-1.7.36.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/io.github.classgraph/classgraph/4.8.83/7be289f451cedf9e35ed97caba3953226b4e6d9/classgraph-4.8.83.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/ch.qos.logback/logback-core/1.2.11/a01230df5ca5c34540cdaa3ad5efb012f1f1f792/logback-core-1.2.11.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.apache.logging.log4j/log4j-api/2.17.2/f42d6afa111b4dec5d2aea0fe2197240749a4ea6/log4j-api-2.17.2.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/com.h2database/h2/2.1.214/d5c2005c9e3279201e12d4776c948578b16bf8b2/h2-2.1.214.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.mariadb.jdbc/mariadb-java-client/3.0.9/8ebaa10da718ca9893e3c45e21951105cd6bfafb/mariadb-java-client-3.0.9.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/com.mysql/mysql-connector-j/8.0.31/3fd5850719d7e82d50705d34cc6a0037fab5731f/mysql-connector-j-8.0.31.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/org.mapstruct/mapstruct/1.3.1.Final/6ab184bbc7a7029738277a244e4c535fcdc3f558/mapstruct-1.3.1.Final.jar:/Users/junyss/.gradle/caches/modules-2/files-2.1/com.sun.activation/jakarta.activation/1.2.2/74548703f9851017ce2f556066659438019e7eb5/jakarta.activation-1.2.2.jar:/Users/junyss/Library/Application Support/JetBrains/Toolbox/apps/IDEA-U/ch-0/222.4459.24/IntelliJ IDEA.app/Contents/lib/idea_rt.jar com.junyharang.duplication_test.DuplicationTestApplication
대상 VM에 연결되었습니다, 주소: '127.0.0.1:56100', 전송: '소켓'

  .   ____          _            __ _ _
 /\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
 \\/  ___)| |_)| | | | | || (_| |  ) ) ) )
  '  |____| .__|_| |_|_| |_\__, | / / / /
 =========|_|==============|___/=/_/_/_/
 :: Spring Boot ::                (v2.7.6)

2022-11-30 21:06:46.055  INFO 9513 --- [           main] c.j.d.DuplicationTestApplication         : Starting DuplicationTestApplication using Java 11.0.16 on juniui-MacBookPro.local with PID 9513 (/Users/junyss/Programming/study/Test/JunyHarangTest/mariaDB-duplication-Test/duplication_test/build/classes/java/main started by junyss in /Users/junyss/Programming/study/Test/JunyHarangTest/mariaDB-duplication-Test/duplication_test)
2022-11-30 21:06:46.056  INFO 9513 --- [           main] c.j.d.DuplicationTestApplication         : The following 3 profiles are active: "dev", "common", "dev-db"
2022-11-30 21:06:46.453  INFO 9513 --- [           main] .s.d.r.c.RepositoryConfigurationDelegate : Bootstrapping Spring Data JPA repositories in DEFAULT mode.
2022-11-30 21:06:46.480  INFO 9513 --- [           main] .s.d.r.c.RepositoryConfigurationDelegate : Finished Spring Data repository scanning in 23 ms. Found 1 JPA repository interfaces.
2022-11-30 21:06:46.774  INFO 9513 --- [           main] o.s.b.w.embedded.tomcat.TomcatWebServer  : Tomcat initialized with port(s): 8080 (http)
2022-11-30 21:06:46.779  INFO 9513 --- [           main] o.apache.catalina.core.StandardService   : Starting service [Tomcat]
2022-11-30 21:06:46.779  INFO 9513 --- [           main] org.apache.catalina.core.StandardEngine  : Starting Servlet engine: [Apache Tomcat/9.0.69]
2022-11-30 21:06:46.835  INFO 9513 --- [           main] o.a.c.c.C.[Tomcat].[localhost].[/]       : Initializing Spring embedded WebApplicationContext
2022-11-30 21:06:46.835  INFO 9513 --- [           main] w.s.c.ServletWebServerApplicationContext : Root WebApplicationContext: initialization completed in 756 ms
2022-11-30 21:06:46.879  INFO 9513 --- [           main] com.zaxxer.hikari.HikariDataSource       : HikariPool-1 - Starting...
2022-11-30 21:06:46.968  INFO 9513 --- [           main] com.zaxxer.hikari.HikariDataSource       : HikariPool-1 - Start completed.
2022-11-30 21:06:47.026  INFO 9513 --- [           main] o.hibernate.jpa.internal.util.LogHelper  : HHH000204: Processing PersistenceUnitInfo [name: default]
2022-11-30 21:06:47.045  INFO 9513 --- [           main] org.hibernate.Version                    : HHH000412: Hibernate ORM core version 5.6.14.Final
2022-11-30 21:06:47.107  INFO 9513 --- [           main] o.hibernate.annotations.common.Version   : HCANN000001: Hibernate Commons Annotations {5.1.2.Final}
2022-11-30 21:06:47.152  INFO 9513 --- [           main] org.hibernate.dialect.Dialect            : HHH000400: Using dialect: org.hibernate.dialect.MySQL5InnoDBDialect
Hibernate:

    drop table if exists board
Hibernate:

    create table board (
       id bigint not null auto_increment,
        create_date_time datetime,
        modified_date_time datetime,
        content TEXT not null,
        title varchar(500) not null,
        primary key (id)
    ) engine=InnoDB
2022-11-30 21:06:50.134  INFO 9513 --- [           main] o.h.e.t.j.p.i.JtaPlatformInitiator       : HHH000490: Using JtaPlatform implementation: [org.hibernate.engine.transaction.jta.platform.internal.NoJtaPlatform]
2022-11-30 21:06:50.145  INFO 9513 --- [           main] j.LocalContainerEntityManagerFactoryBean : Initialized JPA EntityManagerFactory for persistence unit 'default'
2022-11-30 21:06:50.366  WARN 9513 --- [           main] JpaBaseConfiguration$JpaWebConfiguration : spring.jpa.open-in-view is enabled by default. Therefore, database queries may be performed during view rendering. Explicitly configure spring.jpa.open-in-view to disable this warning
2022-11-30 21:06:50.615  INFO 9513 --- [           main] o.s.b.w.embedded.tomcat.TomcatWebServer  : Tomcat started on port(s): 8080 (http) with context path ''
2022-11-30 21:06:50.745  INFO 9513 --- [           main] c.j.d.DuplicationTestApplication         : Started DuplicationTestApplication in 4.908 seconds (JVM running for 5.291)

위와 같이 Table이 만들어진걸 알 수 있어요.

Master에서 board라는 Table을 확인할 수 있어요.

Slave DBMS에도 동일하게 Table과 DB등이 만들어진걸 확인할 수 있어요.

만약 아래와 같은 문제가 나온다면

대상 VM에 연결되었습니다, 주소: '127.0.0.1:56228', 전송: '소켓'

  .   ____          _            __ _ _
 /\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
 \\/  ___)| |_)| | | | | || (_| |  ) ) ) )
  '  |____| .__|_| |_|_| |_\__, | / / / /
 =========|_|==============|___/=/_/_/_/
 :: Spring Boot ::                (v2.7.6)

2022-11-30 21:14:59.300  INFO 9710 --- [           main] c.j.d.DuplicationTestApplication         : Starting DuplicationTestApplication using Java 11.0.16 on juniui-MacBookPro.local with PID 9710 (/Users/junyss/Programming/study/Test/JunyHarangTest/mariaDB-duplication-Test/duplication_test/build/classes/java/main started by junyss in /Users/junyss/Programming/study/Test/JunyHarangTest/mariaDB-duplication-Test/duplication_test)
2022-11-30 21:14:59.301  INFO 9710 --- [           main] c.j.d.DuplicationTestApplication         : The following 3 profiles are active: "dev", "common", "dev-db"
2022-11-30 21:14:59.677  INFO 9710 --- [           main] .s.d.r.c.RepositoryConfigurationDelegate : Bootstrapping Spring Data JPA repositories in DEFAULT mode.
2022-11-30 21:14:59.706  INFO 9710 --- [           main] .s.d.r.c.RepositoryConfigurationDelegate : Finished Spring Data repository scanning in 25 ms. Found 1 JPA repository interfaces.
2022-11-30 21:15:00.000  INFO 9710 --- [           main] o.s.b.w.embedded.tomcat.TomcatWebServer  : Tomcat initialized with port(s): 8080 (http)
2022-11-30 21:15:00.005  INFO 9710 --- [           main] o.apache.catalina.core.StandardService   : Starting service [Tomcat]
2022-11-30 21:15:00.005  INFO 9710 --- [           main] org.apache.catalina.core.StandardEngine  : Starting Servlet engine: [Apache Tomcat/9.0.69]
2022-11-30 21:15:00.075  INFO 9710 --- [           main] o.a.c.c.C.[Tomcat].[localhost].[/]       : Initializing Spring embedded WebApplicationContext
2022-11-30 21:15:00.075  INFO 9710 --- [           main] w.s.c.ServletWebServerApplicationContext : Root WebApplicationContext: initialization completed in 754 ms
2022-11-30 21:15:00.121  INFO 9710 --- [           main] com.zaxxer.hikari.HikariDataSource       : HikariPool-1 - Starting...
2022-11-30 21:15:31.198 ERROR 9710 --- [           main] com.zaxxer.hikari.pool.HikariPool        : HikariPool-1 - Exception during pool initialization.

com.mysql.cj.jdbc.exceptions.CommunicationsException: Communications link failure

The last packet sent successfully to the server was 0 milliseconds ago. The driver has not received any packets from the server.
	at com.mysql.cj.jdbc.exceptions.SQLError.createCommunicationsException(SQLError.java:174) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.exceptions.SQLExceptionsMapping.translateException(SQLExceptionsMapping.java:64) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.ConnectionImpl.createNewIO(ConnectionImpl.java:828) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.ConnectionImpl.<init>(ConnectionImpl.java:448) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.ConnectionImpl.getInstance(ConnectionImpl.java:241) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.NonRegisteringDriver.connect(NonRegisteringDriver.java:198) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.zaxxer.hikari.util.DriverDataSource.getConnection(DriverDataSource.java:138) ~[HikariCP-4.0.3.jar:na]
	at com.zaxxer.hikari.pool.PoolBase.newConnection(PoolBase.java:364) ~[HikariCP-4.0.3.jar:na]
	at com.zaxxer.hikari.pool.PoolBase.newPoolEntry(PoolBase.java:206) ~[HikariCP-4.0.3.jar:na]
	at com.zaxxer.hikari.pool.HikariPool.createPoolEntry(HikariPool.java:476) ~[HikariCP-4.0.3.jar:na]
	at com.zaxxer.hikari.pool.HikariPool.checkFailFast(HikariPool.java:561) ~[HikariCP-4.0.3.jar:na]
	at com.zaxxer.hikari.pool.HikariPool.<init>(HikariPool.java:115) ~[HikariCP-4.0.3.jar:na]
	at com.zaxxer.hikari.HikariDataSource.getConnection(HikariDataSource.java:112) ~[HikariCP-4.0.3.jar:na]
	at org.springframework.jdbc.datasource.lookup.AbstractRoutingDataSource.getConnection(AbstractRoutingDataSource.java:194) ~[spring-jdbc-5.3.24.jar:5.3.24]
	at org.springframework.jdbc.datasource.LazyConnectionDataSourceProxy.afterPropertiesSet(LazyConnectionDataSourceProxy.java:164) ~[spring-jdbc-5.3.24.jar:5.3.24]
	at org.springframework.jdbc.datasource.LazyConnectionDataSourceProxy.<init>(LazyConnectionDataSourceProxy.java:108) ~[spring-jdbc-5.3.24.jar:5.3.24]
	at com.junyharang.duplication_test.common.config.DataBase.DataSourceConfiguration.dataSource(DataSourceConfiguration.java:58) ~[main/:na]
	at com.junyharang.duplication_test.common.config.DataBase.DataSourceConfiguration$$EnhancerBySpringCGLIB$$1b143e2e.CGLIB$dataSource$3(<generated>) ~[main/:na]
	at com.junyharang.duplication_test.common.config.DataBase.DataSourceConfiguration$$EnhancerBySpringCGLIB$$1b143e2e$$FastClassBySpringCGLIB$$4600f72a.invoke(<generated>) ~[main/:na]
	at org.springframework.cglib.proxy.MethodProxy.invokeSuper(MethodProxy.java:244) ~[spring-core-5.3.24.jar:5.3.24]
	at org.springframework.context.annotation.ConfigurationClassEnhancer$BeanMethodInterceptor.intercept(ConfigurationClassEnhancer.java:331) ~[spring-context-5.3.24.jar:5.3.24]
	at com.junyharang.duplication_test.common.config.DataBase.DataSourceConfiguration$$EnhancerBySpringCGLIB$$1b143e2e.dataSource(<generated>) ~[main/:na]
	at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method) ~[na:na]
	at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62) ~[na:na]
	at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43) ~[na:na]
	at java.base/java.lang.reflect.Method.invoke(Method.java:566) ~[na:na]
	at org.springframework.beans.factory.support.SimpleInstantiationStrategy.instantiate(SimpleInstantiationStrategy.java:154) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.ConstructorResolver.instantiate(ConstructorResolver.java:653) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.ConstructorResolver.instantiateUsingFactoryMethod(ConstructorResolver.java:638) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.instantiateUsingFactoryMethod(AbstractAutowireCapableBeanFactory.java:1352) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBeanInstance(AbstractAutowireCapableBeanFactory.java:1195) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:582) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:542) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:335) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:234) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:333) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:208) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.config.DependencyDescriptor.resolveCandidate(DependencyDescriptor.java:276) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.DefaultListableBeanFactory.doResolveDependency(DefaultListableBeanFactory.java:1391) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.DefaultListableBeanFactory.resolveDependency(DefaultListableBeanFactory.java:1311) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.ConstructorResolver.resolveAutowiredArgument(ConstructorResolver.java:887) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.ConstructorResolver.createArgumentArray(ConstructorResolver.java:791) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.ConstructorResolver.instantiateUsingFactoryMethod(ConstructorResolver.java:541) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.instantiateUsingFactoryMethod(AbstractAutowireCapableBeanFactory.java:1352) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBeanInstance(AbstractAutowireCapableBeanFactory.java:1195) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:582) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:542) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:335) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:234) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:333) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:208) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:322) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:208) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.context.support.AbstractApplicationContext.getBean(AbstractApplicationContext.java:1154) ~[spring-context-5.3.24.jar:5.3.24]
	at org.springframework.context.support.AbstractApplicationContext.finishBeanFactoryInitialization(AbstractApplicationContext.java:908) ~[spring-context-5.3.24.jar:5.3.24]
	at org.springframework.context.support.AbstractApplicationContext.refresh(AbstractApplicationContext.java:583) ~[spring-context-5.3.24.jar:5.3.24]
	at org.springframework.boot.web.servlet.context.ServletWebServerApplicationContext.refresh(ServletWebServerApplicationContext.java:147) ~[spring-boot-2.7.6.jar:2.7.6]
	at org.springframework.boot.SpringApplication.refresh(SpringApplication.java:731) ~[spring-boot-2.7.6.jar:2.7.6]
	at org.springframework.boot.SpringApplication.refreshContext(SpringApplication.java:408) ~[spring-boot-2.7.6.jar:2.7.6]
	at org.springframework.boot.SpringApplication.run(SpringApplication.java:307) ~[spring-boot-2.7.6.jar:2.7.6]
	at org.springframework.boot.SpringApplication.run(SpringApplication.java:1303) ~[spring-boot-2.7.6.jar:2.7.6]
	at org.springframework.boot.SpringApplication.run(SpringApplication.java:1292) ~[spring-boot-2.7.6.jar:2.7.6]
	at com.junyharang.duplication_test.DuplicationTestApplication.main(DuplicationTestApplication.java:11) ~[main/:na]
Caused by: com.mysql.cj.exceptions.CJCommunicationsException: Communications link failure

The last packet sent successfully to the server was 0 milliseconds ago. The driver has not received any packets from the server.
	at java.base/jdk.internal.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method) ~[na:na]
	at java.base/jdk.internal.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:62) ~[na:na]
	at java.base/jdk.internal.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:45) ~[na:na]
	at java.base/java.lang.reflect.Constructor.newInstance(Constructor.java:490) ~[na:na]
	at com.mysql.cj.exceptions.ExceptionFactory.createException(ExceptionFactory.java:61) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.exceptions.ExceptionFactory.createException(ExceptionFactory.java:105) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.exceptions.ExceptionFactory.createException(ExceptionFactory.java:151) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.exceptions.ExceptionFactory.createCommunicationsException(ExceptionFactory.java:167) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.protocol.a.NativeSocketConnection.connect(NativeSocketConnection.java:89) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.NativeSession.connect(NativeSession.java:120) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.ConnectionImpl.connectOneTryOnly(ConnectionImpl.java:948) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.ConnectionImpl.createNewIO(ConnectionImpl.java:818) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	... 60 common frames omitted
Caused by: java.net.SocketTimeoutException: connect timed out
	at java.base/java.net.PlainSocketImpl.socketConnect(Native Method) ~[na:na]
	at java.base/java.net.AbstractPlainSocketImpl.doConnect(AbstractPlainSocketImpl.java:412) ~[na:na]
	at java.base/java.net.AbstractPlainSocketImpl.connectToAddress(AbstractPlainSocketImpl.java:255) ~[na:na]
	at java.base/java.net.AbstractPlainSocketImpl.connect(AbstractPlainSocketImpl.java:237) ~[na:na]
	at java.base/java.net.SocksSocketImpl.connect(SocksSocketImpl.java:392) ~[na:na]
	at java.base/java.net.Socket.connect(Socket.java:615) ~[na:na]
	at com.mysql.cj.protocol.StandardSocketFactory.connect(StandardSocketFactory.java:153) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.protocol.a.NativeSocketConnection.connect(NativeSocketConnection.java:63) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	... 63 common frames omitted

2022-11-30 21:15:31.201  INFO 9710 --- [           main] com.zaxxer.hikari.HikariDataSource       : HikariPool-1 - Starting...
2022-11-30 21:16:02.215 ERROR 9710 --- [           main] com.zaxxer.hikari.pool.HikariPool        : HikariPool-1 - Exception during pool initialization.

com.mysql.cj.jdbc.exceptions.CommunicationsException: Communications link failure

The last packet sent successfully to the server was 0 milliseconds ago. The driver has not received any packets from the server.
	at com.mysql.cj.jdbc.exceptions.SQLError.createCommunicationsException(SQLError.java:174) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.exceptions.SQLExceptionsMapping.translateException(SQLExceptionsMapping.java:64) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.ConnectionImpl.createNewIO(ConnectionImpl.java:828) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.ConnectionImpl.<init>(ConnectionImpl.java:448) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.ConnectionImpl.getInstance(ConnectionImpl.java:241) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.NonRegisteringDriver.connect(NonRegisteringDriver.java:198) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.zaxxer.hikari.util.DriverDataSource.getConnection(DriverDataSource.java:138) ~[HikariCP-4.0.3.jar:na]
	at com.zaxxer.hikari.pool.PoolBase.newConnection(PoolBase.java:364) ~[HikariCP-4.0.3.jar:na]
	at com.zaxxer.hikari.pool.PoolBase.newPoolEntry(PoolBase.java:206) ~[HikariCP-4.0.3.jar:na]
	at com.zaxxer.hikari.pool.HikariPool.createPoolEntry(HikariPool.java:476) ~[HikariCP-4.0.3.jar:na]
	at com.zaxxer.hikari.pool.HikariPool.checkFailFast(HikariPool.java:561) ~[HikariCP-4.0.3.jar:na]
	at com.zaxxer.hikari.pool.HikariPool.<init>(HikariPool.java:115) ~[HikariCP-4.0.3.jar:na]
	at com.zaxxer.hikari.HikariDataSource.getConnection(HikariDataSource.java:112) ~[HikariCP-4.0.3.jar:na]
	at org.springframework.jdbc.datasource.lookup.AbstractRoutingDataSource.getConnection(AbstractRoutingDataSource.java:194) ~[spring-jdbc-5.3.24.jar:5.3.24]
	at org.springframework.jdbc.datasource.LazyConnectionDataSourceProxy.afterPropertiesSet(LazyConnectionDataSourceProxy.java:164) ~[spring-jdbc-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.invokeInitMethods(AbstractAutowireCapableBeanFactory.java:1863) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.initializeBean(AbstractAutowireCapableBeanFactory.java:1800) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:620) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:542) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:335) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:234) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:333) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:208) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.config.DependencyDescriptor.resolveCandidate(DependencyDescriptor.java:276) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.DefaultListableBeanFactory.doResolveDependency(DefaultListableBeanFactory.java:1391) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.DefaultListableBeanFactory.resolveDependency(DefaultListableBeanFactory.java:1311) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.ConstructorResolver.resolveAutowiredArgument(ConstructorResolver.java:887) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.ConstructorResolver.createArgumentArray(ConstructorResolver.java:791) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.ConstructorResolver.instantiateUsingFactoryMethod(ConstructorResolver.java:541) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.instantiateUsingFactoryMethod(AbstractAutowireCapableBeanFactory.java:1352) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBeanInstance(AbstractAutowireCapableBeanFactory.java:1195) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:582) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:542) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:335) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:234) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:333) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:208) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:322) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:208) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.context.support.AbstractApplicationContext.getBean(AbstractApplicationContext.java:1154) ~[spring-context-5.3.24.jar:5.3.24]
	at org.springframework.context.support.AbstractApplicationContext.finishBeanFactoryInitialization(AbstractApplicationContext.java:908) ~[spring-context-5.3.24.jar:5.3.24]
	at org.springframework.context.support.AbstractApplicationContext.refresh(AbstractApplicationContext.java:583) ~[spring-context-5.3.24.jar:5.3.24]
	at org.springframework.boot.web.servlet.context.ServletWebServerApplicationContext.refresh(ServletWebServerApplicationContext.java:147) ~[spring-boot-2.7.6.jar:2.7.6]
	at org.springframework.boot.SpringApplication.refresh(SpringApplication.java:731) ~[spring-boot-2.7.6.jar:2.7.6]
	at org.springframework.boot.SpringApplication.refreshContext(SpringApplication.java:408) ~[spring-boot-2.7.6.jar:2.7.6]
	at org.springframework.boot.SpringApplication.run(SpringApplication.java:307) ~[spring-boot-2.7.6.jar:2.7.6]
	at org.springframework.boot.SpringApplication.run(SpringApplication.java:1303) ~[spring-boot-2.7.6.jar:2.7.6]
	at org.springframework.boot.SpringApplication.run(SpringApplication.java:1292) ~[spring-boot-2.7.6.jar:2.7.6]
	at com.junyharang.duplication_test.DuplicationTestApplication.main(DuplicationTestApplication.java:11) ~[main/:na]
Caused by: com.mysql.cj.exceptions.CJCommunicationsException: Communications link failure

The last packet sent successfully to the server was 0 milliseconds ago. The driver has not received any packets from the server.
	at java.base/jdk.internal.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method) ~[na:na]
	at java.base/jdk.internal.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:62) ~[na:na]
	at java.base/jdk.internal.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:45) ~[na:na]
	at java.base/java.lang.reflect.Constructor.newInstance(Constructor.java:490) ~[na:na]
	at com.mysql.cj.exceptions.ExceptionFactory.createException(ExceptionFactory.java:61) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.exceptions.ExceptionFactory.createException(ExceptionFactory.java:105) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.exceptions.ExceptionFactory.createException(ExceptionFactory.java:151) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.exceptions.ExceptionFactory.createCommunicationsException(ExceptionFactory.java:167) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.protocol.a.NativeSocketConnection.connect(NativeSocketConnection.java:89) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.NativeSession.connect(NativeSession.java:120) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.ConnectionImpl.connectOneTryOnly(ConnectionImpl.java:948) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.ConnectionImpl.createNewIO(ConnectionImpl.java:818) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	... 46 common frames omitted
Caused by: java.net.SocketTimeoutException: connect timed out
	at java.base/java.net.PlainSocketImpl.socketConnect(Native Method) ~[na:na]
	at java.base/java.net.AbstractPlainSocketImpl.doConnect(AbstractPlainSocketImpl.java:412) ~[na:na]
	at java.base/java.net.AbstractPlainSocketImpl.connectToAddress(AbstractPlainSocketImpl.java:255) ~[na:na]
	at java.base/java.net.AbstractPlainSocketImpl.connect(AbstractPlainSocketImpl.java:237) ~[na:na]
	at java.base/java.net.SocksSocketImpl.connect(SocksSocketImpl.java:392) ~[na:na]
	at java.base/java.net.Socket.connect(Socket.java:615) ~[na:na]
	at com.mysql.cj.protocol.StandardSocketFactory.connect(StandardSocketFactory.java:153) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.protocol.a.NativeSocketConnection.connect(NativeSocketConnection.java:63) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	... 49 common frames omitted

2022-11-30 21:16:02.296  INFO 9710 --- [           main] o.hibernate.jpa.internal.util.LogHelper  : HHH000204: Processing PersistenceUnitInfo [name: default]
2022-11-30 21:16:02.318  INFO 9710 --- [           main] org.hibernate.Version                    : HHH000412: Hibernate ORM core version 5.6.14.Final
2022-11-30 21:16:02.377  INFO 9710 --- [           main] o.hibernate.annotations.common.Version   : HCANN000001: Hibernate Commons Annotations {5.1.2.Final}
2022-11-30 21:16:02.419  INFO 9710 --- [           main] com.zaxxer.hikari.HikariDataSource       : HikariPool-1 - Starting...
2022-11-30 21:16:33.429 ERROR 9710 --- [           main] com.zaxxer.hikari.pool.HikariPool        : HikariPool-1 - Exception during pool initialization.

com.mysql.cj.jdbc.exceptions.CommunicationsException: Communications link failure

The last packet sent successfully to the server was 0 milliseconds ago. The driver has not received any packets from the server.
	at com.mysql.cj.jdbc.exceptions.SQLError.createCommunicationsException(SQLError.java:174) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.exceptions.SQLExceptionsMapping.translateException(SQLExceptionsMapping.java:64) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.ConnectionImpl.createNewIO(ConnectionImpl.java:828) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.ConnectionImpl.<init>(ConnectionImpl.java:448) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.ConnectionImpl.getInstance(ConnectionImpl.java:241) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.NonRegisteringDriver.connect(NonRegisteringDriver.java:198) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.zaxxer.hikari.util.DriverDataSource.getConnection(DriverDataSource.java:138) ~[HikariCP-4.0.3.jar:na]
	at com.zaxxer.hikari.pool.PoolBase.newConnection(PoolBase.java:364) ~[HikariCP-4.0.3.jar:na]
	at com.zaxxer.hikari.pool.PoolBase.newPoolEntry(PoolBase.java:206) ~[HikariCP-4.0.3.jar:na]
	at com.zaxxer.hikari.pool.HikariPool.createPoolEntry(HikariPool.java:476) ~[HikariCP-4.0.3.jar:na]
	at com.zaxxer.hikari.pool.HikariPool.checkFailFast(HikariPool.java:561) ~[HikariCP-4.0.3.jar:na]
	at com.zaxxer.hikari.pool.HikariPool.<init>(HikariPool.java:115) ~[HikariCP-4.0.3.jar:na]
	at com.zaxxer.hikari.HikariDataSource.getConnection(HikariDataSource.java:112) ~[HikariCP-4.0.3.jar:na]
	at org.springframework.jdbc.datasource.lookup.AbstractRoutingDataSource.getConnection(AbstractRoutingDataSource.java:194) ~[spring-jdbc-5.3.24.jar:5.3.24]
	at org.springframework.jdbc.datasource.LazyConnectionDataSourceProxy$LazyConnectionInvocationHandler.getTargetConnection(LazyConnectionDataSourceProxy.java:405) ~[spring-jdbc-5.3.24.jar:5.3.24]
	at org.springframework.jdbc.datasource.LazyConnectionDataSourceProxy$LazyConnectionInvocationHandler.invoke(LazyConnectionDataSourceProxy.java:378) ~[spring-jdbc-5.3.24.jar:5.3.24]
	at com.sun.proxy.$Proxy92.getMetaData(Unknown Source) ~[na:na]
	at org.hibernate.engine.jdbc.env.internal.JdbcEnvironmentInitiator.initiateService(JdbcEnvironmentInitiator.java:70) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.engine.jdbc.env.internal.JdbcEnvironmentInitiator.initiateService(JdbcEnvironmentInitiator.java:35) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.boot.registry.internal.StandardServiceRegistryImpl.initiateService(StandardServiceRegistryImpl.java:101) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.service.internal.AbstractServiceRegistryImpl.createService(AbstractServiceRegistryImpl.java:263) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.service.internal.AbstractServiceRegistryImpl.initializeService(AbstractServiceRegistryImpl.java:237) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.service.internal.AbstractServiceRegistryImpl.getService(AbstractServiceRegistryImpl.java:214) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.id.factory.internal.DefaultIdentifierGeneratorFactory.injectServices(DefaultIdentifierGeneratorFactory.java:175) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.service.internal.AbstractServiceRegistryImpl.injectDependencies(AbstractServiceRegistryImpl.java:286) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.service.internal.AbstractServiceRegistryImpl.initializeService(AbstractServiceRegistryImpl.java:243) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.service.internal.AbstractServiceRegistryImpl.getService(AbstractServiceRegistryImpl.java:214) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.boot.internal.InFlightMetadataCollectorImpl.<init>(InFlightMetadataCollectorImpl.java:173) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.boot.model.process.spi.MetadataBuildingProcess.complete(MetadataBuildingProcess.java:127) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.jpa.boot.internal.EntityManagerFactoryBuilderImpl.metadata(EntityManagerFactoryBuilderImpl.java:1460) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.jpa.boot.internal.EntityManagerFactoryBuilderImpl.build(EntityManagerFactoryBuilderImpl.java:1494) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.springframework.orm.jpa.vendor.SpringHibernateJpaPersistenceProvider.createContainerEntityManagerFactory(SpringHibernateJpaPersistenceProvider.java:58) ~[spring-orm-5.3.24.jar:5.3.24]
	at org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean.createNativeEntityManagerFactory(LocalContainerEntityManagerFactoryBean.java:365) ~[spring-orm-5.3.24.jar:5.3.24]
	at org.springframework.orm.jpa.AbstractEntityManagerFactoryBean.buildNativeEntityManagerFactory(AbstractEntityManagerFactoryBean.java:409) ~[spring-orm-5.3.24.jar:5.3.24]
	at org.springframework.orm.jpa.AbstractEntityManagerFactoryBean.afterPropertiesSet(AbstractEntityManagerFactoryBean.java:396) ~[spring-orm-5.3.24.jar:5.3.24]
	at org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean.afterPropertiesSet(LocalContainerEntityManagerFactoryBean.java:341) ~[spring-orm-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.invokeInitMethods(AbstractAutowireCapableBeanFactory.java:1863) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.initializeBean(AbstractAutowireCapableBeanFactory.java:1800) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:620) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:542) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:335) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:234) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:333) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:208) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.context.support.AbstractApplicationContext.getBean(AbstractApplicationContext.java:1154) ~[spring-context-5.3.24.jar:5.3.24]
	at org.springframework.context.support.AbstractApplicationContext.finishBeanFactoryInitialization(AbstractApplicationContext.java:908) ~[spring-context-5.3.24.jar:5.3.24]
	at org.springframework.context.support.AbstractApplicationContext.refresh(AbstractApplicationContext.java:583) ~[spring-context-5.3.24.jar:5.3.24]
	at org.springframework.boot.web.servlet.context.ServletWebServerApplicationContext.refresh(ServletWebServerApplicationContext.java:147) ~[spring-boot-2.7.6.jar:2.7.6]
	at org.springframework.boot.SpringApplication.refresh(SpringApplication.java:731) ~[spring-boot-2.7.6.jar:2.7.6]
	at org.springframework.boot.SpringApplication.refreshContext(SpringApplication.java:408) ~[spring-boot-2.7.6.jar:2.7.6]
	at org.springframework.boot.SpringApplication.run(SpringApplication.java:307) ~[spring-boot-2.7.6.jar:2.7.6]
	at org.springframework.boot.SpringApplication.run(SpringApplication.java:1303) ~[spring-boot-2.7.6.jar:2.7.6]
	at org.springframework.boot.SpringApplication.run(SpringApplication.java:1292) ~[spring-boot-2.7.6.jar:2.7.6]
	at com.junyharang.duplication_test.DuplicationTestApplication.main(DuplicationTestApplication.java:11) ~[main/:na]
Caused by: com.mysql.cj.exceptions.CJCommunicationsException: Communications link failure

The last packet sent successfully to the server was 0 milliseconds ago. The driver has not received any packets from the server.
	at java.base/jdk.internal.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method) ~[na:na]
	at java.base/jdk.internal.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:62) ~[na:na]
	at java.base/jdk.internal.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:45) ~[na:na]
	at java.base/java.lang.reflect.Constructor.newInstance(Constructor.java:490) ~[na:na]
	at com.mysql.cj.exceptions.ExceptionFactory.createException(ExceptionFactory.java:61) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.exceptions.ExceptionFactory.createException(ExceptionFactory.java:105) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.exceptions.ExceptionFactory.createException(ExceptionFactory.java:151) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.exceptions.ExceptionFactory.createCommunicationsException(ExceptionFactory.java:167) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.protocol.a.NativeSocketConnection.connect(NativeSocketConnection.java:89) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.NativeSession.connect(NativeSession.java:120) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.ConnectionImpl.connectOneTryOnly(ConnectionImpl.java:948) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.ConnectionImpl.createNewIO(ConnectionImpl.java:818) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	... 51 common frames omitted
Caused by: java.net.SocketTimeoutException: connect timed out
	at java.base/java.net.PlainSocketImpl.socketConnect(Native Method) ~[na:na]
	at java.base/java.net.AbstractPlainSocketImpl.doConnect(AbstractPlainSocketImpl.java:412) ~[na:na]
	at java.base/java.net.AbstractPlainSocketImpl.connectToAddress(AbstractPlainSocketImpl.java:255) ~[na:na]
	at java.base/java.net.AbstractPlainSocketImpl.connect(AbstractPlainSocketImpl.java:237) ~[na:na]
	at java.base/java.net.SocksSocketImpl.connect(SocksSocketImpl.java:392) ~[na:na]
	at java.base/java.net.Socket.connect(Socket.java:615) ~[na:na]
	at com.mysql.cj.protocol.StandardSocketFactory.connect(StandardSocketFactory.java:153) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.protocol.a.NativeSocketConnection.connect(NativeSocketConnection.java:63) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	... 54 common frames omitted

2022-11-30 21:16:33.431  WARN 9710 --- [           main] o.h.e.j.e.i.JdbcEnvironmentInitiator     : HHH000339: Could not obtain connection metadata: com.mysql.cj.jdbc.exceptions.CommunicationsException: Communications link failure

The last packet sent successfully to the server was 0 milliseconds ago. The driver has not received any packets from the server.
2022-11-30 21:16:33.452  INFO 9710 --- [           main] org.hibernate.dialect.Dialect            : HHH000400: Using dialect: org.hibernate.dialect.MySQL5InnoDBDialect
Hibernate:

    drop table if exists board
2022-11-30 21:16:33.713  INFO 9710 --- [           main] com.zaxxer.hikari.HikariDataSource       : HikariPool-1 - Starting...
2022-11-30 21:17:04.717 ERROR 9710 --- [           main] com.zaxxer.hikari.pool.HikariPool        : HikariPool-1 - Exception during pool initialization.

com.mysql.cj.jdbc.exceptions.CommunicationsException: Communications link failure

The last packet sent successfully to the server was 0 milliseconds ago. The driver has not received any packets from the server.
	at com.mysql.cj.jdbc.exceptions.SQLError.createCommunicationsException(SQLError.java:174) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.exceptions.SQLExceptionsMapping.translateException(SQLExceptionsMapping.java:64) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.ConnectionImpl.createNewIO(ConnectionImpl.java:828) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.ConnectionImpl.<init>(ConnectionImpl.java:448) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.ConnectionImpl.getInstance(ConnectionImpl.java:241) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.NonRegisteringDriver.connect(NonRegisteringDriver.java:198) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.zaxxer.hikari.util.DriverDataSource.getConnection(DriverDataSource.java:138) ~[HikariCP-4.0.3.jar:na]
	at com.zaxxer.hikari.pool.PoolBase.newConnection(PoolBase.java:364) ~[HikariCP-4.0.3.jar:na]
	at com.zaxxer.hikari.pool.PoolBase.newPoolEntry(PoolBase.java:206) ~[HikariCP-4.0.3.jar:na]
	at com.zaxxer.hikari.pool.HikariPool.createPoolEntry(HikariPool.java:476) ~[HikariCP-4.0.3.jar:na]
	at com.zaxxer.hikari.pool.HikariPool.checkFailFast(HikariPool.java:561) ~[HikariCP-4.0.3.jar:na]
	at com.zaxxer.hikari.pool.HikariPool.<init>(HikariPool.java:115) ~[HikariCP-4.0.3.jar:na]
	at com.zaxxer.hikari.HikariDataSource.getConnection(HikariDataSource.java:112) ~[HikariCP-4.0.3.jar:na]
	at org.springframework.jdbc.datasource.lookup.AbstractRoutingDataSource.getConnection(AbstractRoutingDataSource.java:194) ~[spring-jdbc-5.3.24.jar:5.3.24]
	at org.springframework.jdbc.datasource.LazyConnectionDataSourceProxy$LazyConnectionInvocationHandler.getTargetConnection(LazyConnectionDataSourceProxy.java:405) ~[spring-jdbc-5.3.24.jar:5.3.24]
	at org.springframework.jdbc.datasource.LazyConnectionDataSourceProxy$LazyConnectionInvocationHandler.invoke(LazyConnectionDataSourceProxy.java:378) ~[spring-jdbc-5.3.24.jar:5.3.24]
	at com.sun.proxy.$Proxy92.getAutoCommit(Unknown Source) ~[na:na]
	at org.hibernate.resource.transaction.backend.jdbc.internal.DdlTransactionIsolatorNonJtaImpl.getIsolatedConnection(DdlTransactionIsolatorNonJtaImpl.java:47) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.tool.schema.internal.exec.GenerationTargetToDatabase.jdbcStatement(GenerationTargetToDatabase.java:77) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.tool.schema.internal.exec.GenerationTargetToDatabase.accept(GenerationTargetToDatabase.java:53) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.tool.schema.internal.SchemaDropperImpl.applySqlString(SchemaDropperImpl.java:387) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.tool.schema.internal.SchemaDropperImpl.applySqlStrings(SchemaDropperImpl.java:371) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.tool.schema.internal.SchemaDropperImpl.dropFromMetadata(SchemaDropperImpl.java:246) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.tool.schema.internal.SchemaDropperImpl.performDrop(SchemaDropperImpl.java:156) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.tool.schema.internal.SchemaDropperImpl.doDrop(SchemaDropperImpl.java:128) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.tool.schema.internal.SchemaDropperImpl.doDrop(SchemaDropperImpl.java:114) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.tool.schema.spi.SchemaManagementToolCoordinator.performDatabaseAction(SchemaManagementToolCoordinator.java:157) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.tool.schema.spi.SchemaManagementToolCoordinator.process(SchemaManagementToolCoordinator.java:85) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.internal.SessionFactoryImpl.<init>(SessionFactoryImpl.java:335) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.boot.internal.SessionFactoryBuilderImpl.build(SessionFactoryBuilderImpl.java:471) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.jpa.boot.internal.EntityManagerFactoryBuilderImpl.build(EntityManagerFactoryBuilderImpl.java:1498) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.springframework.orm.jpa.vendor.SpringHibernateJpaPersistenceProvider.createContainerEntityManagerFactory(SpringHibernateJpaPersistenceProvider.java:58) ~[spring-orm-5.3.24.jar:5.3.24]
	at org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean.createNativeEntityManagerFactory(LocalContainerEntityManagerFactoryBean.java:365) ~[spring-orm-5.3.24.jar:5.3.24]
	at org.springframework.orm.jpa.AbstractEntityManagerFactoryBean.buildNativeEntityManagerFactory(AbstractEntityManagerFactoryBean.java:409) ~[spring-orm-5.3.24.jar:5.3.24]
	at org.springframework.orm.jpa.AbstractEntityManagerFactoryBean.afterPropertiesSet(AbstractEntityManagerFactoryBean.java:396) ~[spring-orm-5.3.24.jar:5.3.24]
	at org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean.afterPropertiesSet(LocalContainerEntityManagerFactoryBean.java:341) ~[spring-orm-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.invokeInitMethods(AbstractAutowireCapableBeanFactory.java:1863) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.initializeBean(AbstractAutowireCapableBeanFactory.java:1800) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:620) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:542) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:335) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:234) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:333) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:208) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.context.support.AbstractApplicationContext.getBean(AbstractApplicationContext.java:1154) ~[spring-context-5.3.24.jar:5.3.24]
	at org.springframework.context.support.AbstractApplicationContext.finishBeanFactoryInitialization(AbstractApplicationContext.java:908) ~[spring-context-5.3.24.jar:5.3.24]
	at org.springframework.context.support.AbstractApplicationContext.refresh(AbstractApplicationContext.java:583) ~[spring-context-5.3.24.jar:5.3.24]
	at org.springframework.boot.web.servlet.context.ServletWebServerApplicationContext.refresh(ServletWebServerApplicationContext.java:147) ~[spring-boot-2.7.6.jar:2.7.6]
	at org.springframework.boot.SpringApplication.refresh(SpringApplication.java:731) ~[spring-boot-2.7.6.jar:2.7.6]
	at org.springframework.boot.SpringApplication.refreshContext(SpringApplication.java:408) ~[spring-boot-2.7.6.jar:2.7.6]
	at org.springframework.boot.SpringApplication.run(SpringApplication.java:307) ~[spring-boot-2.7.6.jar:2.7.6]
	at org.springframework.boot.SpringApplication.run(SpringApplication.java:1303) ~[spring-boot-2.7.6.jar:2.7.6]
	at org.springframework.boot.SpringApplication.run(SpringApplication.java:1292) ~[spring-boot-2.7.6.jar:2.7.6]
	at com.junyharang.duplication_test.DuplicationTestApplication.main(DuplicationTestApplication.java:11) ~[main/:na]
Caused by: com.mysql.cj.exceptions.CJCommunicationsException: Communications link failure

The last packet sent successfully to the server was 0 milliseconds ago. The driver has not received any packets from the server.
	at java.base/jdk.internal.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method) ~[na:na]
	at java.base/jdk.internal.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:62) ~[na:na]
	at java.base/jdk.internal.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:45) ~[na:na]
	at java.base/java.lang.reflect.Constructor.newInstance(Constructor.java:490) ~[na:na]
	at com.mysql.cj.exceptions.ExceptionFactory.createException(ExceptionFactory.java:61) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.exceptions.ExceptionFactory.createException(ExceptionFactory.java:105) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.exceptions.ExceptionFactory.createException(ExceptionFactory.java:151) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.exceptions.ExceptionFactory.createCommunicationsException(ExceptionFactory.java:167) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.protocol.a.NativeSocketConnection.connect(NativeSocketConnection.java:89) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.NativeSession.connect(NativeSession.java:120) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.ConnectionImpl.connectOneTryOnly(ConnectionImpl.java:948) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.ConnectionImpl.createNewIO(ConnectionImpl.java:818) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	... 51 common frames omitted
Caused by: java.net.SocketTimeoutException: connect timed out
	at java.base/java.net.PlainSocketImpl.socketConnect(Native Method) ~[na:na]
	at java.base/java.net.AbstractPlainSocketImpl.doConnect(AbstractPlainSocketImpl.java:412) ~[na:na]
	at java.base/java.net.AbstractPlainSocketImpl.connectToAddress(AbstractPlainSocketImpl.java:255) ~[na:na]
	at java.base/java.net.AbstractPlainSocketImpl.connect(AbstractPlainSocketImpl.java:237) ~[na:na]
	at java.base/java.net.SocksSocketImpl.connect(SocksSocketImpl.java:392) ~[na:na]
	at java.base/java.net.Socket.connect(Socket.java:615) ~[na:na]
	at com.mysql.cj.protocol.StandardSocketFactory.connect(StandardSocketFactory.java:153) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.protocol.a.NativeSocketConnection.connect(NativeSocketConnection.java:63) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	... 54 common frames omitted

2022-11-30 21:17:04.719  WARN 9710 --- [           main] o.h.engine.jdbc.spi.SqlExceptionHelper   : SQL Error: 0, SQLState: 08S01
2022-11-30 21:17:04.719 ERROR 9710 --- [           main] o.h.engine.jdbc.spi.SqlExceptionHelper   : Communications link failure

The last packet sent successfully to the server was 0 milliseconds ago. The driver has not received any packets from the server.
2022-11-30 21:17:04.727 ERROR 9710 --- [           main] j.LocalContainerEntityManagerFactoryBean : Failed to initialize JPA EntityManagerFactory: [PersistenceUnit: default] Unable to build Hibernate SessionFactory; nested exception is org.hibernate.exception.JDBCConnectionException: Unable to check JDBC Connection auto-commit in preparation for DDL execution
2022-11-30 21:17:04.730  WARN 9710 --- [           main] ConfigServletWebServerApplicationContext : Exception encountered during context initialization - cancelling refresh attempt: org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'entityManagerFactory' defined in class path resource [org/springframework/boot/autoconfigure/orm/jpa/HibernateJpaConfiguration.class]: Invocation of init method failed; nested exception is javax.persistence.PersistenceException: [PersistenceUnit: default] Unable to build Hibernate SessionFactory; nested exception is org.hibernate.exception.JDBCConnectionException: Unable to check JDBC Connection auto-commit in preparation for DDL execution
2022-11-30 21:17:04.732  INFO 9710 --- [           main] o.apache.catalina.core.StandardService   : Stopping service [Tomcat]
2022-11-30 21:17:04.745  INFO 9710 --- [           main] ConditionEvaluationReportLoggingListener :

Error starting ApplicationContext. To display the conditions report re-run your application with 'debug' enabled.
2022-11-30 21:17:04.764 ERROR 9710 --- [           main] o.s.boot.SpringApplication               : Application run failed

org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'entityManagerFactory' defined in class path resource [org/springframework/boot/autoconfigure/orm/jpa/HibernateJpaConfiguration.class]: Invocation of init method failed; nested exception is javax.persistence.PersistenceException: [PersistenceUnit: default] Unable to build Hibernate SessionFactory; nested exception is org.hibernate.exception.JDBCConnectionException: Unable to check JDBC Connection auto-commit in preparation for DDL execution
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.initializeBean(AbstractAutowireCapableBeanFactory.java:1804) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:620) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:542) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:335) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:234) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:333) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:208) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.context.support.AbstractApplicationContext.getBean(AbstractApplicationContext.java:1154) ~[spring-context-5.3.24.jar:5.3.24]
	at org.springframework.context.support.AbstractApplicationContext.finishBeanFactoryInitialization(AbstractApplicationContext.java:908) ~[spring-context-5.3.24.jar:5.3.24]
	at org.springframework.context.support.AbstractApplicationContext.refresh(AbstractApplicationContext.java:583) ~[spring-context-5.3.24.jar:5.3.24]
	at org.springframework.boot.web.servlet.context.ServletWebServerApplicationContext.refresh(ServletWebServerApplicationContext.java:147) ~[spring-boot-2.7.6.jar:2.7.6]
	at org.springframework.boot.SpringApplication.refresh(SpringApplication.java:731) ~[spring-boot-2.7.6.jar:2.7.6]
	at org.springframework.boot.SpringApplication.refreshContext(SpringApplication.java:408) ~[spring-boot-2.7.6.jar:2.7.6]
	at org.springframework.boot.SpringApplication.run(SpringApplication.java:307) ~[spring-boot-2.7.6.jar:2.7.6]
	at org.springframework.boot.SpringApplication.run(SpringApplication.java:1303) ~[spring-boot-2.7.6.jar:2.7.6]
	at org.springframework.boot.SpringApplication.run(SpringApplication.java:1292) ~[spring-boot-2.7.6.jar:2.7.6]
	at com.junyharang.duplication_test.DuplicationTestApplication.main(DuplicationTestApplication.java:11) ~[main/:na]
Caused by: javax.persistence.PersistenceException: [PersistenceUnit: default] Unable to build Hibernate SessionFactory; nested exception is org.hibernate.exception.JDBCConnectionException: Unable to check JDBC Connection auto-commit in preparation for DDL execution
	at org.springframework.orm.jpa.AbstractEntityManagerFactoryBean.buildNativeEntityManagerFactory(AbstractEntityManagerFactoryBean.java:421) ~[spring-orm-5.3.24.jar:5.3.24]
	at org.springframework.orm.jpa.AbstractEntityManagerFactoryBean.afterPropertiesSet(AbstractEntityManagerFactoryBean.java:396) ~[spring-orm-5.3.24.jar:5.3.24]
	at org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean.afterPropertiesSet(LocalContainerEntityManagerFactoryBean.java:341) ~[spring-orm-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.invokeInitMethods(AbstractAutowireCapableBeanFactory.java:1863) ~[spring-beans-5.3.24.jar:5.3.24]
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.initializeBean(AbstractAutowireCapableBeanFactory.java:1800) ~[spring-beans-5.3.24.jar:5.3.24]
	... 16 common frames omitted
Caused by: org.hibernate.exception.JDBCConnectionException: Unable to check JDBC Connection auto-commit in preparation for DDL execution
	at org.hibernate.exception.internal.SQLStateConversionDelegate.convert(SQLStateConversionDelegate.java:112) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.exception.internal.StandardSQLExceptionConverter.convert(StandardSQLExceptionConverter.java:37) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.engine.jdbc.spi.SqlExceptionHelper.convert(SqlExceptionHelper.java:113) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.engine.jdbc.spi.SqlExceptionHelper.convert(SqlExceptionHelper.java:99) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.resource.transaction.backend.jdbc.internal.DdlTransactionIsolatorNonJtaImpl.getIsolatedConnection(DdlTransactionIsolatorNonJtaImpl.java:64) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.tool.schema.internal.exec.GenerationTargetToDatabase.jdbcStatement(GenerationTargetToDatabase.java:77) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.tool.schema.internal.exec.GenerationTargetToDatabase.accept(GenerationTargetToDatabase.java:53) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.tool.schema.internal.SchemaDropperImpl.applySqlString(SchemaDropperImpl.java:387) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.tool.schema.internal.SchemaDropperImpl.applySqlStrings(SchemaDropperImpl.java:371) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.tool.schema.internal.SchemaDropperImpl.dropFromMetadata(SchemaDropperImpl.java:246) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.tool.schema.internal.SchemaDropperImpl.performDrop(SchemaDropperImpl.java:156) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.tool.schema.internal.SchemaDropperImpl.doDrop(SchemaDropperImpl.java:128) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.tool.schema.internal.SchemaDropperImpl.doDrop(SchemaDropperImpl.java:114) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.tool.schema.spi.SchemaManagementToolCoordinator.performDatabaseAction(SchemaManagementToolCoordinator.java:157) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.tool.schema.spi.SchemaManagementToolCoordinator.process(SchemaManagementToolCoordinator.java:85) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.internal.SessionFactoryImpl.<init>(SessionFactoryImpl.java:335) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.boot.internal.SessionFactoryBuilderImpl.build(SessionFactoryBuilderImpl.java:471) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.hibernate.jpa.boot.internal.EntityManagerFactoryBuilderImpl.build(EntityManagerFactoryBuilderImpl.java:1498) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	at org.springframework.orm.jpa.vendor.SpringHibernateJpaPersistenceProvider.createContainerEntityManagerFactory(SpringHibernateJpaPersistenceProvider.java:58) ~[spring-orm-5.3.24.jar:5.3.24]
	at org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean.createNativeEntityManagerFactory(LocalContainerEntityManagerFactoryBean.java:365) ~[spring-orm-5.3.24.jar:5.3.24]
	at org.springframework.orm.jpa.AbstractEntityManagerFactoryBean.buildNativeEntityManagerFactory(AbstractEntityManagerFactoryBean.java:409) ~[spring-orm-5.3.24.jar:5.3.24]
	... 20 common frames omitted
Caused by: com.mysql.cj.jdbc.exceptions.CommunicationsException: Communications link failure

The last packet sent successfully to the server was 0 milliseconds ago. The driver has not received any packets from the server.
	at com.mysql.cj.jdbc.exceptions.SQLError.createCommunicationsException(SQLError.java:174) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.exceptions.SQLExceptionsMapping.translateException(SQLExceptionsMapping.java:64) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.ConnectionImpl.createNewIO(ConnectionImpl.java:828) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.ConnectionImpl.<init>(ConnectionImpl.java:448) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.ConnectionImpl.getInstance(ConnectionImpl.java:241) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.NonRegisteringDriver.connect(NonRegisteringDriver.java:198) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.zaxxer.hikari.util.DriverDataSource.getConnection(DriverDataSource.java:138) ~[HikariCP-4.0.3.jar:na]
	at com.zaxxer.hikari.pool.PoolBase.newConnection(PoolBase.java:364) ~[HikariCP-4.0.3.jar:na]
	at com.zaxxer.hikari.pool.PoolBase.newPoolEntry(PoolBase.java:206) ~[HikariCP-4.0.3.jar:na]
	at com.zaxxer.hikari.pool.HikariPool.createPoolEntry(HikariPool.java:476) ~[HikariCP-4.0.3.jar:na]
	at com.zaxxer.hikari.pool.HikariPool.checkFailFast(HikariPool.java:561) ~[HikariCP-4.0.3.jar:na]
	at com.zaxxer.hikari.pool.HikariPool.<init>(HikariPool.java:115) ~[HikariCP-4.0.3.jar:na]
	at com.zaxxer.hikari.HikariDataSource.getConnection(HikariDataSource.java:112) ~[HikariCP-4.0.3.jar:na]
	at org.springframework.jdbc.datasource.lookup.AbstractRoutingDataSource.getConnection(AbstractRoutingDataSource.java:194) ~[spring-jdbc-5.3.24.jar:5.3.24]
	at org.springframework.jdbc.datasource.LazyConnectionDataSourceProxy$LazyConnectionInvocationHandler.getTargetConnection(LazyConnectionDataSourceProxy.java:405) ~[spring-jdbc-5.3.24.jar:5.3.24]
	at org.springframework.jdbc.datasource.LazyConnectionDataSourceProxy$LazyConnectionInvocationHandler.invoke(LazyConnectionDataSourceProxy.java:378) ~[spring-jdbc-5.3.24.jar:5.3.24]
	at com.sun.proxy.$Proxy92.getAutoCommit(Unknown Source) ~[na:na]
	at org.hibernate.resource.transaction.backend.jdbc.internal.DdlTransactionIsolatorNonJtaImpl.getIsolatedConnection(DdlTransactionIsolatorNonJtaImpl.java:47) ~[hibernate-core-5.6.14.Final.jar:5.6.14.Final]
	... 36 common frames omitted
Caused by: com.mysql.cj.exceptions.CJCommunicationsException: Communications link failure

The last packet sent successfully to the server was 0 milliseconds ago. The driver has not received any packets from the server.
	at java.base/jdk.internal.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method) ~[na:na]
	at java.base/jdk.internal.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:62) ~[na:na]
	at java.base/jdk.internal.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:45) ~[na:na]
	at java.base/java.lang.reflect.Constructor.newInstance(Constructor.java:490) ~[na:na]
	at com.mysql.cj.exceptions.ExceptionFactory.createException(ExceptionFactory.java:61) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.exceptions.ExceptionFactory.createException(ExceptionFactory.java:105) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.exceptions.ExceptionFactory.createException(ExceptionFactory.java:151) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.exceptions.ExceptionFactory.createCommunicationsException(ExceptionFactory.java:167) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.protocol.a.NativeSocketConnection.connect(NativeSocketConnection.java:89) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.NativeSession.connect(NativeSession.java:120) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.ConnectionImpl.connectOneTryOnly(ConnectionImpl.java:948) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.jdbc.ConnectionImpl.createNewIO(ConnectionImpl.java:818) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	... 51 common frames omitted
Caused by: java.net.SocketTimeoutException: connect timed out
	at java.base/java.net.PlainSocketImpl.socketConnect(Native Method) ~[na:na]
	at java.base/java.net.AbstractPlainSocketImpl.doConnect(AbstractPlainSocketImpl.java:412) ~[na:na]
	at java.base/java.net.AbstractPlainSocketImpl.connectToAddress(AbstractPlainSocketImpl.java:255) ~[na:na]
	at java.base/java.net.AbstractPlainSocketImpl.connect(AbstractPlainSocketImpl.java:237) ~[na:na]
	at java.base/java.net.SocksSocketImpl.connect(SocksSocketImpl.java:392) ~[na:na]
	at java.base/java.net.Socket.connect(Socket.java:615) ~[na:na]
	at com.mysql.cj.protocol.StandardSocketFactory.connect(StandardSocketFactory.java:153) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	at com.mysql.cj.protocol.a.NativeSocketConnection.connect(NativeSocketConnection.java:63) ~[mysql-connector-j-8.0.31.jar:8.0.31]
	... 54 common frames omitted

대상 VM에서 연결 해제되었습니다. 주소: '127.0.0.1:56228', 전송: '소켓'

종료 코드 1(으)로 완료된 프로세스

해결 방안은 이 곳에 정리해 두었어요 :)

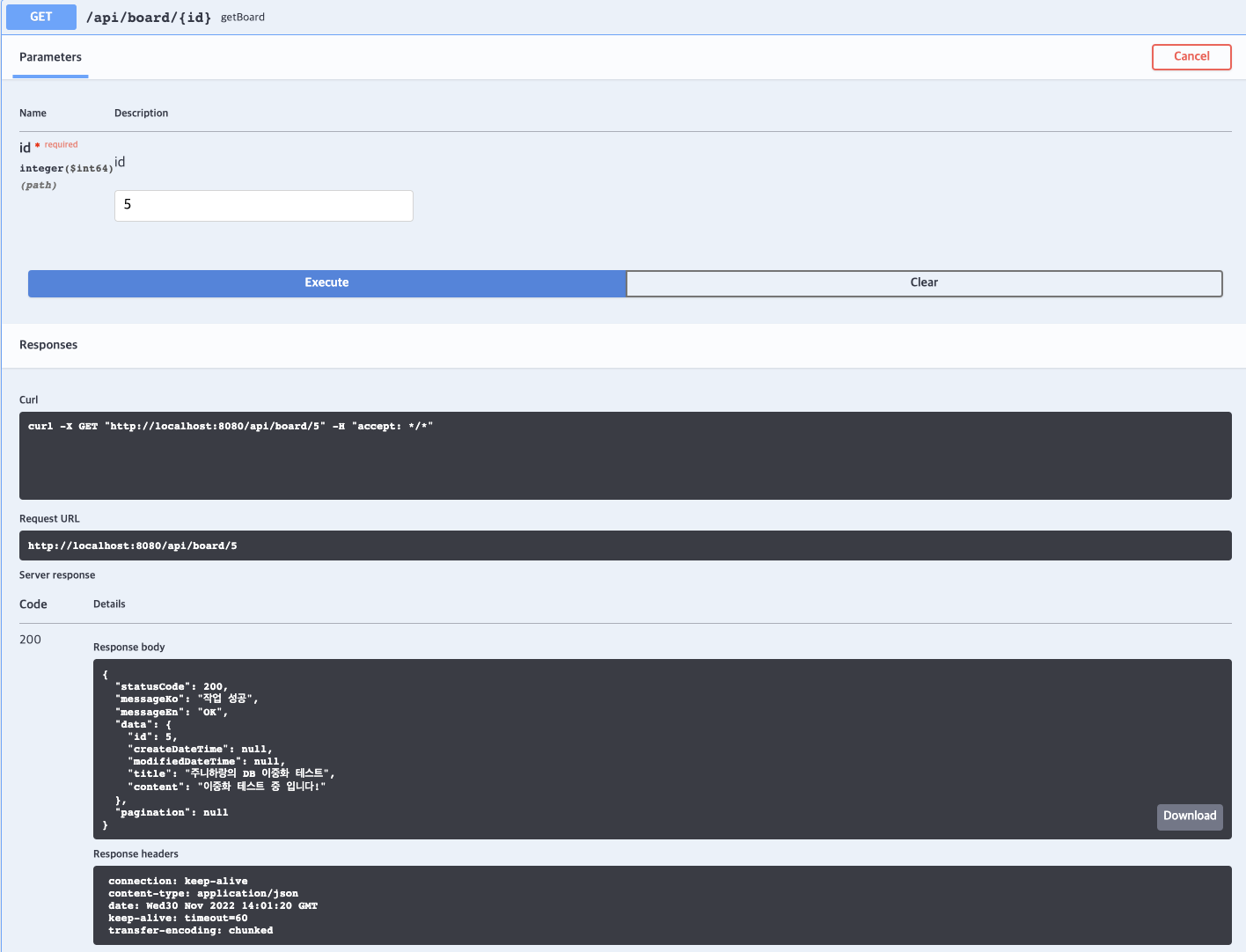

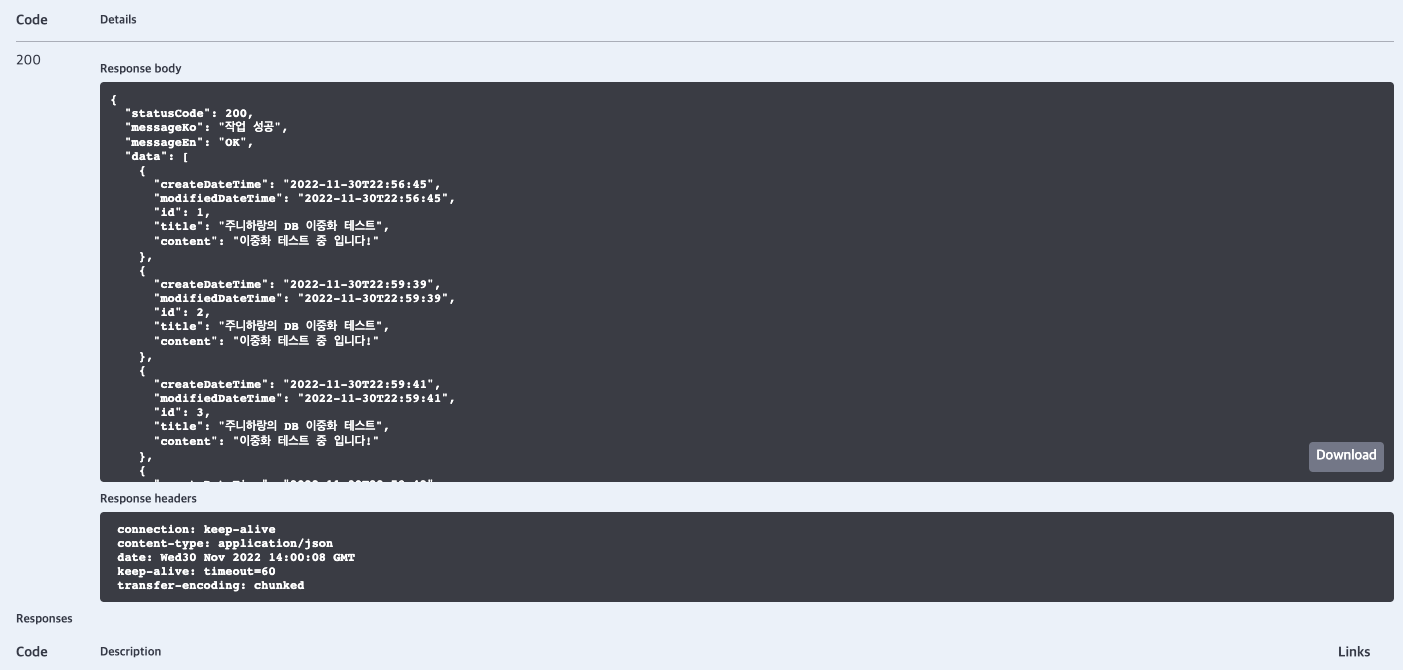

Swagger를 이용해서 값을 넣어보고, 조회를 해 볼게요.

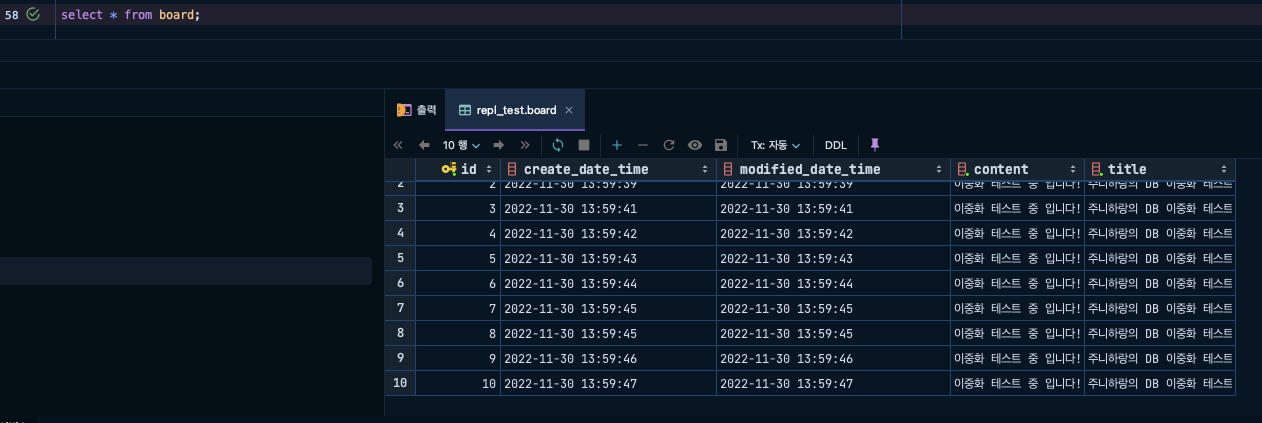

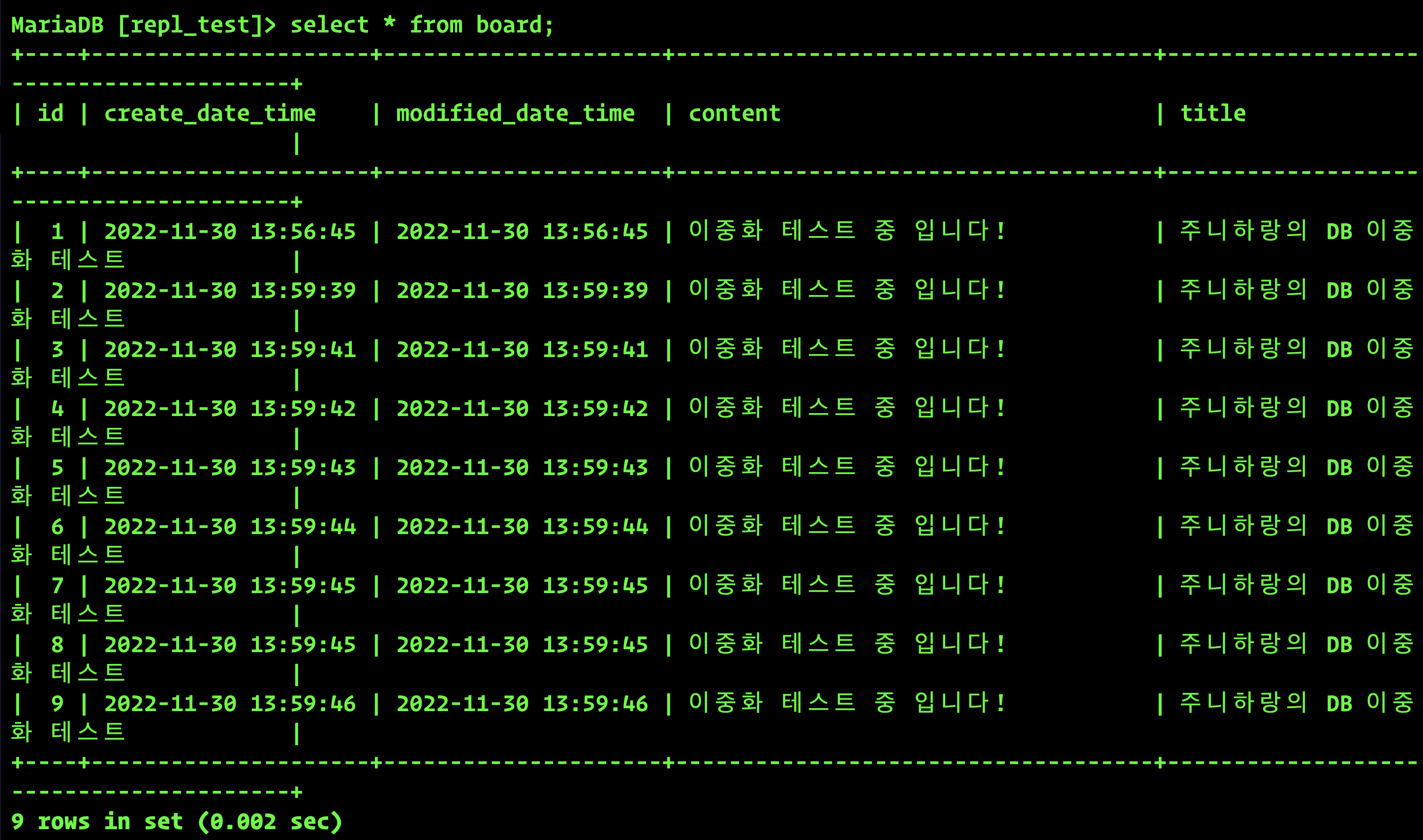

위와 같이 정상적으로 DB에 값이 들어간걸 확인할 수 있어요.

이번엔 조회를 한번 해 볼게요.

목록 조회도 정상적으로 되는 것을 확인할 수 있어요.

상세 조회도 정상적으로 되는 것을 확인할 수 있어요.

10번째 Data를 지워 보았어요.

이중화에 대한 DataSource 설정이 잘 실행되는지 확인하기 위해서
위와 같이 Delete때는 @Transactional을 붙이지 않고, 시도 하였어요.

그랬더니 위와 같이 Master DBMS에 값은 지워지지 않았고,
Slave DBMS에 10번째 Data가 지워진것을 확인할 수 있었어요.

이렇게 @Transactional을 통해서 각각의 DBMS에 역할을 분배하고, 부하를 분산 시킬 수 있다는 것을 확인하였어요.

🧐 참고 자료

[Spring-boot] Master - Slave 구조에 따른 Read, Write 분기

서론 데이터베이스를 이용한다면 대부분 쓰기보다 읽기 의 행위가 더 많습니다. DB의 부하를 줄이기 위해 다음과 같이 Master - Slave 구조를 많이 사용하는데요. 이러한 구조를 가지고 있을 때 Transe

k3068.tistory.com

자바 ORM 표준 JPA 프로그래밍:스프링 데이터 예제 프로젝트로 배우는 전자정부 표준 데이터베이

COUPANG

www.coupang.com

스프링 부트와 AWS로 혼자 구현하는 웹 서비스:인텔리제이 JPA JUnit 테스트 그레이들

COUPANG

www.coupang.com

코드로 배우는 스프링 부트 웹 프로젝트 : 현업 개발을 위한 단계별 실습서

COUPANG

www.coupang.com

코드로 배우는 스프링 웹 프로젝트:현업 개발을 위한 단계별 실습서

COUPANG

www.coupang.com

"이 포스팅은 쿠팡 파트너스 활동의 일환으로, 이에 따른 일정액의 수수료를 제공받습니다."

728x90

저작자표시 비영리 변경금지

'Back-End 작업실 > Spring Framework' 카테고리의 다른 글

[Spring Boot] MapStruct (0)	2022.12.07
[JAVA - Spring Boot] 암호화/복호화 기능 만들기 (0)	2022.12.07
[Spring Boot] Spring Security 실전 프로젝트 - 인증 프로세스 Form 인증(2) (0)	2022.08.24
[Spring Boot] Spring Security 실전 프로젝트 - 인증 프로세스 Form 인증(1) (0)	2022.08.23
[Spring Boot] Spring Security Basic - Spring Security 주요 아키택쳐 이해하기 (0)	2022.08.16

Juny's ITLog

Juny's ITLog

태그

최근글

댓글

공지사항

아카이브

🗂 목차

🚀 단방향 이중화된 Maria DB Spring Boot에서 가지고 놀기

🔽 개요

📦 설명

🔽 Project 만들기

📦 Project 생성

🔽 설정

📦 Data Base 설정

📦 application.yml

🔽 Class 생성

📦 Config Code 작성

AbstractRoutingDataSource 만들기

DataSourceConfiguration 내용 추가

🔽 검증

📦 정상 작동 여부 확인

🧐 참고 자료

'Back-End 작업실 > Spring Framework' 카테고리의 다른 글

관련글

티스토리툴바

Juny's ITLog

태그

최근글

댓글

공지사항

아카이브

🗂 목차

🚀 단방향 이중화된 Maria DB Spring Boot에서 가지고 놀기

🔽 개요

📦 설명

🔽 Project 만들기

📦 Project 생성

🔽 설정

📦 Data Base 설정

📦 application.yml

🔽 Class 생성

📦 Config Code 작성

AbstractRoutingDataSource 만들기

DataSourceConfiguration 내용 추가

🔽 검증

📦 정상 작동 여부 확인

🧐 참고 자료

'Back-End 작업실 > Spring Framework' 카테고리의 다른 글

관련글

티스토리툴바

🧐 참고 자료
