🚀 Controller Node 구성

    🔽 개요

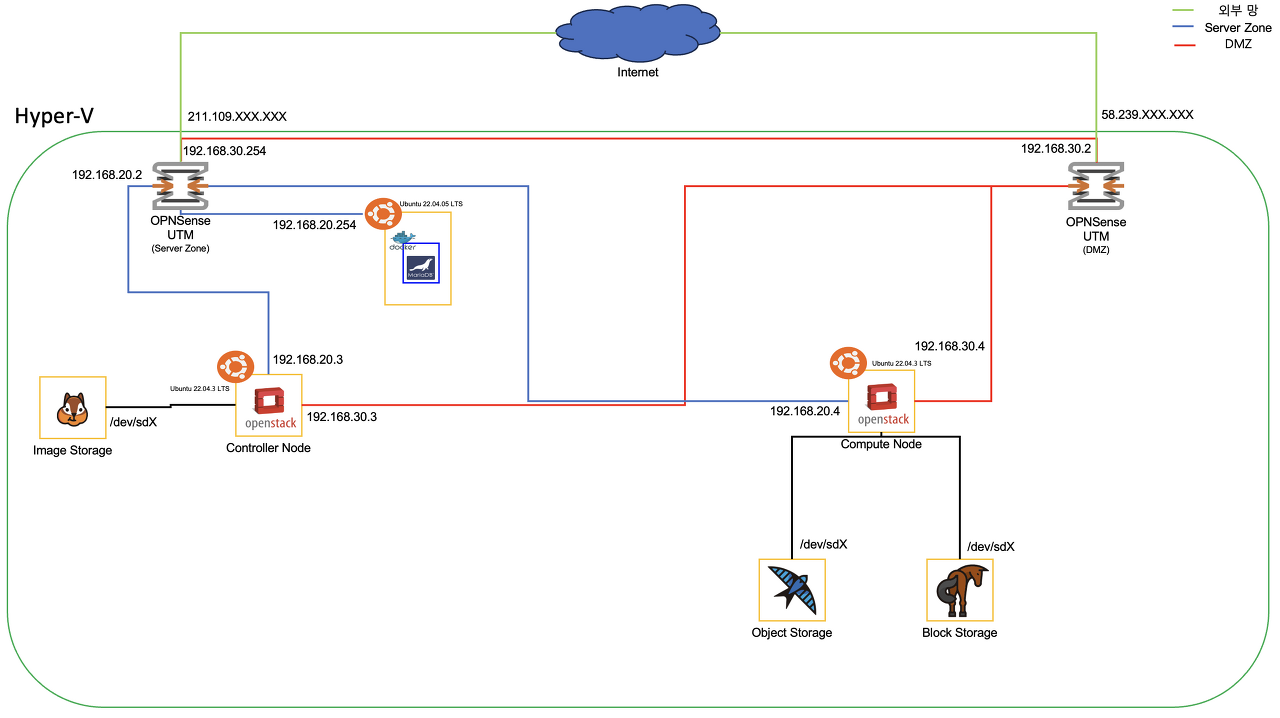

주니의 오픈스택 구성도









    🔽 구성 요소 설치 및 구성

       📦 초기 구성 - 컴퓨트 노드 (블록 스토리지 노드)

이번에는 블록 스토리지 노드 역할을 할 컴퓨트 노드에서 작업해 보도록할게요.

블록 스토리지를 따로 구성하여 블록 스토리지 노드를 구성해도 되고, 아니면 컨트롤러 노드에 구성해도 되지만, 주니는 어차피 인스턴스가 기동되고, 관리되는 컴퓨트 노드에서 모든 것이 처리되는 것이 좋겠다고 판단하여 위와 같이 구성하려고 해요.

어차피 오픈스택 서비스를 설치하면서 느낀 것은 모든 것이 모듈 단위로 설치하고, 구성해줘야 하는 부분이라 문제가 있음 따로 빼거나 할 수 있기 때문에 일단, 이렇게 구성해 보려고 해요.

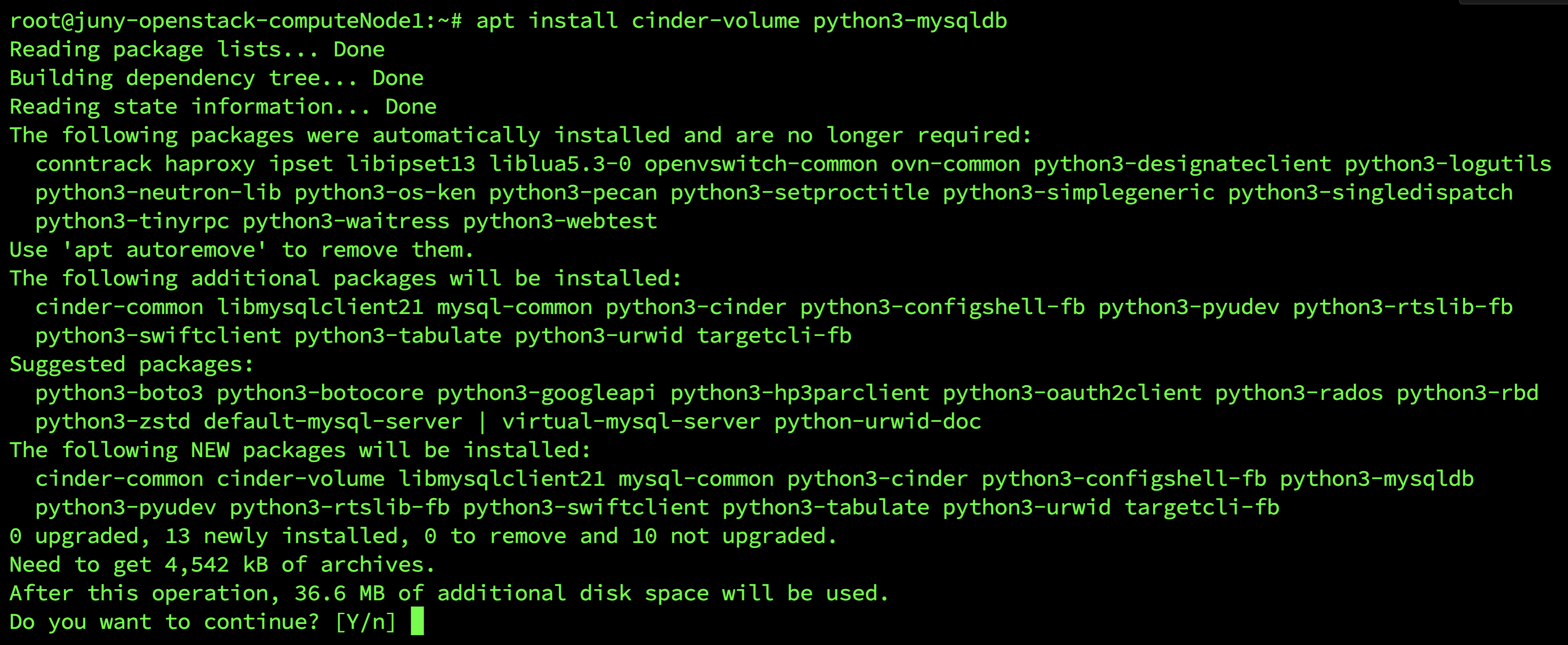

apt install cinder-volume python3-mysqldb

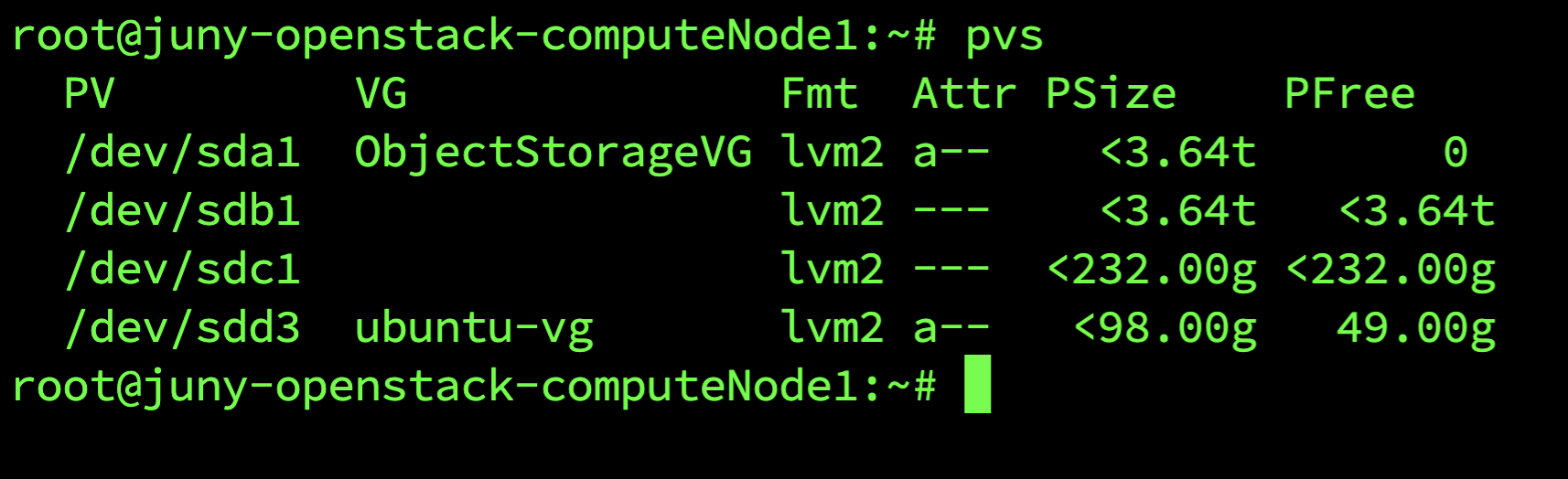

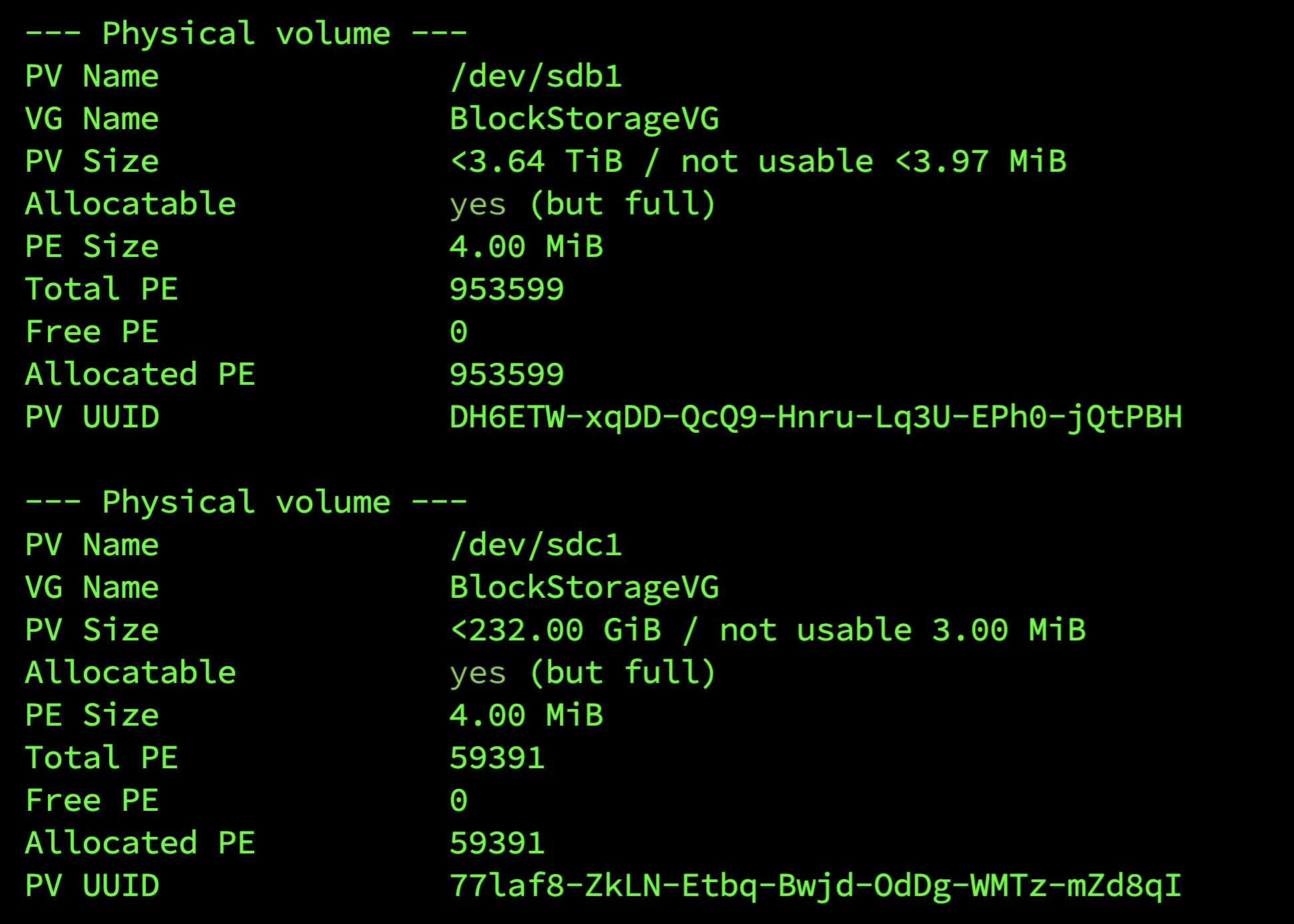

pvdisplay

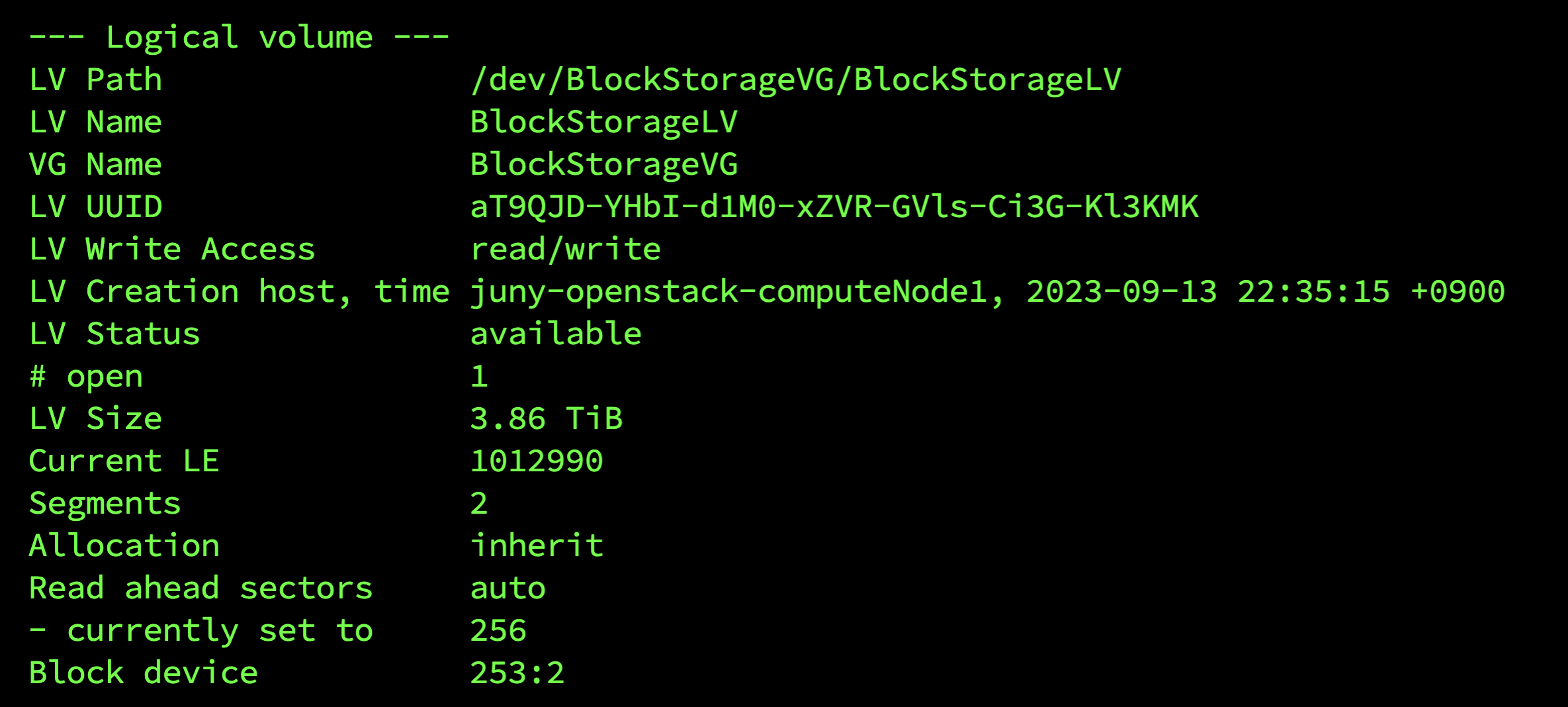

주니는 최초 컴퓨트 노드 OS 구성 및 HDD 구성 시에 위와 같이 /dev/sdb1과 /dev/sdc1을 각각 블록 스토리지로 사용하기 위해 PV, VG, LV를 잡아 주었어요.

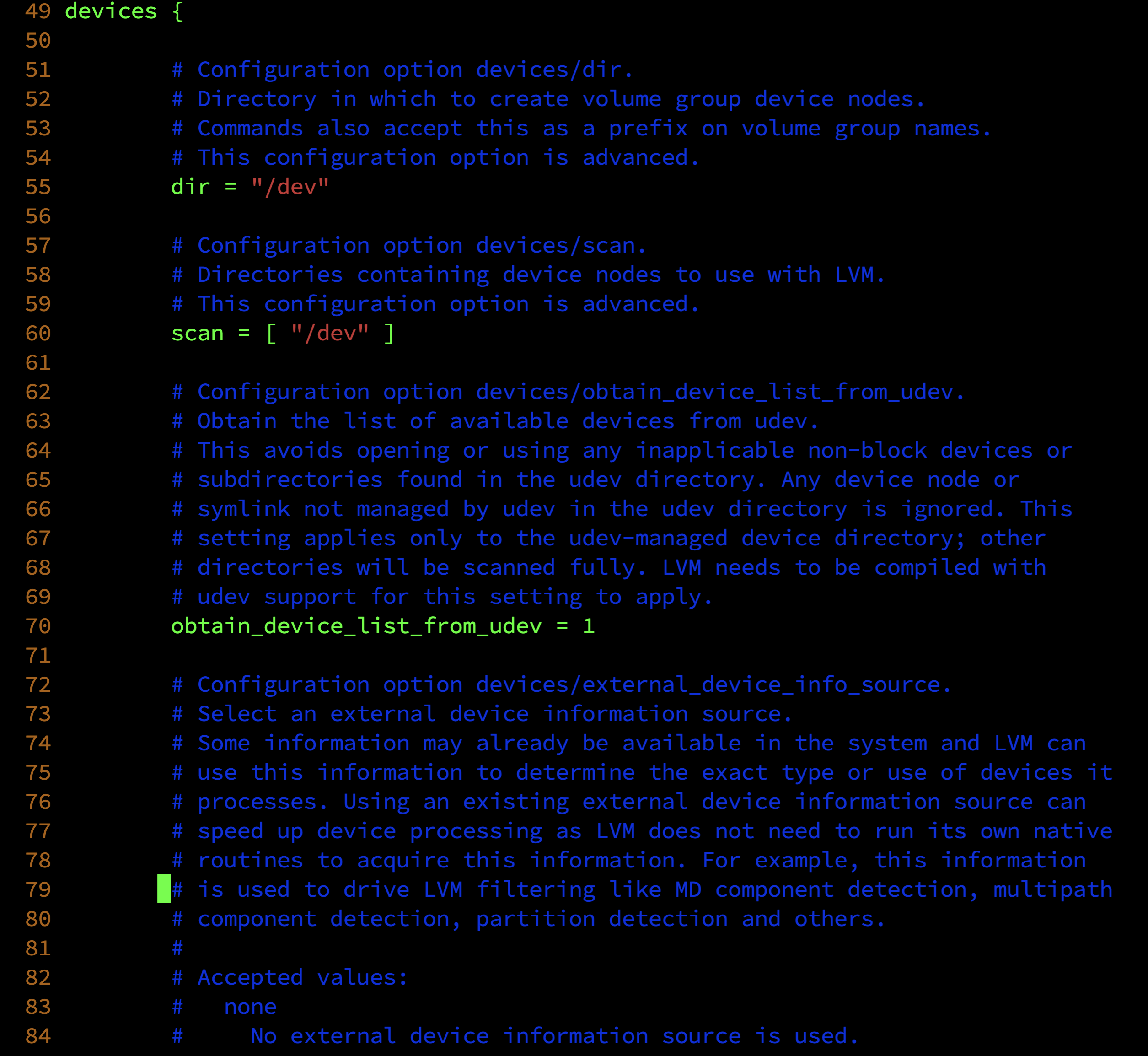

vim /etc/lvm/lvm.conf devices{} 변경 전

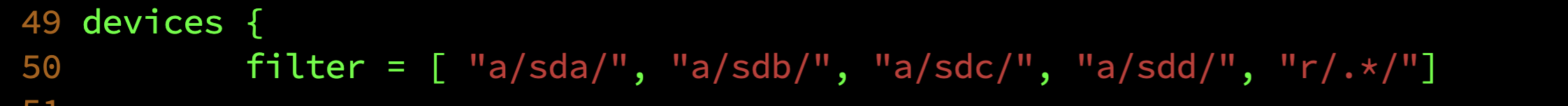

vim /etc/lvm/lvm.conf devices{} 변경 뒤

728x90

인스턴스에서만 블록 스토리지 볼륨에 접근하게 하는 것이 좋은데, OS에서 볼륨 연결 장치에 대해 관리하고 있어요.
기본적으로 LVM 볼륨 검색 도구는 볼륨이 포함된 블록 스토리지 장치에 대해 /dev 디렉터리를 검색하게 된답니다.

프로젝트에서 LVM 볼륨을 사용할 경우 검색 도구는 해당 볼륨을 감지하고, 캐싱 하려고 시도하는데, 이 때, OS 및 프로젝트 볼륨에 대한 다양한 문제가 발생할 수 있어요. 그렇기 때문에 LVM을 블록 스토리지에게 할당할 VG을 포함하는 장치만 검색될 수 있도록 구성해 주어야 해요.

위와 같이 devices 부분에서 특정 장치를 허용하고, 다른 장치들은 거부하는 필터를 걸어줄 수 있는데, 필터 배열 내 각 항목에 accept에 대한 내용으로 a를 붙혀주게 되고, reject에 대해 r을 붙혀주고, 그 다음 장치 이름에 대한 정규 표현식으로 표기해 주면 되요.

배열은 그 외 다른 장치에 대한 접근을 거부하기 위해 r/.*/로 설정해 주어야 해요.
이 때, vgs-vvvv 명령어를 사용하여 필터 테스트를 진행할 수 있어요.

스토리지 노드에서 LVM을 운영체제 디스크로 사용할 경우 연결된 장치 또한 필터에 추가해줘야 해요. 주니의 운영체제 디스크는 LVM으로 구성되어 있고, /dev/sdd로 구성이 되어 있어요.

그리고, 컴퓨트 노드에서 LVM을 운영체제 디스크로 사용할 경우 해당 노드의 /etc/lvm/lvm.conf 파일 내 필터를 구성하여 운영체제 디스크만을 허용하도록 해줘야 해요. (스토리지 노드 따로 구성 시)

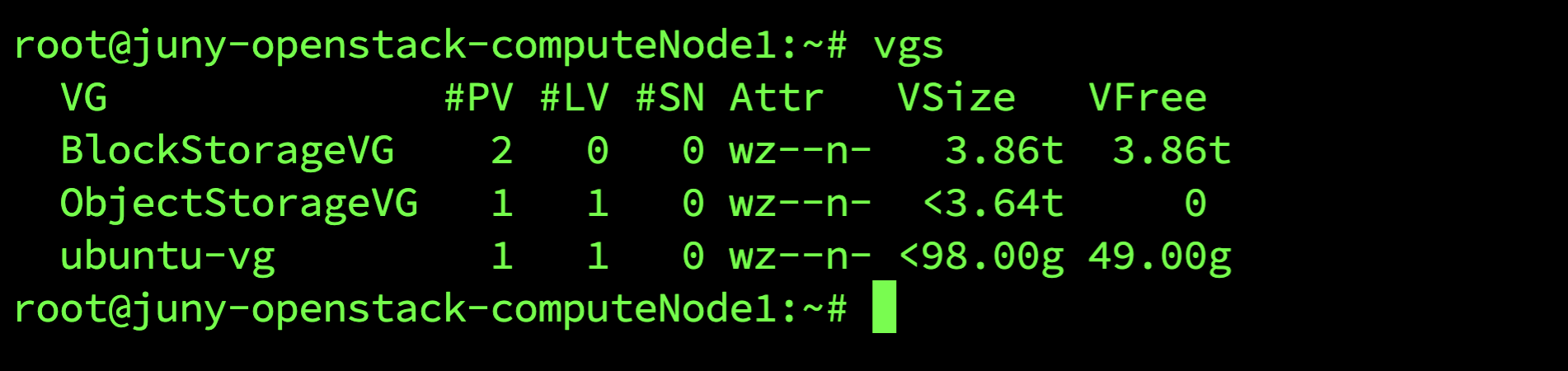

root@juny-openstack-computeNode1:~# vgs -vvvv
14:32:53.860384 vgs[80880] lvmcmdline.c:2999  Parsing: vgs -vvvv
14:32:53.860492 vgs[80880] lvmcmdline.c:1990  Recognised command vgs_general (id 157 / enum 143).
14:32:53.860553 vgs[80880] filters/filter-sysfs.c:331  Sysfs filter initialised.
14:32:53.860619 vgs[80880] filters/filter-internal.c:82  Internal filter initialised.
14:32:53.860813 vgs[80880] filters/filter-regex.c:221  Regex filter initialised.
14:32:53.860875 vgs[80880] filters/filter-type.c:61  LVM type filter initialised.
14:32:53.860895 vgs[80880] filters/filter-usable.c:209  Usable device filter initialised (scan_lvs 0).
14:32:53.860955 vgs[80880] filters/filter-mpath.c:346  mpath filter initialised.
14:32:53.861014 vgs[80880] filters/filter-partitioned.c:78  Partitioned filter initialised.
14:32:53.861074 vgs[80880] filters/filter-signature.c:95  signature filter initialised.
14:32:53.861103 vgs[80880] filters/filter-md.c:157  MD filter initialised.
14:32:53.861122 vgs[80880] filters/filter-composite.c:103  Composite filter initialised.
14:32:53.861149 vgs[80880] filters/filter-persistent.c:196  Persistent filter initialised.
14:32:53.861167 vgs[80880] device_mapper/libdm-config.c:986  devices/hints not found in config: defaulting to all
14:32:53.861227 vgs[80880] device_mapper/libdm-config.c:1085  metadata/record_lvs_history not found in config: defaulting to 0
14:32:53.861247 vgs[80880] lvmcmdline.c:3056  DEGRADED MODE. Incomplete RAID LVs will be processed.
14:32:53.861271 vgs[80880] lvmcmdline.c:3062  Processing command: vgs -vvvv
14:32:53.861283 vgs[80880] lvmcmdline.c:3063  Command pid: 80880
14:32:53.861299 vgs[80880] lvmcmdline.c:3064  System ID:
14:32:53.861307 vgs[80880] lvmcmdline.c:3067  O_DIRECT will be used
14:32:53.861319 vgs[80880] device_mapper/libdm-config.c:1013  global/locking_type not found in config: defaulting to 1
14:32:53.861344 vgs[80880] locking/locking.c:141  File locking settings: readonly:0 sysinit:0 ignorelockingfailure:0 global/metadata_read_only:0 global/wait_for_locks:1.
14:32:53.861437 vgs[80880] device_mapper/libdm-config.c:986  devices/md_component_checks not found in config: defaulting to auto
14:32:53.861465 vgs[80880] lvmcmdline.c:2906  Using md_component_checks auto use_full_md_check 0
14:32:53.861500 vgs[80880] device_mapper/libdm-config.c:986  report/output_format not found in config: defaulting to basic
14:32:53.861563 vgs[80880] device_mapper/libdm-config.c:1085  log/report_command_log not found in config: defaulting to 0
14:32:53.861634 vgs[80880] device_mapper/libdm-config.c:1085  report/aligned not found in config: defaulting to 1
14:32:53.861792 vgs[80880] device_mapper/libdm-config.c:1085  report/buffered not found in config: defaulting to 1
14:32:53.861869 vgs[80880] device_mapper/libdm-config.c:1085  report/headings not found in config: defaulting to 1
14:32:53.861930 vgs[80880] device_mapper/libdm-config.c:986  report/separator not found in config: defaulting to
14:32:53.861945 vgs[80880] device_mapper/libdm-config.c:1085  report/prefixes not found in config: defaulting to 0
14:32:53.861958 vgs[80880] device_mapper/libdm-config.c:1085  report/quoted not found in config: defaulting to 1
14:32:53.861975 vgs[80880] device_mapper/libdm-config.c:1085  report/columns_as_rows not found in config: defaulting to 0
14:32:53.861987 vgs[80880] device_mapper/libdm-config.c:986  report/vgs_sort not found in config: defaulting to vg_name
14:32:53.862004 vgs[80880] device_mapper/libdm-config.c:986  report/vgs_cols_verbose not found in config: defaulting to vg_name,vg_attr,vg_extent_size,pv_count,lv_count,snap_count,vg_size,vg_free,vg_uuid,vg_profile
14:32:53.862024 vgs[80880] device_mapper/libdm-config.c:986  report/compact_output_cols not found in config: defaulting to
14:32:53.862324 vgs[80880] toollib.c:2138  Processing each VG
14:32:53.862387 vgs[80880] misc/lvm-flock.c:229  Locking /run/lock/lvm/P_global RB
14:32:53.862448 vgs[80880] misc/lvm-flock.c:113  _do_flock /run/lock/lvm/P_global:aux WB
14:32:53.862507 vgs[80880] misc/lvm-flock.c:47  _undo_flock /run/lock/lvm/P_global:aux
14:32:53.862588 vgs[80880] misc/lvm-flock.c:113  _do_flock /run/lock/lvm/P_global RB
14:32:53.862701 vgs[80880] cache/lvmcache.c:1066  Finding VG info
14:32:53.862761 vgs[80880] label/label.c:1028  Finding devices to scan
14:32:53.862879 vgs[80880] device/dev-cache.c:1175  Creating list of system devices.
14:32:53.869630 vgs[80880] device/dev-cache.c:713  Found dev 8:48 /dev/sdd - new.
14:32:53.869902 vgs[80880] device/dev-cache.c:750  Found dev 8:48 /dev/disk/by-id/scsi-14d53465420202020a6dbdb939c645a48ac13f56875b3f813 - new alias.
14:32:53.869966 vgs[80880] device/dev-cache.c:750  Found dev 8:48 /dev/disk/by-id/scsi-360022480a6dbdb939c64f56875b3f813 - new alias.
14:32:53.870024 vgs[80880] device/dev-cache.c:750  Found dev 8:48 /dev/disk/by-id/wwn-0x60022480a6dbdb939c64f56875b3f813 - new alias.
14:32:53.870082 vgs[80880] device/dev-cache.c:750  Found dev 8:48 /dev/disk/by-path/acpi-VMBUS:01-vmbus-00000000000088990000000000000000-lun-0 - new alias.
14:32:53.870101 vgs[80880] device/dev-cache.c:750  Found dev 8:48 /dev/disk/cloud/azure_root - new alias.
14:32:53.870254 vgs[80880] device/dev-cache.c:713  Found dev 8:49 /dev/sdd1 - new.
14:32:53.870498 vgs[80880] device/dev-cache.c:750  Found dev 8:49 /dev/disk/by-id/scsi-14d53465420202020a6dbdb939c645a48ac13f56875b3f813-part1 - new alias.
14:32:53.870556 vgs[80880] device/dev-cache.c:750  Found dev 8:49 /dev/disk/by-id/scsi-360022480a6dbdb939c64f56875b3f813-part1 - new alias.
14:32:53.870612 vgs[80880] device/dev-cache.c:750  Found dev 8:49 /dev/disk/by-id/wwn-0x60022480a6dbdb939c64f56875b3f813-part1 - new alias.
14:32:53.870672 vgs[80880] device/dev-cache.c:750  Found dev 8:49 /dev/disk/by-partuuid/c3229154-8880-40d6-bf1d-97764b834ab5 - new alias.
14:32:53.870694 vgs[80880] device/dev-cache.c:750  Found dev 8:49 /dev/disk/by-path/acpi-VMBUS:01-vmbus-00000000000088990000000000000000-lun-0-part1 - new alias.
14:32:53.870749 vgs[80880] device/dev-cache.c:750  Found dev 8:49 /dev/disk/cloud/azure_root-part1 - new alias.
14:32:53.870907 vgs[80880] device/dev-cache.c:713  Found dev 8:50 /dev/sdd2 - new.
14:32:53.871173 vgs[80880] device/dev-cache.c:750  Found dev 8:50 /dev/disk/by-id/scsi-14d53465420202020a6dbdb939c645a48ac13f56875b3f813-part2 - new alias.
14:32:53.871230 vgs[80880] device/dev-cache.c:750  Found dev 8:50 /dev/disk/by-id/scsi-360022480a6dbdb939c64f56875b3f813-part2 - new alias.
14:32:53.871286 vgs[80880] device/dev-cache.c:750  Found dev 8:50 /dev/disk/by-id/wwn-0x60022480a6dbdb939c64f56875b3f813-part2 - new alias.
14:32:53.871343 vgs[80880] device/dev-cache.c:750  Found dev 8:50 /dev/disk/by-partuuid/d4c4c8a0-5607-40f8-aad9-5b9b47a97a8f - new alias.
14:32:53.871364 vgs[80880] device/dev-cache.c:750  Found dev 8:50 /dev/disk/by-path/acpi-VMBUS:01-vmbus-00000000000088990000000000000000-lun-0-part2 - new alias.
14:32:53.871418 vgs[80880] device/dev-cache.c:750  Found dev 8:50 /dev/disk/by-uuid/2c068373-bbc9-4af9-9023-4bb3648da6a8 - new alias.
14:32:53.871473 vgs[80880] device/dev-cache.c:750  Found dev 8:50 /dev/disk/cloud/azure_root-part2 - new alias.
14:32:53.871637 vgs[80880] device/dev-cache.c:713  Found dev 8:51 /dev/sdd3 - new.
14:32:53.871981 vgs[80880] device/dev-cache.c:750  Found dev 8:51 /dev/disk/by-id/lvm-pv-uuid-Zv2xVC-PFhU-sBY3-Xfv2-FQBf-Xpd2-PXgc85 - new alias.
14:32:53.872038 vgs[80880] device/dev-cache.c:750  Found dev 8:51 /dev/disk/by-id/scsi-14d53465420202020a6dbdb939c645a48ac13f56875b3f813-part3 - new alias.
14:32:53.872095 vgs[80880] device/dev-cache.c:750  Found dev 8:51 /dev/disk/by-id/scsi-360022480a6dbdb939c64f56875b3f813-part3 - new alias.
14:32:53.872119 vgs[80880] device/dev-cache.c:750  Found dev 8:51 /dev/disk/by-id/wwn-0x60022480a6dbdb939c64f56875b3f813-part3 - new alias.
14:32:53.872158 vgs[80880] device/dev-cache.c:750  Found dev 8:51 /dev/disk/by-partuuid/78d6f11b-ee16-487f-bdc0-f34e9b184397 - new alias.
14:32:53.872218 vgs[80880] device/dev-cache.c:750  Found dev 8:51 /dev/disk/by-path/acpi-VMBUS:01-vmbus-00000000000088990000000000000000-lun-0-part3 - new alias.
14:32:53.872240 vgs[80880] device/dev-cache.c:750  Found dev 8:51 /dev/disk/cloud/azure_root-part3 - new alias.
14:32:53.872432 vgs[80880] device/dev-cache.c:713  Found dev 8:0 /dev/sda - new.
14:32:53.872638 vgs[80880] device/dev-cache.c:750  Found dev 8:0 /dev/disk/by-id/scsi-14d53465420202020d3bcbe2e26e64d4aa749579044f8e93b - new alias.
14:32:53.872714 vgs[80880] device/dev-cache.c:750  Found dev 8:0 /dev/disk/by-id/scsi-360022480d3bcbe2e26e6579044f8e93b - new alias.
14:32:53.872768 vgs[80880] device/dev-cache.c:750  Found dev 8:0 /dev/disk/by-id/wwn-0x60022480d3bcbe2e26e6579044f8e93b - new alias.
14:32:53.872788 vgs[80880] device/dev-cache.c:750  Found dev 8:0 /dev/disk/by-path/acpi-VMBUS:01-vmbus-0610ac9958d04d4193aa7171d999736d-lun-0 - new alias.
14:32:53.872979 vgs[80880] device/dev-cache.c:713  Found dev 8:1 /dev/sda1 - new.
14:32:53.873250 vgs[80880] device/dev-cache.c:750  Found dev 8:1 /dev/disk/by-id/lvm-pv-uuid-MhTNDa-wWkA-L9lD-6Cxu-j5Mf-Ly8d-FJXG5M - new alias.
14:32:53.873306 vgs[80880] device/dev-cache.c:750  Found dev 8:1 /dev/disk/by-id/scsi-14d53465420202020d3bcbe2e26e64d4aa749579044f8e93b-part1 - new alias.
14:32:53.873363 vgs[80880] device/dev-cache.c:750  Found dev 8:1 /dev/disk/by-id/scsi-360022480d3bcbe2e26e6579044f8e93b-part1 - new alias.
14:32:53.873383 vgs[80880] device/dev-cache.c:750  Found dev 8:1 /dev/disk/by-id/wwn-0x60022480d3bcbe2e26e6579044f8e93b-part1 - new alias.
14:32:53.873398 vgs[80880] device/dev-cache.c:750  Found dev 8:1 /dev/disk/by-partlabel/primary - new alias.
14:32:53.873449 vgs[80880] device/dev-cache.c:750  Found dev 8:1 /dev/disk/by-partuuid/39bfcf72-f7ae-4c25-ab14-487e63b0f4d2 - new alias.
14:32:53.873503 vgs[80880] device/dev-cache.c:750  Found dev 8:1 /dev/disk/by-path/acpi-VMBUS:01-vmbus-0610ac9958d04d4193aa7171d999736d-lun-0-part1 - new alias.
14:32:53.873691 vgs[80880] device/dev-cache.c:713  Found dev 8:16 /dev/sdb - new.
14:32:53.873957 vgs[80880] device/dev-cache.c:750  Found dev 8:16 /dev/disk/by-id/scsi-14d53465420202020443061fb21b42e4cbf2299410a1ad874 - new alias.
14:32:53.874013 vgs[80880] device/dev-cache.c:750  Found dev 8:16 /dev/disk/by-id/scsi-360022480443061fb21b499410a1ad874 - new alias.
14:32:53.874068 vgs[80880] device/dev-cache.c:750  Found dev 8:16 /dev/disk/by-id/wwn-0x60022480443061fb21b499410a1ad874 - new alias.
14:32:53.874088 vgs[80880] device/dev-cache.c:750  Found dev 8:16 /dev/disk/by-path/acpi-VMBUS:01-vmbus-0610ac9958d04d4193aa7171d999736d-lun-1 - new alias.
14:32:53.874276 vgs[80880] device/dev-cache.c:713  Found dev 8:17 /dev/sdb1 - new.
14:32:53.874536 vgs[80880] device/dev-cache.c:750  Found dev 8:17 /dev/disk/by-id/lvm-pv-uuid-DH6ETW-xqDD-QcQ9-Hnru-Lq3U-EPh0-jQtPBH - new alias.
14:32:53.874592 vgs[80880] device/dev-cache.c:750  Found dev 8:17 /dev/disk/by-id/scsi-14d53465420202020443061fb21b42e4cbf2299410a1ad874-part1 - new alias.
14:32:53.874651 vgs[80880] device/dev-cache.c:750  Found dev 8:17 /dev/disk/by-id/scsi-360022480443061fb21b499410a1ad874-part1 - new alias.
14:32:53.874728 vgs[80880] device/dev-cache.c:750  Found dev 8:17 /dev/disk/by-id/wwn-0x60022480443061fb21b499410a1ad874-part1 - new alias.
14:32:53.874747 vgs[80880] device/dev-cache.c:704  Found dev 8:1 /dev/disk/by-partlabel/primary - exists.
14:32:53.874802 vgs[80880] device/dev-cache.c:750  Found dev 8:17 /dev/disk/by-partuuid/3a911d65-84e6-47c2-940f-de3bc84b89a4 - new alias.
14:32:53.874827 vgs[80880] device/dev-cache.c:750  Found dev 8:17 /dev/disk/by-path/acpi-VMBUS:01-vmbus-0610ac9958d04d4193aa7171d999736d-lun-1-part1 - new alias.
14:32:53.874982 vgs[80880] device/dev-cache.c:713  Found dev 8:32 /dev/sdc - new.
14:32:53.875133 vgs[80880] device/dev-cache.c:750  Found dev 8:32 /dev/disk/by-id/scsi-14d5346542020202095c953cc513b6c40896ccca2ded61ea4 - new alias.
14:32:53.875189 vgs[80880] device/dev-cache.c:750  Found dev 8:32 /dev/disk/by-id/scsi-36002248095c953cc513bcca2ded61ea4 - new alias.
14:32:53.875208 vgs[80880] device/dev-cache.c:750  Found dev 8:32 /dev/disk/by-id/wwn-0x6002248095c953cc513bcca2ded61ea4 - new alias.
14:32:53.875229 vgs[80880] device/dev-cache.c:750  Found dev 8:32 /dev/disk/by-path/acpi-VMBUS:01-vmbus-0610ac9958d04d4193aa7171d999736d-lun-2 - new alias.
14:32:53.875374 vgs[80880] device/dev-cache.c:713  Found dev 8:33 /dev/sdc1 - new.
14:32:53.875623 vgs[80880] device/dev-cache.c:750  Found dev 8:33 /dev/disk/by-id/lvm-pv-uuid-77laf8-ZkLN-Etbq-Bwjd-OdDg-WMTz-mZd8qI - new alias.
14:32:53.875684 vgs[80880] device/dev-cache.c:750  Found dev 8:33 /dev/disk/by-id/scsi-14d5346542020202095c953cc513b6c40896ccca2ded61ea4-part1 - new alias.
14:32:53.875740 vgs[80880] device/dev-cache.c:750  Found dev 8:33 /dev/disk/by-id/scsi-36002248095c953cc513bcca2ded61ea4-part1 - new alias.
14:32:53.875762 vgs[80880] device/dev-cache.c:750  Found dev 8:33 /dev/disk/by-id/wwn-0x6002248095c953cc513bcca2ded61ea4-part1 - new alias.
14:32:53.875777 vgs[80880] device/dev-cache.c:750  Found dev 8:33 /dev/disk/by-partuuid/ea41ee9e-01 - new alias.
14:32:53.875829 vgs[80880] device/dev-cache.c:750  Found dev 8:33 /dev/disk/by-path/acpi-VMBUS:01-vmbus-0610ac9958d04d4193aa7171d999736d-lun-2-part1 - new alias.
14:32:53.876011 vgs[80880] device/dev-cache.c:713  Found dev 11:0 /dev/sr0 - new.
14:32:53.876211 vgs[80880] device/dev-cache.c:750  Found dev 11:0 /dev/cdrom - new alias.
14:32:53.876234 vgs[80880] device/dev-cache.c:750  Found dev 11:0 /dev/disk/by-id/scsi-14d5346542020202000000000000000000000000000000000 - new alias.
14:32:53.876248 vgs[80880] device/dev-cache.c:750  Found dev 11:0 /dev/disk/by-path/pci-0000:00:07.1-ata-2 - new alias.
14:32:53.876260 vgs[80880] device/dev-cache.c:750  Found dev 11:0 /dev/disk/by-path/pci-0000:00:07.1-ata-2.0 - new alias.
14:32:53.876469 vgs[80880] device/dev-cache.c:713  Found dev 2:0 /dev/fd0 - new.
14:32:53.876632 vgs[80880] device/dev-cache.c:713  Found dev 7:0 /dev/loop0 - new.
14:32:53.876799 vgs[80880] device/dev-cache.c:713  Found dev 7:1 /dev/loop1 - new.
14:32:53.876959 vgs[80880] device/dev-cache.c:713  Found dev 7:2 /dev/loop2 - new.
14:32:53.877116 vgs[80880] device/dev-cache.c:713  Found dev 7:3 /dev/loop3 - new.
14:32:53.877269 vgs[80880] device/dev-cache.c:713  Found dev 7:4 /dev/loop4 - new.
14:32:53.877420 vgs[80880] device/dev-cache.c:713  Found dev 7:5 /dev/loop5 - new.
14:32:53.877571 vgs[80880] device/dev-cache.c:713  Found dev 7:6 /dev/loop6 - new.
14:32:53.877760 vgs[80880] device/dev-cache.c:713  Found dev 7:7 /dev/loop7 - new.
14:32:53.877913 vgs[80880] device/dev-cache.c:713  Found dev 253:0 /dev/dm-0 - new.
14:32:53.878027 vgs[80880] device/dev-cache.c:750  Found dev 253:0 /dev/ObjectStorageVG/ObjectStorageLV - new alias.
14:32:53.878082 vgs[80880] device/dev-cache.c:750  Found dev 253:0 /dev/disk/by-id/dm-name-ObjectStorageVG-ObjectStorageLV - new alias.
14:32:53.878172 vgs[80880] device/dev-cache.c:750  Found dev 253:0 /dev/disk/by-id/dm-uuid-LVM-DyOHcZYxTyAJ0qYAtasH8EZepZgNwkOYFx1GTh3u0xO2vhggyWtllQQu5xDQAKs1 - new alias.
14:32:53.878192 vgs[80880] device/dev-cache.c:750  Found dev 253:0 /dev/disk/by-uuid/1a6626dc-78df-471b-a843-8e5f08608e33 - new alias.
14:32:53.878208 vgs[80880] device/dev-cache.c:750  Found dev 253:0 /dev/mapper/ObjectStorageVG-ObjectStorageLV - new alias.
14:32:53.878343 vgs[80880] device/dev-cache.c:713  Found dev 253:1 /dev/dm-1 - new.
14:32:53.878465 vgs[80880] device/dev-cache.c:750  Found dev 253:1 /dev/disk/by-dname/ubuntu--vg-ubuntu--lv - new alias.
14:32:53.878519 vgs[80880] device/dev-cache.c:750  Found dev 253:1 /dev/disk/by-id/dm-name-ubuntu--vg-ubuntu--lv - new alias.
14:32:53.878581 vgs[80880] device/dev-cache.c:750  Found dev 253:1 /dev/disk/by-id/dm-uuid-LVM-JAZMd0k8QxtdBUX33KVYWH64nkCAyc8KH9RfiNVUfQurrPSjqn2PLxRkxJjAU2hQ - new alias.
14:32:53.878669 vgs[80880] device/dev-cache.c:750  Found dev 253:1 /dev/disk/by-uuid/cd6f617d-7a98-4155-8a67-77952328ecaa - new alias.
14:32:53.878734 vgs[80880] device/dev-cache.c:750  Found dev 253:1 /dev/mapper/ubuntu--vg-ubuntu--lv - new alias.
14:32:53.878796 vgs[80880] device/dev-cache.c:750  Found dev 253:1 /dev/ubuntu-vg/ubuntu-lv - new alias.
14:32:53.878937 vgs[80880] device/dev-cache.c:713  Found dev 253:2 /dev/dm-2 - new.
14:32:53.879088 vgs[80880] device/dev-cache.c:750  Found dev 253:2 /dev/BlockStorageVG/BlockStorageLV - new alias.
14:32:53.879143 vgs[80880] device/dev-cache.c:750  Found dev 253:2 /dev/disk/by-id/dm-name-BlockStorageVG-BlockStorageLV - new alias.
14:32:53.879161 vgs[80880] device/dev-cache.c:750  Found dev 253:2 /dev/disk/by-id/dm-uuid-LVM-nxre4NnWXp8WkMW2C1DtfbBTtWetMkOhaT9QJDYHbId1M0xZVRGVlsCi3GKl3KMK - new alias.
14:32:53.879176 vgs[80880] device/dev-cache.c:750  Found dev 253:2 /dev/disk/by-uuid/b2f81028-d9ef-4590-91f5-c9985a9d02b0 - new alias.
14:32:53.879202 vgs[80880] device/dev-cache.c:750  Found dev 253:2 /dev/mapper/BlockStorageVG-BlockStorageLV - new alias.
14:32:53.879808 vgs[80880] label/label.c:1095  Filtering devices to scan (nodata)
14:32:53.880183 vgs[80880] filters/filter-regex.c:175  /dev/fd0: Skipping (regex)
14:32:53.880213 vgs[80880] filters/filter-persistent.c:140  filter caching bad /dev/fd0
14:32:53.880223 vgs[80880] filters/filter-regex.c:175  /dev/loop0: Skipping (regex)
14:32:53.880227 vgs[80880] filters/filter-persistent.c:140  filter caching bad /dev/loop0
14:32:53.880249 vgs[80880] device/dev-io.c:415  Opened /dev/sda RO O_DIRECT
14:32:53.880277 vgs[80880] device/dev-io.c:117  /dev/sda: size is 7811891200 sectors
14:32:53.880288 vgs[80880] device/dev-io.c:455  Closed /dev/sda
14:32:53.880312 vgs[80880] filters/filter-persistent.c:140  filter caching good /dev/sda
14:32:53.880350 vgs[80880] filters/filter-regex.c:175  /dev/cdrom: Skipping (regex)
14:32:53.880357 vgs[80880] filters/filter-persistent.c:140  filter caching bad /dev/cdrom
14:32:53.880373 vgs[80880] filters/filter-regex.c:175  /dev/ObjectStorageVG/ObjectStorageLV: Skipping (regex)
14:32:53.880377 vgs[80880] filters/filter-persistent.c:140  filter caching bad /dev/ObjectStorageVG/ObjectStorageLV
14:32:53.880386 vgs[80880] filters/filter-regex.c:175  /dev/loop1: Skipping (regex)
14:32:53.880412 vgs[80880] filters/filter-persistent.c:140  filter caching bad /dev/loop1
14:32:53.880428 vgs[80880] device/dev-io.c:415  Opened /dev/sda1 RO O_DIRECT
14:32:53.880434 vgs[80880] device/dev-io.c:117  /dev/sda1: size is 7811891133 sectors
14:32:53.880465 vgs[80880] device/dev-io.c:455  Closed /dev/sda1
14:32:53.880477 vgs[80880] filters/filter-mpath.c:205  /dev/sda1: Device is a partition, using primary device sda for mpath component detection
14:32:53.880498 vgs[80880] filters/filter-persistent.c:140  filter caching good /dev/sda1
14:32:53.880539 vgs[80880] filters/filter-regex.c:175  /dev/ubuntu-vg/ubuntu-lv: Skipping (regex)
14:32:53.880545 vgs[80880] filters/filter-persistent.c:140  filter caching bad /dev/ubuntu-vg/ubuntu-lv
14:32:53.880557 vgs[80880] filters/filter-regex.c:175  /dev/loop2: Skipping (regex)
14:32:53.880585 vgs[80880] filters/filter-persistent.c:140  filter caching bad /dev/loop2
14:32:53.880598 vgs[80880] filters/filter-regex.c:175  /dev/BlockStorageVG/BlockStorageLV: Skipping (regex)
14:32:53.880607 vgs[80880] filters/filter-persistent.c:140  filter caching bad /dev/BlockStorageVG/BlockStorageLV
14:32:53.880621 vgs[80880] filters/filter-regex.c:175  /dev/loop3: Skipping (regex)
14:32:53.880629 vgs[80880] filters/filter-persistent.c:140  filter caching bad /dev/loop3
14:32:53.880634 vgs[80880] filters/filter-regex.c:175  /dev/loop4: Skipping (regex)
14:32:53.880641 vgs[80880] filters/filter-persistent.c:140  filter caching bad /dev/loop4
14:32:53.880659 vgs[80880] filters/filter-regex.c:175  /dev/loop5: Skipping (regex)
14:32:53.880667 vgs[80880] filters/filter-persistent.c:140  filter caching bad /dev/loop5
14:32:53.880673 vgs[80880] filters/filter-regex.c:175  /dev/loop6: Skipping (regex)
14:32:53.880703 vgs[80880] filters/filter-persistent.c:140  filter caching bad /dev/loop6
14:32:53.880713 vgs[80880] filters/filter-regex.c:175  /dev/loop7: Skipping (regex)
14:32:53.880741 vgs[80880] filters/filter-persistent.c:140  filter caching bad /dev/loop7
14:32:53.880759 vgs[80880] device/dev-io.c:415  Opened /dev/sdb RO O_DIRECT
14:32:53.880767 vgs[80880] device/dev-io.c:117  /dev/sdb: size is 7811891200 sectors
14:32:53.880773 vgs[80880] device/dev-io.c:455  Closed /dev/sdb
14:32:53.880793 vgs[80880] filters/filter-persistent.c:140  filter caching good /dev/sdb
14:32:53.880833 vgs[80880] device/dev-io.c:415  Opened /dev/sdb1 RO O_DIRECT
14:32:53.880841 vgs[80880] device/dev-io.c:117  /dev/sdb1: size is 7811891133 sectors
14:32:53.880847 vgs[80880] device/dev-io.c:455  Closed /dev/sdb1
14:32:53.880856 vgs[80880] filters/filter-mpath.c:205  /dev/sdb1: Device is a partition, using primary device sdb for mpath component detection
14:32:53.880875 vgs[80880] filters/filter-persistent.c:140  filter caching good /dev/sdb1
14:32:53.880898 vgs[80880] device/dev-io.c:415  Opened /dev/sdc RO O_DIRECT
14:32:53.880902 vgs[80880] device/dev-io.c:117  /dev/sdc: size is 486539264 sectors
14:32:53.880908 vgs[80880] device/dev-io.c:455  Closed /dev/sdc
14:32:53.880936 vgs[80880] filters/filter-persistent.c:140  filter caching good /dev/sdc
14:32:53.880950 vgs[80880] device/dev-io.c:415  Opened /dev/sdc1 RO O_DIRECT
14:32:53.880955 vgs[80880] device/dev-io.c:117  /dev/sdc1: size is 486537216 sectors
14:32:53.880960 vgs[80880] device/dev-io.c:455  Closed /dev/sdc1
14:32:53.880967 vgs[80880] filters/filter-mpath.c:205  /dev/sdc1: Device is a partition, using primary device sdc for mpath component detection
14:32:53.880984 vgs[80880] filters/filter-persistent.c:140  filter caching good /dev/sdc1
14:32:53.881005 vgs[80880] device/dev-io.c:415  Opened /dev/sdd RO O_DIRECT
14:32:53.881033 vgs[80880] device/dev-io.c:117  /dev/sdd: size is 209715200 sectors
14:32:53.881041 vgs[80880] device/dev-io.c:455  Closed /dev/sdd
14:32:53.881063 vgs[80880] filters/filter-persistent.c:140  filter caching good /dev/sdd
14:32:53.881109 vgs[80880] device/dev-io.c:415  Opened /dev/sdd1 RO O_DIRECT
14:32:53.881139 vgs[80880] device/dev-io.c:117  /dev/sdd1: size is 2048 sectors
14:32:53.881147 vgs[80880] device/dev-io.c:455  Closed /dev/sdd1
14:32:53.881152 vgs[80880] filters/filter-usable.c:43  /dev/sdd1: Skipping: Too small to hold a PV
14:32:53.881156 vgs[80880] filters/filter-persistent.c:140  filter caching bad /dev/sdd1
14:32:53.881174 vgs[80880] device/dev-io.c:415  Opened /dev/sdd2 RO O_DIRECT
14:32:53.881200 vgs[80880] device/dev-io.c:117  /dev/sdd2: size is 4194304 sectors
14:32:53.881208 vgs[80880] device/dev-io.c:455  Closed /dev/sdd2
14:32:53.881222 vgs[80880] filters/filter-mpath.c:205  /dev/sdd2: Device is a partition, using primary device sdd for mpath component detection
14:32:53.881244 vgs[80880] filters/filter-persistent.c:140  filter caching good /dev/sdd2
14:32:53.881286 vgs[80880] device/dev-io.c:415  Opened /dev/sdd3 RO O_DIRECT
14:32:53.881294 vgs[80880] device/dev-io.c:117  /dev/sdd3: size is 205514752 sectors
14:32:53.881300 vgs[80880] device/dev-io.c:455  Closed /dev/sdd3
14:32:53.881308 vgs[80880] filters/filter-mpath.c:205  /dev/sdd3: Device is a partition, using primary device sdd for mpath component detection
14:32:53.881325 vgs[80880] filters/filter-persistent.c:140  filter caching good /dev/sdd3
14:32:53.881421 vgs[80880] label/hints.c:684  Reading hint file
14:32:53.881466 vgs[80880] config/config.c:1474  devices/global_filter not found in config: defaulting to global_filter = [ "a|.*|" ]
14:32:53.881484 vgs[80880] config/config.c:1477  Setting devices/filter to filter = [ "a/sda/", "a/sdb/", "a/sdc/", "a/sdd/", "r/.*/" ]
14:32:53.881490 vgs[80880] label/hints.c:740  ignore hints with different filter
14:32:53.881498 vgs[80880] label/hints.c:1347  get_hints: needs refresh
14:32:53.881507 vgs[80880] label/label.c:910  Checking fd limit for num_devs 9 want 41 soft 1024 hard 1048576
14:32:53.881513 vgs[80880] label/label.c:692  Scanning 9 devices for VG info
14:32:53.881520 vgs[80880] label/label.c:589  open /dev/sda ro di 0 fd 5
14:32:53.881604 vgs[80880] label/label.c:589  open /dev/sda1 ro di 1 fd 6
14:32:53.881705 vgs[80880] label/label.c:589  open /dev/sdb ro di 2 fd 7
14:32:53.881798 vgs[80880] label/label.c:589  open /dev/sdb1 ro di 3 fd 8
14:32:53.881879 vgs[80880] label/label.c:589  open /dev/sdc ro di 4 fd 9
14:32:53.881960 vgs[80880] label/label.c:589  open /dev/sdc1 ro di 5 fd 10
14:32:53.882034 vgs[80880] label/label.c:589  open /dev/sdd ro di 6 fd 11
14:32:53.882123 vgs[80880] label/label.c:589  open /dev/sdd2 ro di 7 fd 12
14:32:53.882197 vgs[80880] label/label.c:589  open /dev/sdd3 ro di 8 fd 13
14:32:53.882270 vgs[80880] label/label.c:728  Scanning submitted 9 reads
14:32:53.882435 vgs[80880] label/label.c:740  Processing data from device /dev/sda 8:0 di 0 block 0x5566f7808010
14:32:53.882477 vgs[80880] device/dev-io.c:93  /dev/sda: using cached size 7811891200 sectors
14:32:53.882538 vgs[80880] filters/filter-partitioned.c:44  /dev/sda: Skipping: Partition table signature found
14:32:53.882564 vgs[80880] filters/filter-persistent.c:140  filter caching bad /dev/sda
14:32:53.882574 vgs[80880] label/label.c:393  <backtrace>
14:32:53.884155 vgs[80880] label/label.c:740  Processing data from device /dev/sda1 8:1 di 1 block 0x5566f7808050
14:32:53.884182 vgs[80880] device/dev-io.c:93  /dev/sda1: using cached size 7811891133 sectors
14:32:53.884194 vgs[80880] filters/filter-mpath.c:205  /dev/sda1: Device is a partition, using primary device sda for mpath component detection
14:32:53.884214 vgs[80880] device/dev-io.c:93  /dev/sda1: using cached size 7811891133 sectors
14:32:53.884425 vgs[80880] filters/filter-persistent.c:140  filter caching good /dev/sda1
14:32:53.884462 vgs[80880] label/label.c:321  /dev/sda1: lvm2 label detected at sector 1
14:32:53.884475 vgs[80880] cache/lvmcache.c:1451  lvmcache /dev/sda1: now in VG #orphans_lvm2 #orpha-ns_l-vm2
14:32:53.884502 vgs[80880] format_text/text_label.c:463  /dev/sda1: PV header extension version 2 found
14:32:53.884508 vgs[80880] format_text/text_label.c:497  Scanning /dev/sda1 mda1 summary.
14:32:53.884513 vgs[80880] format_text/format-text.c:195  Reading mda header sector from /dev/sda1 at 4096
14:32:53.884532 vgs[80880] format_text/import.c:57  Reading metadata summary from /dev/sda1 at 5632 size 1159 (+0)
14:32:53.884587 vgs[80880] format_text/format-text.c:1657  Found metadata summary on /dev/sda1 at 5632 size 1159 for VG ObjectStorageVG
14:32:53.884611 vgs[80880] cache/lvmcache.c:1370  lvmcache adding vginfo for ObjectStorageVG DyOHcZ-YxTy-AJ0q-YAta-sH8E-ZepZ-gNwkOY
14:32:53.884618 vgs[80880] cache/lvmcache.c:1451  lvmcache /dev/sda1: now in VG ObjectStorageVG DyOHcZ-YxTy-AJ0q-YAta-sH8E-ZepZ-gNwkOY
14:32:53.884642 vgs[80880] cache/lvmcache.c:1301  lvmcache /dev/sda1: VG ObjectStorageVG: set VGID to DyOHcZYxTyAJ0qYAtasH8EZepZgNwkOY.
14:32:53.884662 vgs[80880] cache/lvmcache.c:1647  lvmcache /dev/sda1 mda1 VG ObjectStorageVG set seqno 2 checksum 297f1ae7 mda_size 1159
14:32:53.884670 vgs[80880] cache/lvmcache.c:1485  lvmcache /dev/sda1: VG ObjectStorageVG: set creation host to juny-openstack-computeNode1.
14:32:53.884675 vgs[80880] format_text/text_label.c:525  Scanned /dev/sda1 mda1 seqno 2
14:32:53.884681 vgs[80880] label/label.c:740  Processing data from device /dev/sdb 8:16 di 2 block 0x5566f7808090
14:32:53.884687 vgs[80880] device/dev-io.c:93  /dev/sdb: using cached size 7811891200 sectors
14:32:53.884731 vgs[80880] filters/filter-partitioned.c:44  /dev/sdb: Skipping: Partition table signature found
14:32:53.884755 vgs[80880] filters/filter-persistent.c:140  filter caching bad /dev/sdb
14:32:53.884764 vgs[80880] label/label.c:393  <backtrace>
14:32:53.884772 vgs[80880] label/label.c:740  Processing data from device /dev/sdb1 8:17 di 3 block 0x5566f78080d0
14:32:53.884800 vgs[80880] device/dev-io.c:93  /dev/sdb1: using cached size 7811891133 sectors
14:32:53.884812 vgs[80880] filters/filter-mpath.c:205  /dev/sdb1: Device is a partition, using primary device sdb for mpath component detection
14:32:53.884852 vgs[80880] device/dev-io.c:93  /dev/sdb1: using cached size 7811891133 sectors
14:32:53.885063 vgs[80880] filters/filter-persistent.c:140  filter caching good /dev/sdb1
14:32:53.885097 vgs[80880] label/label.c:321  /dev/sdb1: lvm2 label detected at sector 1
14:32:53.885125 vgs[80880] cache/lvmcache.c:1451  lvmcache /dev/sdb1: now in VG #orphans_lvm2 #orpha-ns_l-vm2
14:32:53.885150 vgs[80880] format_text/text_label.c:463  /dev/sdb1: PV header extension version 2 found
14:32:53.885159 vgs[80880] format_text/text_label.c:497  Scanning /dev/sdb1 mda1 summary.
14:32:53.885163 vgs[80880] format_text/format-text.c:195  Reading mda header sector from /dev/sdb1 at 4096
14:32:53.885178 vgs[80880] format_text/import.c:57  Reading metadata summary from /dev/sdb1 at 11776 size 1440 (+0)
14:32:53.885248 vgs[80880] format_text/format-text.c:1657  Found metadata summary on /dev/sdb1 at 11776 size 1440 for VG BlockStorageVG
14:32:53.885274 vgs[80880] cache/lvmcache.c:1370  lvmcache adding vginfo for BlockStorageVG nxre4N-nWXp-8WkM-W2C1-Dtfb-BTtW-etMkOh
14:32:53.885299 vgs[80880] cache/lvmcache.c:1451  lvmcache /dev/sdb1: now in VG BlockStorageVG nxre4N-nWXp-8WkM-W2C1-Dtfb-BTtW-etMkOh
14:32:53.885324 vgs[80880] cache/lvmcache.c:1301  lvmcache /dev/sdb1: VG BlockStorageVG: set VGID to nxre4NnWXp8WkMW2C1DtfbBTtWetMkOh.
14:32:53.885330 vgs[80880] cache/lvmcache.c:1647  lvmcache /dev/sdb1 mda1 VG BlockStorageVG set seqno 6 checksum cccc8208 mda_size 1440
14:32:53.885336 vgs[80880] cache/lvmcache.c:1485  lvmcache /dev/sdb1: VG BlockStorageVG: set creation host to juny-openstack-computeNode1.
14:32:53.885342 vgs[80880] format_text/text_label.c:525  Scanned /dev/sdb1 mda1 seqno 6
14:32:53.885347 vgs[80880] label/label.c:740  Processing data from device /dev/sdc 8:32 di 4 block 0x5566f7808110
14:32:53.885353 vgs[80880] device/dev-io.c:93  /dev/sdc: using cached size 486539264 sectors
14:32:53.885397 vgs[80880] filters/filter-partitioned.c:44  /dev/sdc: Skipping: Partition table signature found
14:32:53.885422 vgs[80880] filters/filter-persistent.c:140  filter caching bad /dev/sdc
14:32:53.885431 vgs[80880] label/label.c:393  <backtrace>
14:32:53.885439 vgs[80880] label/label.c:740  Processing data from device /dev/sdc1 8:33 di 5 block 0x5566f7808150
14:32:53.885445 vgs[80880] device/dev-io.c:93  /dev/sdc1: using cached size 486537216 sectors
14:32:53.885453 vgs[80880] filters/filter-mpath.c:205  /dev/sdc1: Device is a partition, using primary device sdc for mpath component detection
14:32:53.885490 vgs[80880] device/dev-io.c:93  /dev/sdc1: using cached size 486537216 sectors
14:32:53.885718 vgs[80880] filters/filter-persistent.c:140  filter caching good /dev/sdc1
14:32:53.885753 vgs[80880] label/label.c:321  /dev/sdc1: lvm2 label detected at sector 1
14:32:53.885763 vgs[80880] cache/lvmcache.c:1451  lvmcache /dev/sdc1: now in VG #orphans_lvm2 #orpha-ns_l-vm2
14:32:53.885767 vgs[80880] format_text/text_label.c:463  /dev/sdc1: PV header extension version 2 found
14:32:53.885771 vgs[80880] format_text/text_label.c:497  Scanning /dev/sdc1 mda1 summary.
14:32:53.885775 vgs[80880] format_text/format-text.c:195  Reading mda header sector from /dev/sdc1 at 4096
14:32:53.885789 vgs[80880] format_text/import.c:57  Reading metadata summary from /dev/sdc1 at 6144 size 1440 (+0)
14:32:53.885820 vgs[80880] format_text/import.c:78  Skipped parsing metadata on /dev/sdc1
14:32:53.885826 vgs[80880] format_text/format-text.c:1657  Found metadata summary on /dev/sdc1 at 6144 size 1440 for VG BlockStorageVG
14:32:53.885832 vgs[80880] cache/lvmcache.c:1451  lvmcache /dev/sdc1: now in VG BlockStorageVG nxre4N-nWXp-8WkM-W2C1-Dtfb-BTtW-etMkOh
14:32:53.885837 vgs[80880] format_text/text_label.c:525  Scanned /dev/sdc1 mda1 seqno 6
14:32:53.885841 vgs[80880] label/label.c:740  Processing data from device /dev/sdd 8:48 di 6 block 0x5566f7808190
14:32:53.885846 vgs[80880] device/dev-io.c:93  /dev/sdd: using cached size 209715200 sectors
14:32:53.885869 vgs[80880] filters/filter-partitioned.c:44  /dev/sdd: Skipping: Partition table signature found
14:32:53.885873 vgs[80880] filters/filter-persistent.c:140  filter caching bad /dev/sdd
14:32:53.885880 vgs[80880] label/label.c:393  <backtrace>
14:32:53.885886 vgs[80880] label/label.c:740  Processing data from device /dev/sdd2 8:50 di 7 block 0x5566f78081d0
14:32:53.885891 vgs[80880] device/dev-io.c:93  /dev/sdd2: using cached size 4194304 sectors
14:32:53.885902 vgs[80880] filters/filter-mpath.c:205  /dev/sdd2: Device is a partition, using primary device sdd for mpath component detection
14:32:53.885939 vgs[80880] device/dev-io.c:93  /dev/sdd2: using cached size 4194304 sectors
14:32:53.886125 vgs[80880] filters/filter-persistent.c:140  filter caching good /dev/sdd2
14:32:53.886157 vgs[80880] label/label.c:414  /dev/sdd2: No lvm label detected
14:32:53.886166 vgs[80880] label/label.c:740  Processing data from device /dev/sdd3 8:51 di 8 block 0x5566f7808210
14:32:53.886171 vgs[80880] device/dev-io.c:93  /dev/sdd3: using cached size 205514752 sectors
14:32:53.886179 vgs[80880] filters/filter-mpath.c:205  /dev/sdd3: Device is a partition, using primary device sdd for mpath component detection
14:32:53.886200 vgs[80880] device/dev-io.c:93  /dev/sdd3: using cached size 205514752 sectors
14:32:53.886396 vgs[80880] filters/filter-persistent.c:140  filter caching good /dev/sdd3
14:32:53.886430 vgs[80880] label/label.c:321  /dev/sdd3: lvm2 label detected at sector 1
14:32:53.886440 vgs[80880] cache/lvmcache.c:1451  lvmcache /dev/sdd3: now in VG #orphans_lvm2 #orpha-ns_l-vm2
14:32:53.886445 vgs[80880] format_text/text_label.c:463  /dev/sdd3: PV header extension version 2 found
14:32:53.886467 vgs[80880] format_text/text_label.c:497  Scanning /dev/sdd3 mda1 summary.
14:32:53.886473 vgs[80880] format_text/format-text.c:195  Reading mda header sector from /dev/sdd3 at 4096
14:32:53.886487 vgs[80880] format_text/import.c:57  Reading metadata summary from /dev/sdd3 at 5632 size 1137 (+0)
14:32:53.886529 vgs[80880] format_text/format-text.c:1657  Found metadata summary on /dev/sdd3 at 5632 size 1137 for VG ubuntu-vg
14:32:53.886554 vgs[80880] cache/lvmcache.c:1370  lvmcache adding vginfo for ubuntu-vg JAZMd0-k8Qx-tdBU-X33K-VYWH-64nk-CAyc8K
14:32:53.886560 vgs[80880] cache/lvmcache.c:1451  lvmcache /dev/sdd3: now in VG ubuntu-vg JAZMd0-k8Qx-tdBU-X33K-VYWH-64nk-CAyc8K
14:32:53.886565 vgs[80880] cache/lvmcache.c:1301  lvmcache /dev/sdd3: VG ubuntu-vg: set VGID to JAZMd0k8QxtdBUX33KVYWH64nkCAyc8K.
14:32:53.886570 vgs[80880] cache/lvmcache.c:1647  lvmcache /dev/sdd3 mda1 VG ubuntu-vg set seqno 2 checksum 8d9174e7 mda_size 1137
14:32:53.886574 vgs[80880] cache/lvmcache.c:1485  lvmcache /dev/sdd3: VG ubuntu-vg: set creation host to ubuntu-server.
14:32:53.886577 vgs[80880] format_text/text_label.c:525  Scanned /dev/sdd3 mda1 seqno 2
14:32:53.886599 vgs[80880] label/label.c:823  Scanned devices: read errors 0 process errors 0 failed 0
14:32:53.886607 vgs[80880] label/hints.c:917  Writing hint file 3
14:32:53.886677 vgs[80880] config/config.c:1474  devices/global_filter not found in config: defaulting to global_filter = [ "a|.*|" ]
14:32:53.886710 vgs[80880] config/config.c:1477  Setting devices/filter to filter = [ "a/sda/", "a/sdb/", "a/sdc/", "a/sdd/", "r/.*/" ]
14:32:53.886718 vgs[80880] filters/filter-regex.c:175  /dev/fd0: Skipping (regex)
14:32:53.886723 vgs[80880] filters/filter-regex.c:175  /dev/loop0: Skipping (regex)
14:32:53.886727 vgs[80880] device/dev-io.c:93  /dev/sda: using cached size 7811891200 sectors
14:32:53.886752 vgs[80880] filters/filter-regex.c:175  /dev/cdrom: Skipping (regex)
14:32:53.886764 vgs[80880] filters/filter-regex.c:175  /dev/ObjectStorageVG/ObjectStorageLV: Skipping (regex)
14:32:53.886771 vgs[80880] filters/filter-regex.c:175  /dev/loop1: Skipping (regex)
14:32:53.886775 vgs[80880] device/dev-io.c:93  /dev/sda1: using cached size 7811891133 sectors
14:32:53.886784 vgs[80880] filters/filter-regex.c:175  /dev/ubuntu-vg/ubuntu-lv: Skipping (regex)
14:32:53.886794 vgs[80880] filters/filter-regex.c:175  /dev/loop2: Skipping (regex)
14:32:53.886803 vgs[80880] filters/filter-regex.c:175  /dev/BlockStorageVG/BlockStorageLV: Skipping (regex)
14:32:53.886807 vgs[80880] filters/filter-regex.c:175  /dev/loop3: Skipping (regex)
14:32:53.886810 vgs[80880] filters/filter-regex.c:175  /dev/loop4: Skipping (regex)
14:32:53.886814 vgs[80880] filters/filter-regex.c:175  /dev/loop5: Skipping (regex)
14:32:53.886817 vgs[80880] filters/filter-regex.c:175  /dev/loop6: Skipping (regex)
14:32:53.886841 vgs[80880] filters/filter-regex.c:175  /dev/loop7: Skipping (regex)
14:32:53.886849 vgs[80880] device/dev-io.c:93  /dev/sdb: using cached size 7811891200 sectors
14:32:53.886873 vgs[80880] device/dev-io.c:93  /dev/sdb1: using cached size 7811891133 sectors
14:32:53.886899 vgs[80880] device/dev-io.c:93  /dev/sdc: using cached size 486539264 sectors
14:32:53.886906 vgs[80880] device/dev-io.c:93  /dev/sdc1: using cached size 486537216 sectors
14:32:53.886911 vgs[80880] device/dev-io.c:93  /dev/sdd: using cached size 209715200 sectors
14:32:53.886915 vgs[80880] device/dev-io.c:93  /dev/sdd1: using cached size 2048 sectors
14:32:53.886922 vgs[80880] device/dev-io.c:93  /dev/sdd2: using cached size 4194304 sectors
14:32:53.886927 vgs[80880] device/dev-io.c:93  /dev/sdd3: using cached size 205514752 sectors
14:32:53.886938 vgs[80880] label/hints.c:1023  Wrote hint file with devs_hash 2655580395 count 10
14:32:53.886964 vgs[80880] cache/lvmcache.c:1136  Found VG info for 3 VGs
14:32:53.886972 vgs[80880] toollib.c:2187  Obtaining the complete list of VGs to process
14:32:53.886996 vgs[80880] toollib.c:1901  Processing VG ubuntu-vg JAZMd0-k8Qx-tdBU-X33K-VYWH-64nk-CAyc8K
14:32:53.887026 vgs[80880] misc/lvm-flock.c:229  Locking /run/lock/lvm/V_ubuntu-vg RB
14:32:53.887051 vgs[80880] misc/lvm-flock.c:113  _do_flock /run/lock/lvm/V_ubuntu-vg:aux WB
14:32:53.887078 vgs[80880] misc/lvm-flock.c:47  _undo_flock /run/lock/lvm/V_ubuntu-vg:aux
14:32:53.887110 vgs[80880] misc/lvm-flock.c:113  _do_flock /run/lock/lvm/V_ubuntu-vg RB
14:32:53.887124 vgs[80880] metadata/metadata.c:4697  Reading VG ubuntu-vg JAZMd0k8QxtdBUX33KVYWH64nkCAyc8K
14:32:53.887150 vgs[80880] format_text/format-text.c:195  Reading mda header sector from /dev/sdd3 at 4096
14:32:53.887982 vgs[80880] metadata/metadata.c:4666  rescan skipped - unchanged offset 1536 checksum 8d9174e7
14:32:53.888021 vgs[80880] metadata/metadata.c:4847  Reading VG ubuntu-vg metadata from /dev/sdd3 4096
14:32:53.888027 vgs[80880] format_text/format-text.c:195  Reading mda header sector from /dev/sdd3 at 4096
14:32:53.888035 vgs[80880] format_text/format-text.c:329  VG ubuntu-vg metadata check /dev/sdd3 mda 4096 slot0 offset 1536 size 1137
14:32:53.888060 vgs[80880] format_text/import.c:153  Reading metadata from /dev/sdd3 at 5632 size 1137 (+0)
14:32:53.888102 vgs[80880] metadata/vg.c:64  Allocated VG ubuntu-vg at 0x5566f78454c0.
14:32:53.888149 vgs[80880] format_text/import_vsn1.c:610  Importing logical volume ubuntu-vg/ubuntu-lv.
14:32:53.888201 vgs[80880] format_text/format-text.c:495  Found metadata on /dev/sdd3 at 5632 size 1137 for VG ubuntu-vg
14:32:53.888229 vgs[80880] cache/lvmcache.c:1833  lvmcache_update_vg ubuntu-vg for info /dev/sdd3
14:32:53.888239 vgs[80880] device_mapper/libdm-config.c:1013  metadata/lvs_history_retention_time not found in config: defaulting to 0
14:32:53.888245 vgs[80880] metadata/pv_manip.c:414  /dev/sdd3 0:      0  12543: ubuntu-lv(0:0)
14:32:53.888267 vgs[80880] metadata/pv_manip.c:414  /dev/sdd3 1:  12543  12544: NULL(0:0)
14:32:53.888277 vgs[80880] device/dev-io.c:93  /dev/sdd3: using cached size 205514752 sectors
14:32:53.888302 vgs[80880] toollib.c:1931  Running command for VG ubuntu-vg JAZMd0-k8Qx-tdBU-X33K-VYWH-64nk-CAyc8K
14:32:53.888782 vgs[80880] metadata/vg.c:79  Freeing VG ubuntu-vg at 0x5566f78494d0.
14:32:53.888811 vgs[80880] mm/memlock.c:597  Unlock: Memlock counters: prioritized:0 locked:0 critical:0 daemon:0 suspended:0
14:32:53.888837 vgs[80880] activate/fs.c:492  Syncing device names
14:32:53.888864 vgs[80880] misc/lvm-flock.c:84  Unlocking /run/lock/lvm/V_ubuntu-vg
14:32:53.888873 vgs[80880] misc/lvm-flock.c:47  _undo_flock /run/lock/lvm/V_ubuntu-vg
14:32:53.888890 vgs[80880] metadata/vg.c:79  Freeing VG ubuntu-vg at 0x5566f78454c0.
14:32:53.888914 vgs[80880] toollib.c:1901  Processing VG BlockStorageVG nxre4N-nWXp-8WkM-W2C1-Dtfb-BTtW-etMkOh
14:32:53.888940 vgs[80880] misc/lvm-flock.c:229  Locking /run/lock/lvm/V_BlockStorageVG RB
14:32:53.888946 vgs[80880] misc/lvm-flock.c:113  _do_flock /run/lock/lvm/V_BlockStorageVG:aux WB
14:32:53.888962 vgs[80880] misc/lvm-flock.c:47  _undo_flock /run/lock/lvm/V_BlockStorageVG:aux
14:32:53.888972 vgs[80880] misc/lvm-flock.c:113  _do_flock /run/lock/lvm/V_BlockStorageVG RB
14:32:53.888984 vgs[80880] metadata/metadata.c:4697  Reading VG BlockStorageVG nxre4NnWXp8WkMW2C1DtfbBTtWetMkOh
14:32:53.888993 vgs[80880] format_text/format-text.c:195  Reading mda header sector from /dev/sdb1 at 4096
14:32:53.889537 vgs[80880] metadata/metadata.c:4666  rescan skipped - unchanged offset 7680 checksum cccc8208
14:32:53.889577 vgs[80880] metadata/metadata.c:4847  Reading VG BlockStorageVG metadata from /dev/sdb1 4096
14:32:53.889583 vgs[80880] format_text/format-text.c:195  Reading mda header sector from /dev/sdb1 at 4096
14:32:53.889591 vgs[80880] format_text/format-text.c:329  VG BlockStorageVG metadata check /dev/sdb1 mda 4096 slot0 offset 7680 size 1440
14:32:53.889616 vgs[80880] format_text/import.c:153  Reading metadata from /dev/sdb1 at 11776 size 1440 (+0)
14:32:53.889677 vgs[80880] metadata/vg.c:64  Allocated VG BlockStorageVG at 0x5566f78454c0.
14:32:53.889797 vgs[80880] format_text/import_vsn1.c:610  Importing logical volume BlockStorageVG/BlockStorageLV.
14:32:53.889819 vgs[80880] format_text/format-text.c:495  Found metadata on /dev/sdb1 at 11776 size 1440 for VG BlockStorageVG
14:32:53.889842 vgs[80880] metadata/metadata.c:4847  Reading VG BlockStorageVG metadata from /dev/sdc1 4096
14:32:53.889849 vgs[80880] format_text/format-text.c:195  Reading mda header sector from /dev/sdc1 at 4096
14:32:53.889859 vgs[80880] format_text/format-text.c:329  VG BlockStorageVG metadata check /dev/sdc1 mda 4096 slot0 offset 2048 size 1440
14:32:53.889867 vgs[80880] format_text/import.c:153  Reading metadata from /dev/sdc1 at 6144 size 1440 (+0)
14:32:53.889879 vgs[80880] format_text/import.c:174  Skipped parsing metadata on /dev/sdc1
14:32:53.889883 vgs[80880] format_text/format-text.c:495  Found metadata on /dev/sdc1 at 6144 size 1440 for VG BlockStorageVG
14:32:53.889910 vgs[80880] cache/lvmcache.c:1833  lvmcache_update_vg BlockStorageVG for info /dev/sdb1
14:32:53.889919 vgs[80880] cache/lvmcache.c:1833  lvmcache_update_vg BlockStorageVG for info /dev/sdc1
14:32:53.889948 vgs[80880] device_mapper/libdm-config.c:1013  metadata/lvs_history_retention_time not found in config: defaulting to 0
14:32:53.889957 vgs[80880] metadata/pv_manip.c:414  /dev/sdb1 0:      0 953599: BlockStorageLV(0:0)
14:32:53.889962 vgs[80880] metadata/pv_manip.c:414  /dev/sdc1 0:      0  59391: BlockStorageLV(953599:0)
14:32:53.889989 vgs[80880] device/dev-io.c:117  /dev/sdb1: size is 7811891133 sectors
14:32:53.889995 vgs[80880] device/dev-io.c:117  /dev/sdc1: size is 486537216 sectors
14:32:53.890002 vgs[80880] toollib.c:1931  Running command for VG BlockStorageVG nxre4N-nWXp-8WkM-W2C1-Dtfb-BTtW-etMkOh
14:32:53.890450 vgs[80880] metadata/vg.c:79  Freeing VG BlockStorageVG at 0x5566f78494d0.
14:32:53.890479 vgs[80880] mm/memlock.c:597  Unlock: Memlock counters: prioritized:0 locked:0 critical:0 daemon:0 suspended:0
14:32:53.890485 vgs[80880] activate/fs.c:492  Syncing device names
14:32:53.890491 vgs[80880] misc/lvm-flock.c:84  Unlocking /run/lock/lvm/V_BlockStorageVG
14:32:53.890495 vgs[80880] misc/lvm-flock.c:47  _undo_flock /run/lock/lvm/V_BlockStorageVG
14:32:53.890510 vgs[80880] metadata/vg.c:79  Freeing VG BlockStorageVG at 0x5566f78454c0.
14:32:53.890534 vgs[80880] toollib.c:1901  Processing VG ObjectStorageVG DyOHcZ-YxTy-AJ0q-YAta-sH8E-ZepZ-gNwkOY
14:32:53.890542 vgs[80880] misc/lvm-flock.c:229  Locking /run/lock/lvm/V_ObjectStorageVG RB
14:32:53.890549 vgs[80880] misc/lvm-flock.c:113  _do_flock /run/lock/lvm/V_ObjectStorageVG:aux WB
14:32:53.890563 vgs[80880] misc/lvm-flock.c:47  _undo_flock /run/lock/lvm/V_ObjectStorageVG:aux
14:32:53.890593 vgs[80880] misc/lvm-flock.c:113  _do_flock /run/lock/lvm/V_ObjectStorageVG RB
14:32:53.890606 vgs[80880] metadata/metadata.c:4697  Reading VG ObjectStorageVG DyOHcZYxTyAJ0qYAtasH8EZepZgNwkOY
14:32:53.890615 vgs[80880] format_text/format-text.c:195  Reading mda header sector from /dev/sda1 at 4096
14:32:53.891158 vgs[80880] metadata/metadata.c:4666  rescan skipped - unchanged offset 1536 checksum 297f1ae7
14:32:53.891193 vgs[80880] metadata/metadata.c:4847  Reading VG ObjectStorageVG metadata from /dev/sda1 4096
14:32:53.891198 vgs[80880] format_text/format-text.c:195  Reading mda header sector from /dev/sda1 at 4096
14:32:53.891206 vgs[80880] format_text/format-text.c:329  VG ObjectStorageVG metadata check /dev/sda1 mda 4096 slot0 offset 1536 size 1159
14:32:53.891230 vgs[80880] format_text/import.c:153  Reading metadata from /dev/sda1 at 5632 size 1159 (+0)
14:32:53.891269 vgs[80880] metadata/vg.c:64  Allocated VG ObjectStorageVG at 0x5566f78454c0.
14:32:53.891303 vgs[80880] format_text/import_vsn1.c:610  Importing logical volume ObjectStorageVG/ObjectStorageLV.
14:32:53.891322 vgs[80880] format_text/format-text.c:495  Found metadata on /dev/sda1 at 5632 size 1159 for VG ObjectStorageVG
14:32:53.891348 vgs[80880] cache/lvmcache.c:1833  lvmcache_update_vg ObjectStorageVG for info /dev/sda1
14:32:53.891379 vgs[80880] device_mapper/libdm-config.c:1013  metadata/lvs_history_retention_time not found in config: defaulting to 0
14:32:53.891388 vgs[80880] metadata/pv_manip.c:414  /dev/sda1 0:      0 953599: ObjectStorageLV(0:0)
14:32:53.891395 vgs[80880] device/dev-io.c:117  /dev/sda1: size is 7811891133 sectors
14:32:53.891419 vgs[80880] toollib.c:1931  Running command for VG ObjectStorageVG DyOHcZ-YxTy-AJ0q-YAta-sH8E-ZepZ-gNwkOY
14:32:53.891856 vgs[80880] metadata/vg.c:79  Freeing VG ObjectStorageVG at 0x5566f78494d0.
14:32:53.891884 vgs[80880] mm/memlock.c:597  Unlock: Memlock counters: prioritized:0 locked:0 critical:0 daemon:0 suspended:0
14:32:53.891926 vgs[80880] activate/fs.c:492  Syncing device names
14:32:53.891940 vgs[80880] misc/lvm-flock.c:84  Unlocking /run/lock/lvm/V_ObjectStorageVG
14:32:53.891964 vgs[80880] misc/lvm-flock.c:47  _undo_flock /run/lock/lvm/V_ObjectStorageVG
14:32:53.892000 vgs[80880] metadata/vg.c:79  Freeing VG ObjectStorageVG at 0x5566f78454c0.
14:32:53.892030 vgs[80880] device_mapper/libdm-config.c:1085  report/compact_output not found in config: defaulting to 0
14:32:53.892042 vgs[80880] device_mapper/libdm-report.c:4221  VG              Attr   Ext   #PV #LV #SN VSize   VFree  VG UUID                                VProfile
14:32:53.892071 vgs[80880] device_mapper/libdm-report.c:4684  BlockStorageVG  wz--n- 4.00m   2   1   0   3.86t     0  nxre4N-nWXp-8WkM-W2C1-Dtfb-BTtW-etMkOh
14:32:53.892097 vgs[80880] device_mapper/libdm-report.c:4684  ObjectStorageVG wz--n- 4.00m   1   1   0  <3.64t     0  DyOHcZ-YxTy-AJ0q-YAta-sH8E-ZepZ-gNwkOY
14:32:53.892122 vgs[80880] device_mapper/libdm-report.c:4684  ubuntu-vg       wz--n- 4.00m   1   1   0 <98.00g 49.00g JAZMd0-k8Qx-tdBU-X33K-VYWH-64nk-CAyc8K
14:32:53.892146 vgs[80880] misc/lvm-flock.c:84  Unlocking /run/lock/lvm/P_global
14:32:53.892157 vgs[80880] misc/lvm-flock.c:47  _undo_flock /run/lock/lvm/P_global
14:32:53.892172 vgs[80880] cache/lvmcache.c:2091  Destroy lvmcache content
14:32:53.925891 vgs[80880] lvmcmdline.c:3168  Completed: vgs -vvvv

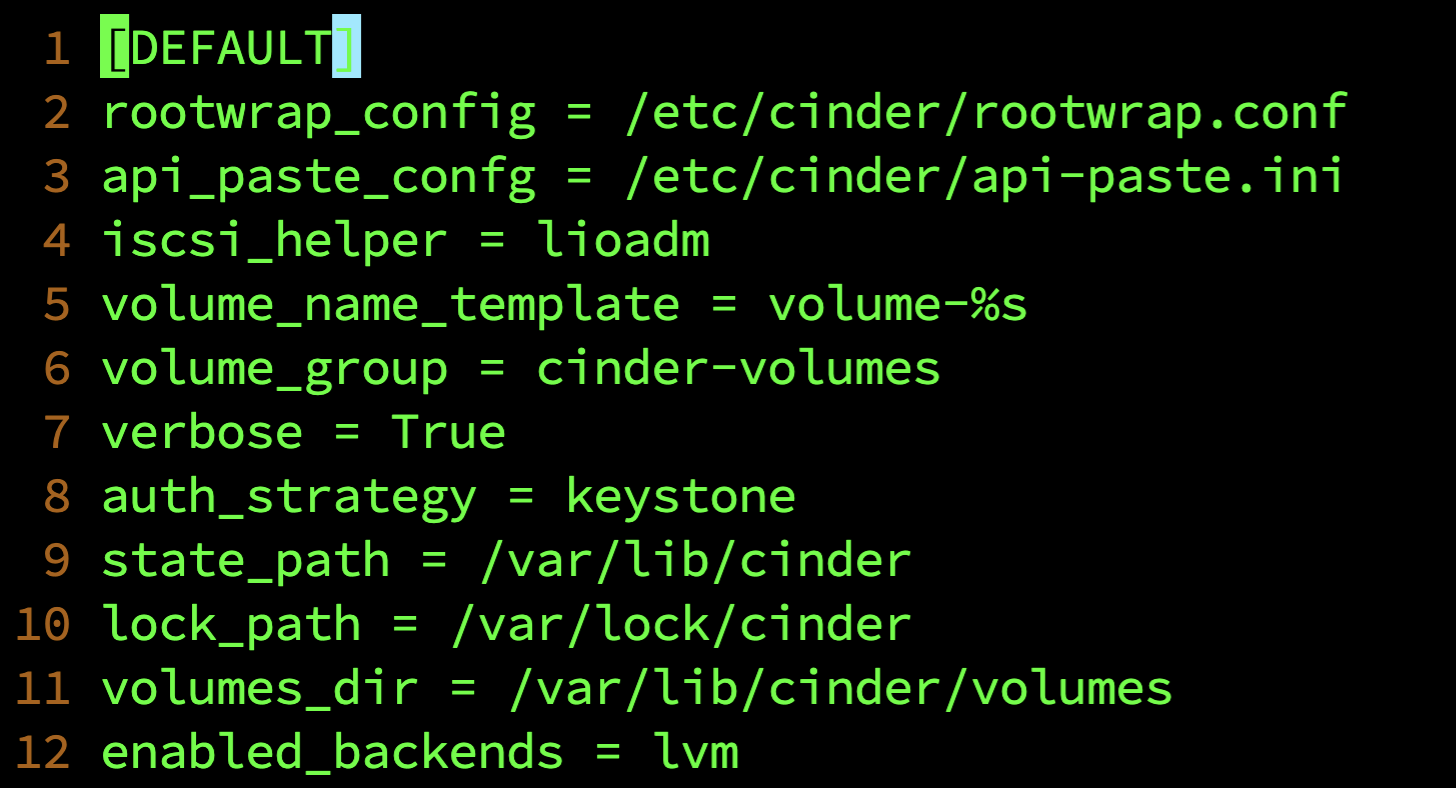

vim /etc/cinder/cinder.conf [DEFAULT] 변경 전

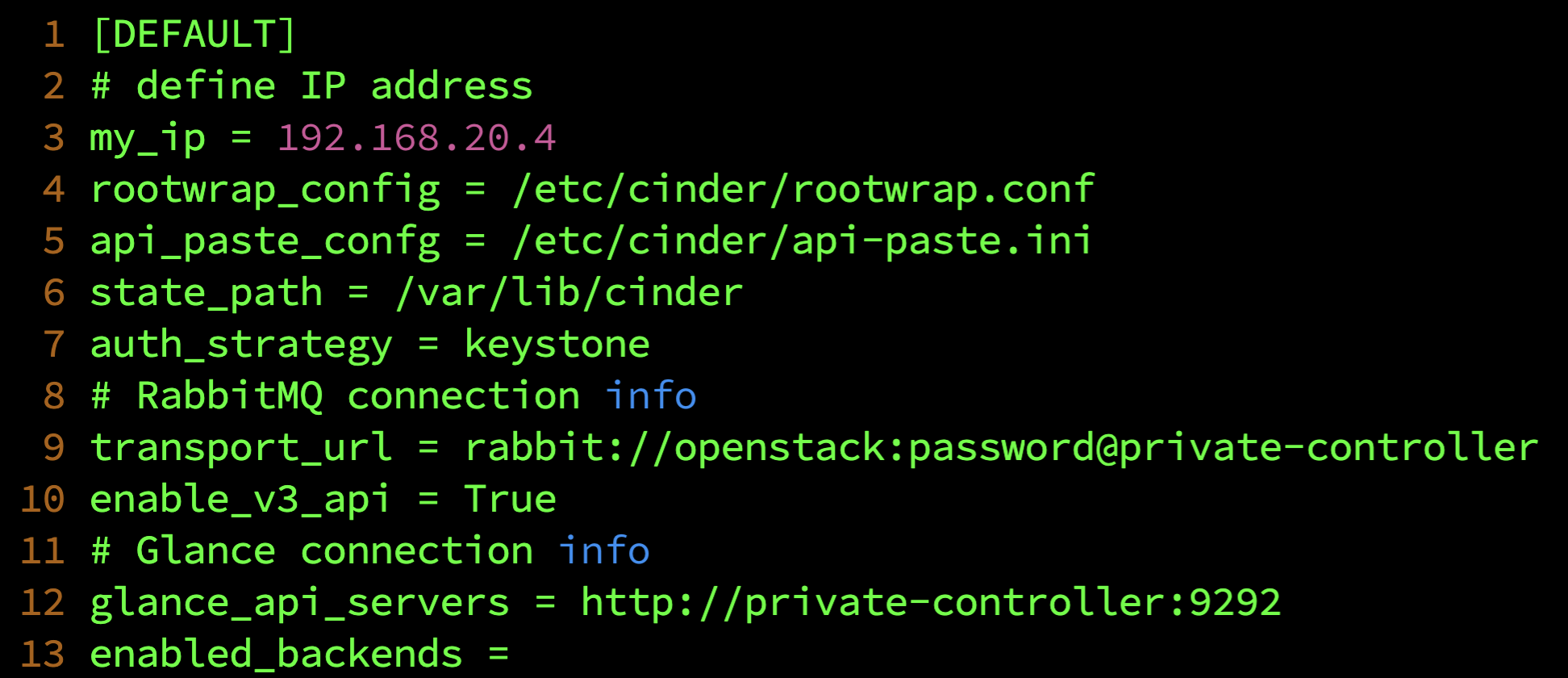

vim /etc/cinder/cinder.conf [DEFAULT] 변경 뒤

3번째 줄에 IP는 블록 스토리지 노드의 IP를 적어주면 되고, (현재 구성은 컴퓨트 노드)
9번째 줄 password는 RabbitMQ 구성 시 생성한 비밀번호를 입력해 주면 됩니다.

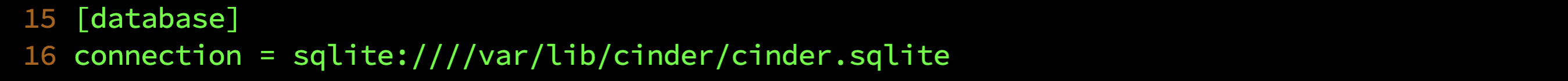

vim /etc/cinder/cinder.conf [database] 변경 전

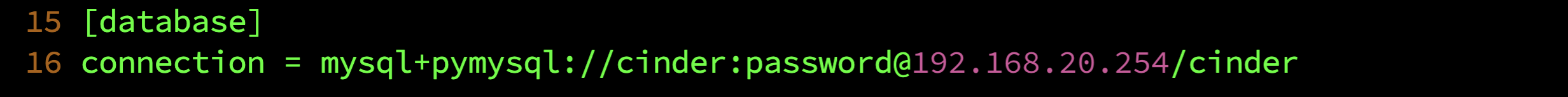

vim /etc/cinder/cinder.conf [database] 변경 뒤

위의 password 부분은 DB 계정의 암호를 입력해 주면 돼요.

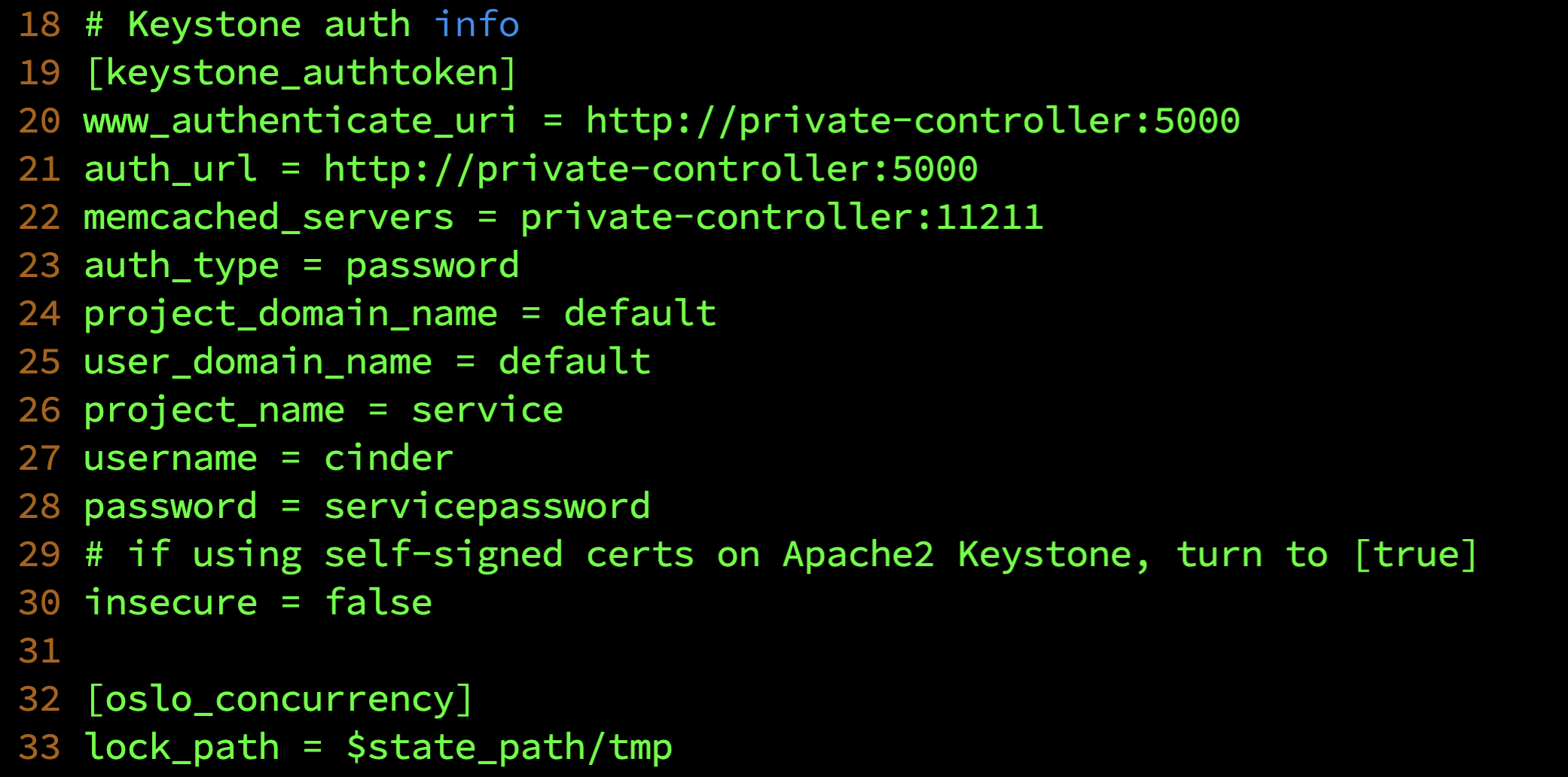

vim /etc/cinder/cinder.conf [keystone_authtokne], [oslo_concurrency] 생성

28번째 줄 servicepassword는 컨트롤러 노드에서 Keystone에 cinder 계정 생성 시 입력했던 암호를 입력해 주면 돼요.


여기까지 되었다면 저장하고 나옵니다.

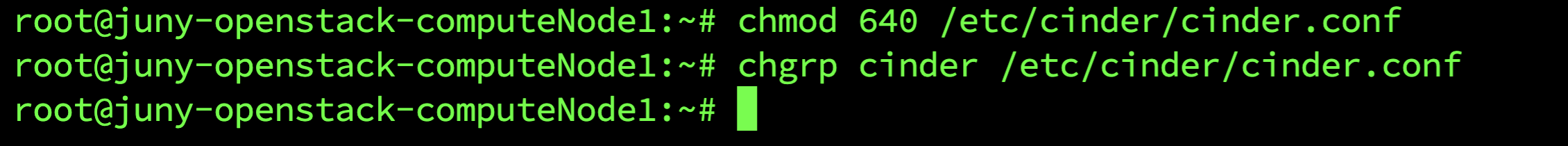

chmod 640 /etc/cinder/cinder.conf; chgrp cinder /etc/cinder/cinder.conf

그런 뒤 설정 파일의 권한과 소유 그룹을 변경해 줍니다.

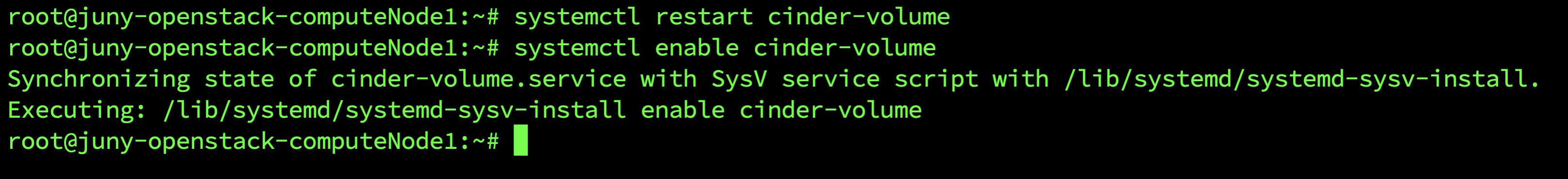

systemctl restart cinder-volume; systemctl enable cinder-volume

이제 cinder-volume 데몬을 재기동하고, 서비스에 등록해 주면 돼요.







       📦 LVM 구성 - 컴퓨트 노드 (블록 스토리지 노드)

이제 스토리지로 사용할 HDD에 대한 설정을 해줘야 하는 부분이에요.

참고로 주니는 미리 LV까지 만들었는데, 메뉴얼에는 VG까지만 만들고, 해당 VG에 Extent(익스텐트) 크기를 32MB로 지정해 주는 걸로 나와서 VG, LV를 삭제하고, VG를 다시 구성해 볼게요.

최초 LV부터 삭제합니다.

lvdisplay

위 LV를 삭제할거에요.

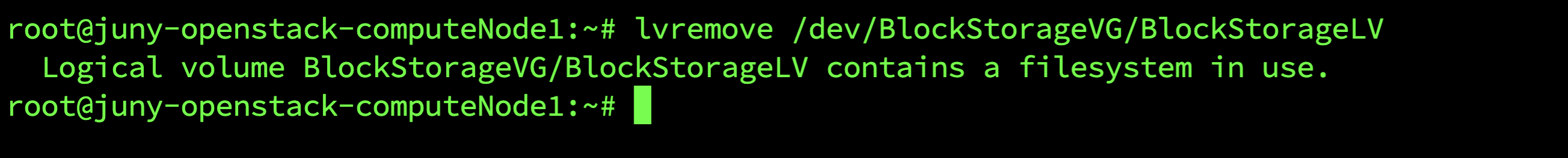

lvremove /dev/{VG 이름}/{LV 이름}

만약 위와 같이 사용중이라고 나온다면 마운트 해제를 하지 않아서 발생한 문제에요.

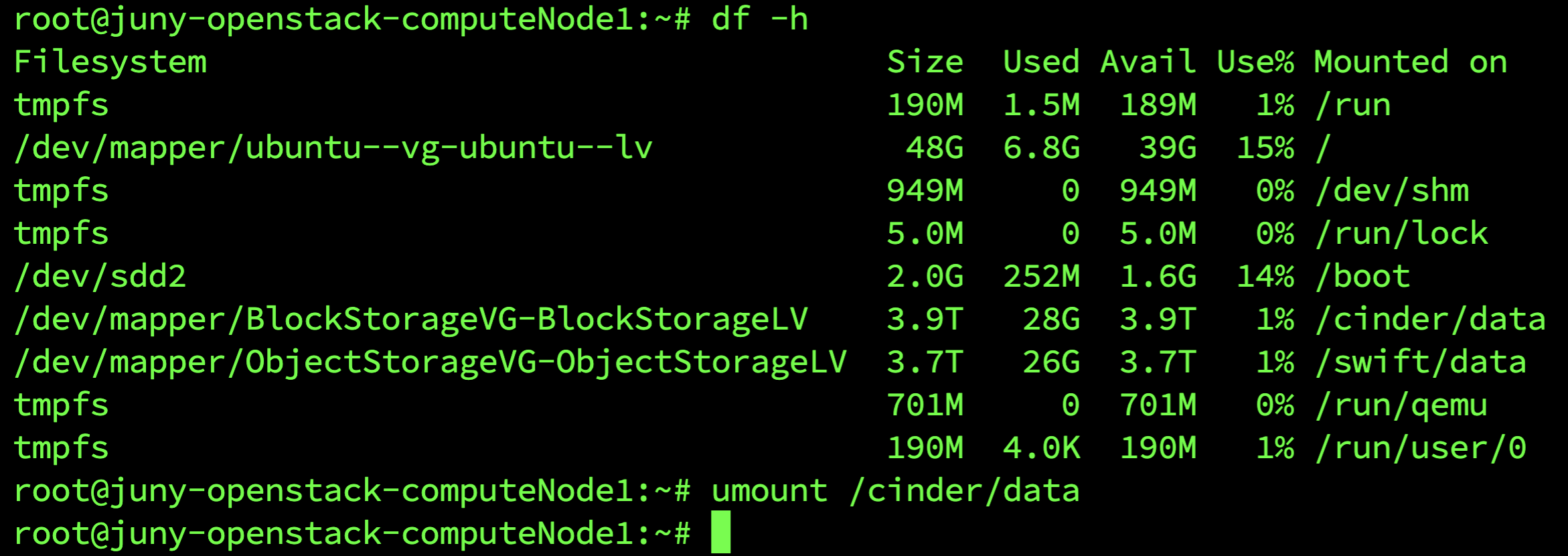

umount {경로}

위와 같이 LV가 마운트된 디렉터리를 마운트 해제 해 줄 수 있어요.

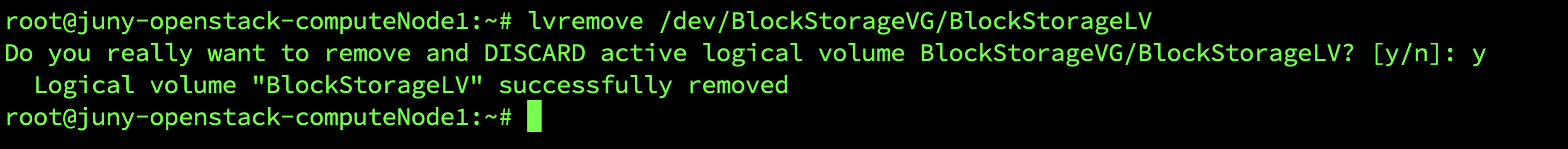

lvremove /dev/{VG 이름}/{LV 이름}

이렇게 하면 LV를 삭제할 수 있어요.



이번에는 VG를 삭제하고 다시 구성해 볼게요.

vgs

위의 BlockStorageVG를 삭제하고 다시 만들거에요.

참고로 해당 VG에는 두 개의 PV가 물려 있기 때문에 이 작업을 다시 해줘야 해요.

즉, 하나의 VG에 두 개의 PV를 물리게 해서 구성해 주어야 하는데, 이 부분은 이 곳을 참고해 주시면 좋을 거 같아요.

vgremove {VG 이름}

위와 같이 VG를 삭제해 주었어요.

pvs

sdb1과 sdc1 PV를 VG에 추가하여 구성해 볼게요.

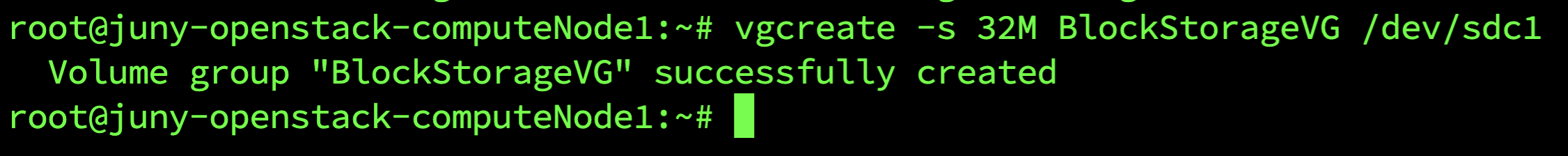

vgcreate -s 32M {VG 이름} {PV 장치명}

위와 같이 VG를 만드는데, 32MB 익스텐트 크기를 지정해 주었어요.

32MB 익스텐트를 사용하면 논리 볼륨을 적절한 크기로 분할하고, 관리할 수 있고,
작은 파일부터 큰 파일까지 다양한 크기의 데이터를 효과적으로 다룰 수 있어요.

LVM을 사용하는 시스템에서는 익스텐트 크기를 조정할 수 있지만, 한번 설정한 크기는 일반적으로 변경하기 어려워요.



💡 LVM의 Extent
Extent는 LVM(논리 볼륨 매니저)에서 사용되는 단위로 논리 볼륨 관리의 중요한 역할.

1. 크기: 익스텐트는 고정 크기의 블록 단위. 예를 들어 32MB 크기의 익스텐트는 32MB 크기로 고정.
2. 할당: 논리 볼륨을 만들거나, 확장할 때, 익스텐트 단위로 공간을 할당하거나 해제. 해당 내용은 데이터의 조각을 다루는 방식으로 더 큰 논리 볼륨을 만들고, 필요한 만큼의 익스텐트를 할당하거나, 해제하여 공간을 효율적으로 관리하기 위하여 사용.
3. 일관성: 익스텐트 크기는 모든 논리 볼륨에서 동일하며, 이는 데이터 일관성 보장.

반응형

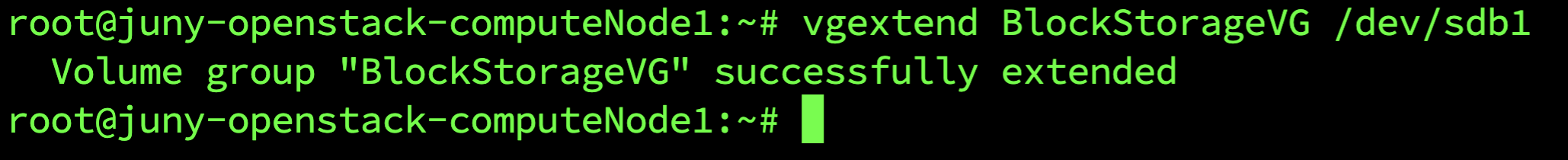

vgextend BlockStorageVG {PV 장치 명}

그리고 위와 같이 다른 PV를 추가해 주었어요.

vgs







       📦 패키지 설치 및 초기 구성 - 컴퓨트 노드 (블록 스토리지 노드)

apt install -y targetcli-fb python3-rtslib-fb

최초 위와 같이 패키지를 설치해 주었어요.

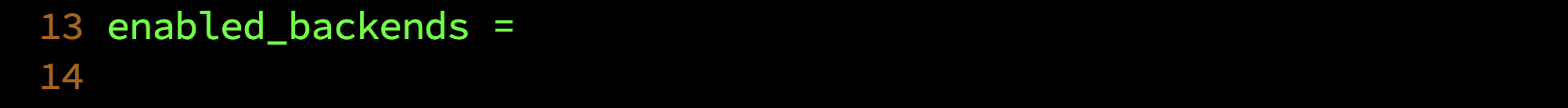

vim /etc/cinder/cinder.conf enabled_backends 부분 변경 전

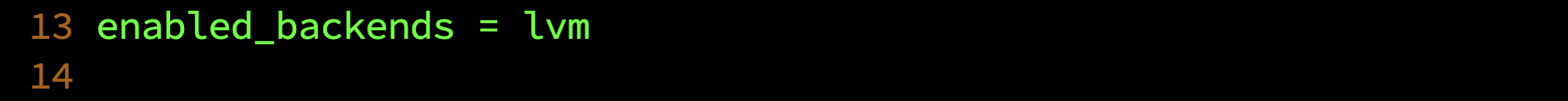

vim /etc/cinder/cinder.conf enabled_backends 부분 변경 뒤

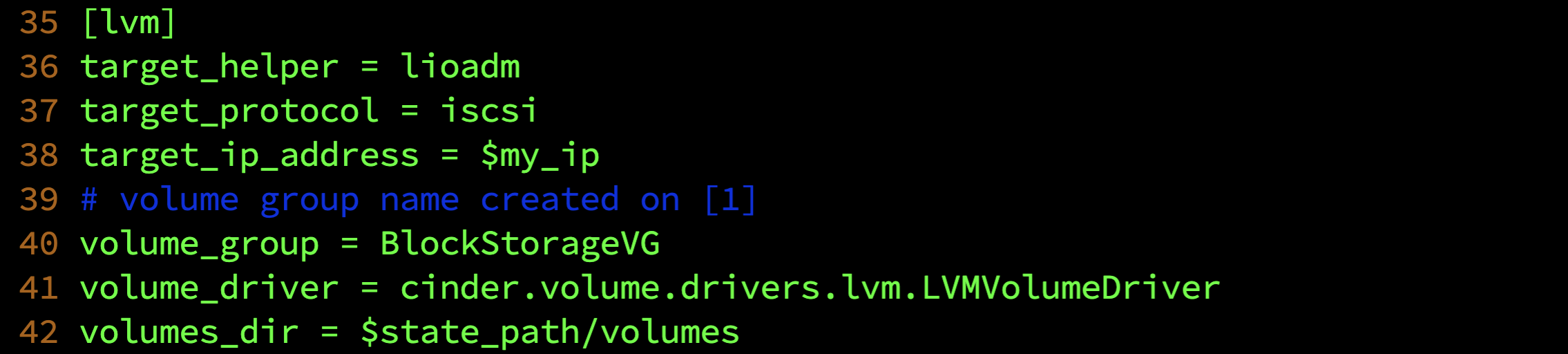

vim /etc/cinder/cinder.conf [lvm] 생성

여기서 LVM 설정 관련한 내용을 추가해 주는데, 40번째 줄에는 위에서 만든 VG의 이름을 넣어주어야 해요.


여기까지 했다면 저장하고, 나옵니다.

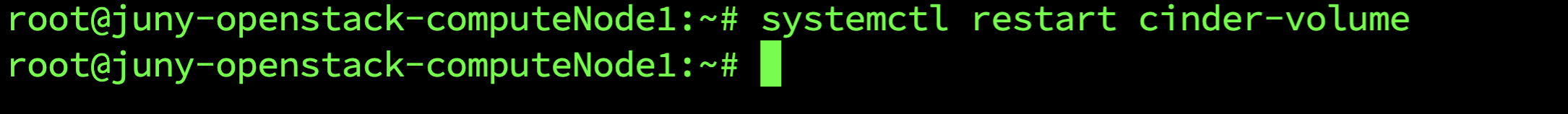

systemctl restart cinder-volume

그런 뒤 데몬을 재기동해 주었어요.

       📦 초기 구성 - 컴퓨트 노드

만약 블록 스토리지 노드와 컴퓨트 노드가 분리되어 있다면 이 부분은 컴퓨트 노드에서 진행해야 해요.

주니는 블록 스토리지 노드가 컴퓨트 노드이기 때문에 동일한 곳에서 진행합니다.

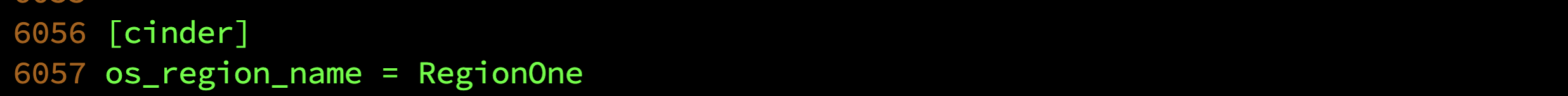

vim /etc/nova/nova.conf [cinder] 생성

위 내용을 맨 밑에 추가해 주었어요.

여기까지 되었다면 저장하고, 나옵니다.

systemctl restart nova-compute

그런 뒤 노바 컴퓨트 데몬을 재 기동 해 주었어요.



       📦 볼륨 생성 - 컨트롤러 노드

이제 각 인스턴스에 볼륨을 추가할 계정으로 로그인하고, 10GB의 가상 볼륨을 생성해 보려고 해요.
어느 노드에서 작업해도 되지만, 주니는 컨트롤러 노드에서 작업해 보았어요.

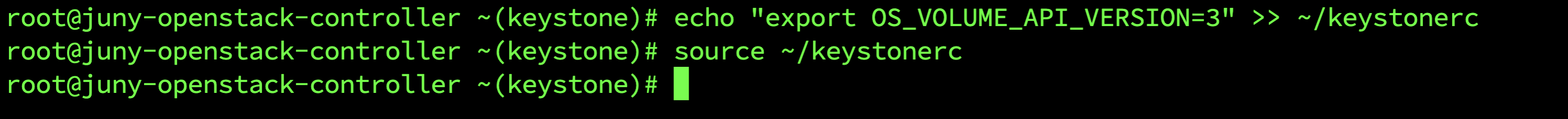

echo "export OS_VOLUME_API_VERSION=3" >> ~/keystonerc; source ~/keystonerc

작업 전 환경 변수 설정을 해 주었어요.

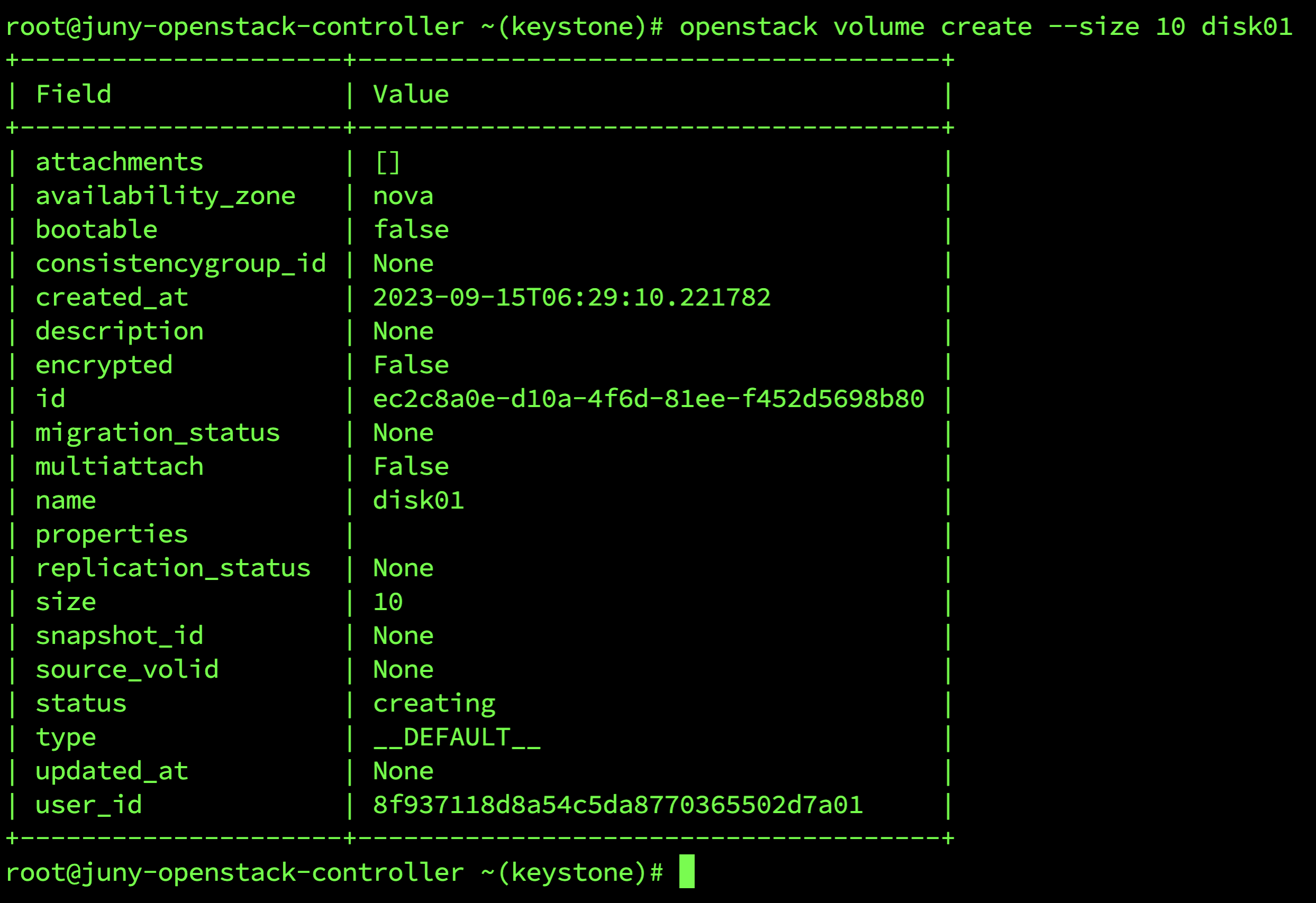

openstack volume create --size 10 disk01

위 명령어로 10GB짜리 가상 볼륨을 만들어 줄 수 있어요.

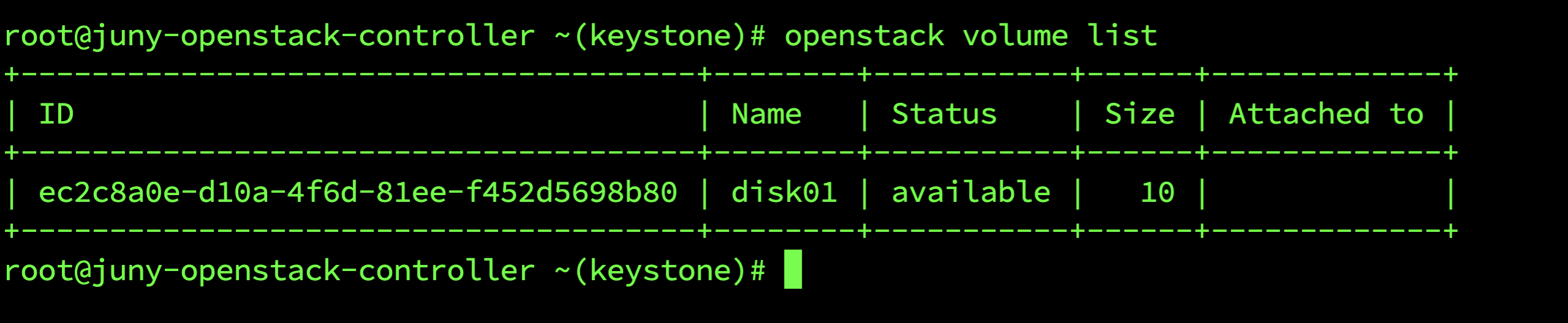

openstack volume list

볼륨 목록도 잘 나오는 걸 확인할 수 있어요.







       📦 잘 구성 되었나? 🤔

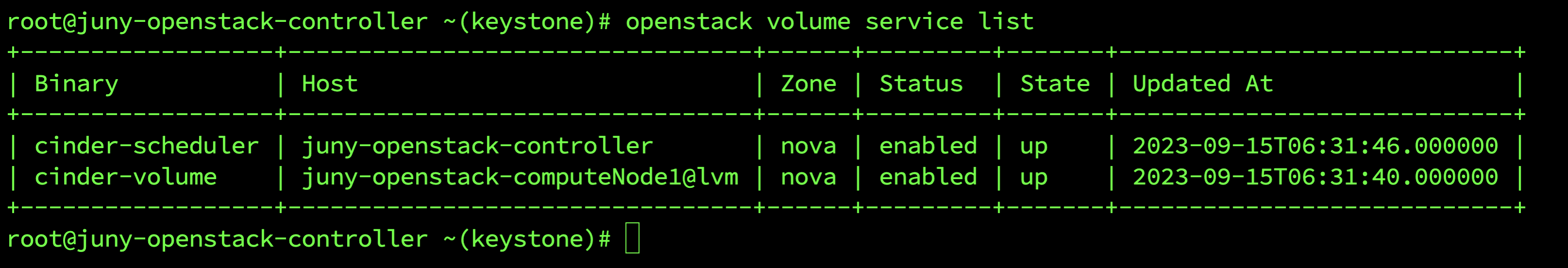

openstack volume service list

위와 같이 볼륨 서비스 목록에 정상적으로 출력이 되고, State가 up이면 잘 구성한 것이에요.











Openstack Essentials Second Edition Paperback

"이 포스팅은 쿠팡 파트너스 활동의 일환으로, 이에 따른 일정액의 수수료를 제공받습니다."







🧐 참고 자료

OpenStack Docs: Block 스토리지 서비스

Ubuntu 22.04 LTS : OpenStack Zed : Cinder Storage (LVM) : Server World
